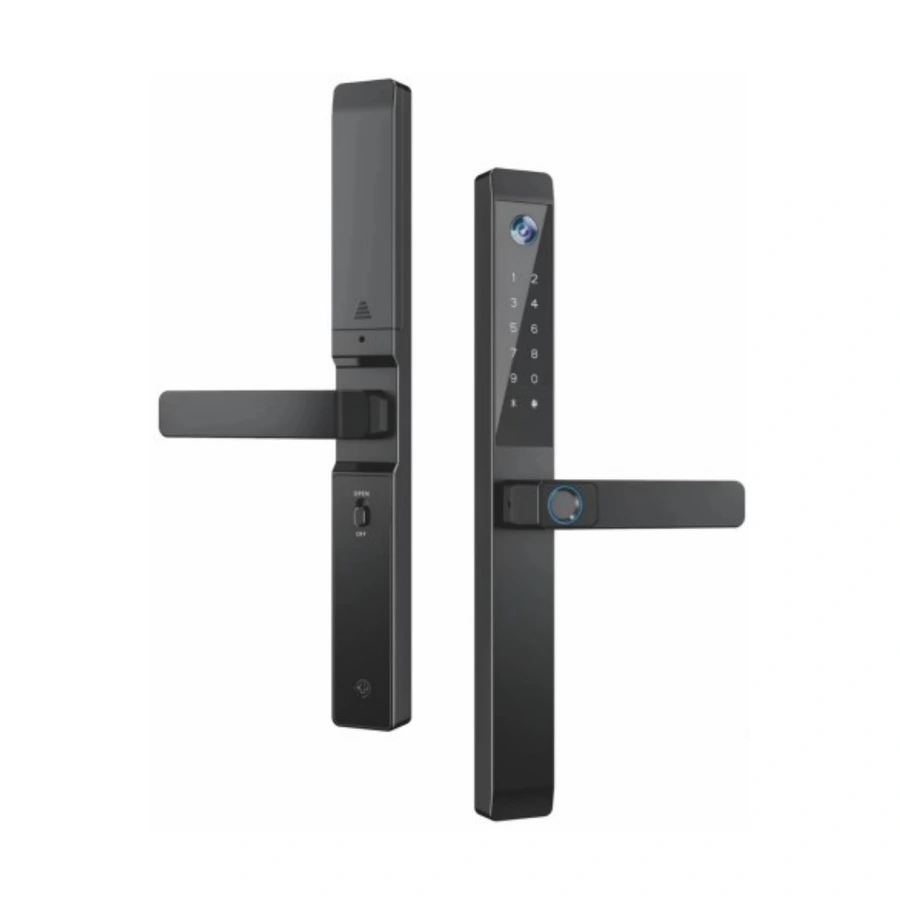

H-08 Aluminum Door Smart Lock

Name: H-08 Aluminum Door Smart Lock
Brand: GwayLock

Narrow 36 mm lever panel from the thermal-break aluminum-door series; confirm the stile, lock body, battery compartment and camera configuration for the installation.

Request a Quote Talk on WhatsApp

Email about H-08 Download 2026 Indoor & Project Catalogue

Catalogue access

Fingerprint, Passcode, RF card

App option

Basic configuration / Camera configuration / Tuya (Wi-Fi; confirm configuration). Select one configuration; availability must be confirmed.

Power

Alkaline dry batteries (size and quantity to be confirmed)

Door thickness

40–120 mm

Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.

Key Features

Fingerprint access listed for this model
Passcode access listed for this model
RF card access listed for this model
Mechanical key access listed for this model
Tempered-glass touch panel
Dual verification configuration
USB emergency power
Sample available for testing and evaluation

Suitable Applications

Aluminum-door project (confirm installation)
Residential project

OEM/ODM Options

Logo
Finish
Packaging (confirm model and order requirements)

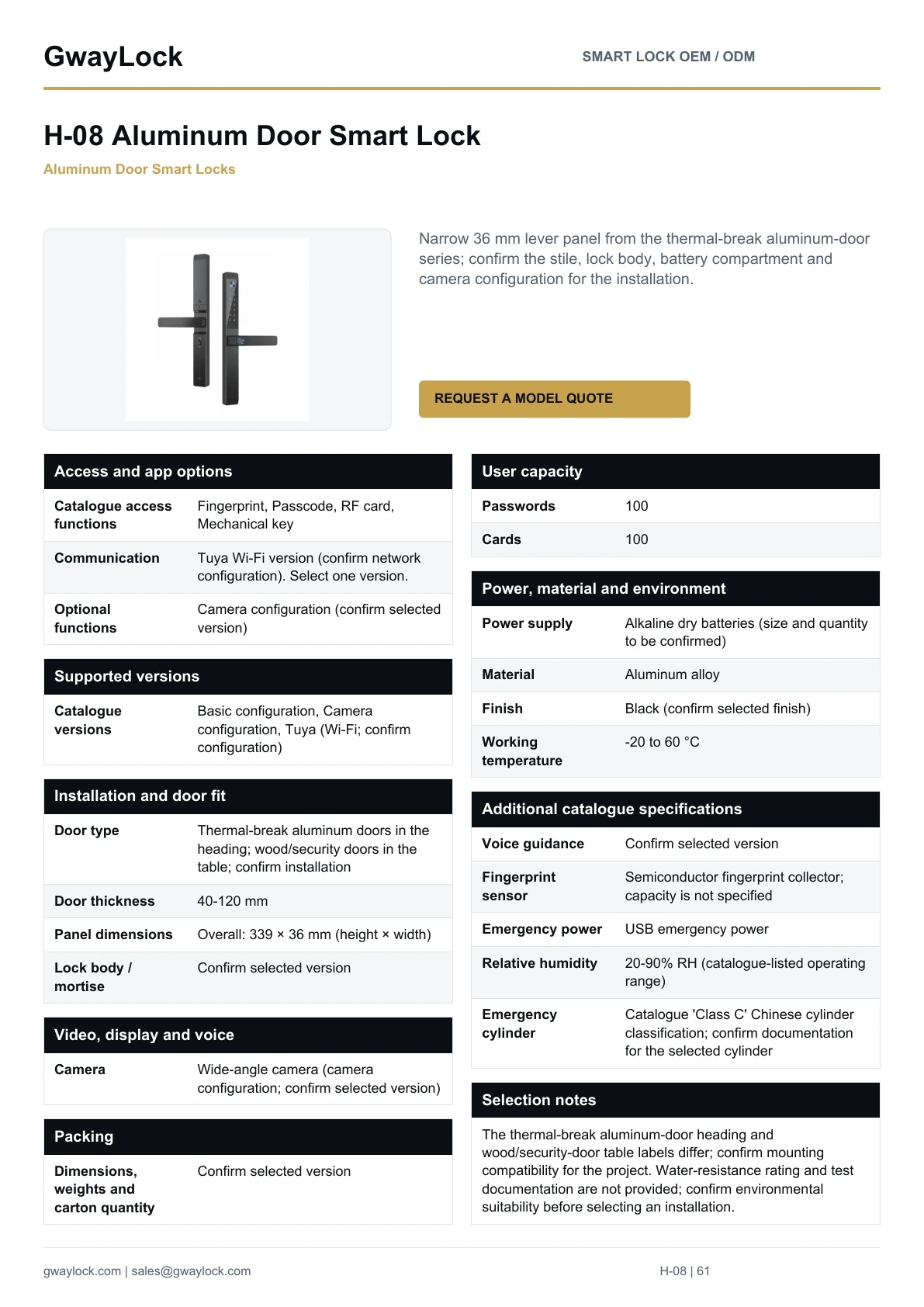

Catalogue specifications

H-08 model specifications

Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.

Access and app options
Model	H-08
Product type	Aluminum door
Catalogue access functions	Fingerprint, Passcode, RF card, Mechanical key
App option	Basic configuration / Camera configuration / Tuya (Wi-Fi; confirm configuration). Select one configuration; availability must be confirmed.
Communication	Tuya Wi-Fi version (confirm network configuration). Select one version.
Optional functions	Camera configuration (confirm selected version)

Supported versions
App versions	Tuya
Catalogue versions	Basic configuration, Camera configuration, Tuya (Wi-Fi; confirm configuration)

User capacity
Passwords	100
Cards	100

Power, material and environment
Power supply	Alkaline dry batteries (size and quantity to be confirmed)
Material	Aluminum alloy
Finish	Black (confirm selected finish)
Working temperature	−20 to 60 °C

Installation and door fit
Door type	Thermal-break aluminum doors in the heading; wood/security doors in the table; confirm installation
Door thickness	40–120 mm
Panel dimensions	Overall: 339 × 36 mm (height × width)
Lock body / mortise	Confirm selected version

Video, display and voice
Camera	Wide-angle camera (camera configuration; confirm selected version)

Additional catalogue specifications
Voice guidance	Confirm selected version
Fingerprint sensor	Semiconductor fingerprint collector; capacity is not specified
Emergency power	USB emergency power
Relative humidity	20–90% RH (catalogue-listed operating range)
Emergency cylinder	Catalogue 'Class C' Chinese cylinder classification; confirm documentation for the selected cylinder

Packing
Box dimensions	Confirm selected version
Box weight	Confirm selected version
Carton dimensions	Confirm selected version
Units per carton	Confirm selected version
Carton weight	Confirm selected version

Procurement
Certification	CE / FCC / RoHS available depending on selected model.
MOQ	Varies by model and customization
Lead time	Sample and bulk lead time confirmed by order details

Catalogue notes

Voice languages, fingerprint capacity, lock-body dimensions and packing are not specified; confirm the selected version before sampling.
Camera resolution and display size are not specified. Confirm the Tuya configuration and network requirements.
The cylinder label is a Chinese classification; confirm the applicable test documentation for the target market.
Basic and camera configurations are shown separately. Confirm camera, display and app functions on the selected configuration.
The source specifies alkaline dry batteries without size or quantity; confirm the battery compartment.
The thermal-break aluminum-door heading and wood/security-door table labels differ; confirm mounting compatibility for the project.
Water-resistance rating and test documentation are not provided; confirm environmental suitability before selecting an installation.

OEM/ODM Support

Build this model for your brand or project channel

GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.

Logo and private label packaging

Model-specific app and wireless configuration

Sample testing before bulk order

Export documents and QC support

FAQ

Which H-08 configuration should I request?

The source lists Basic configuration, Camera configuration, Tuya (Wi-Fi; confirm configuration). These are version choices; confirm the exact access, app and network configuration for the sample.

What should I confirm before ordering H-08?

Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 40–120 mm; evaluate a sample on the intended door before a bulk order.
