RS01D catalogue reference
RS01D · Aluminum Door Smart Locks

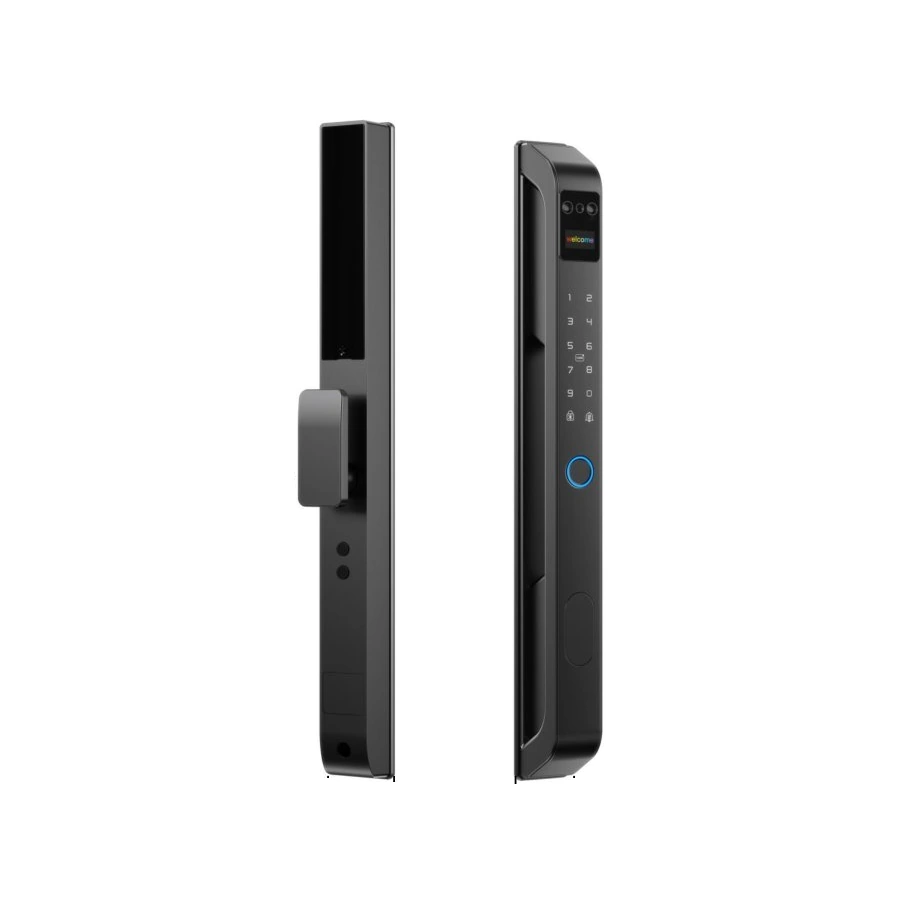

RS01D Aluminum Door Smart Lock
A slim-panel model for thermal-break aluminum doors, powered by four AA batteries. Check the mortise, door stile and selected access configuration before sampling.
Catalogue access
Fingerprint, Passcode, RF card
App option
Tuya option — confirm selected version
Power
4 × AA alkaline batteries
Door thickness
40–120 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- Fingerprint, passcode, card and key access listed in the catalogue
- 4 × AA alkaline batteries
- Spray-painted finish
Suitable Applications
- Residential home
- Apartment
- Rental property
- Office
- Hotel room doors (confirm system requirements)
OEM/ODM Options
- Logo
- Finish
- Packaging
- Selected app and function configuration

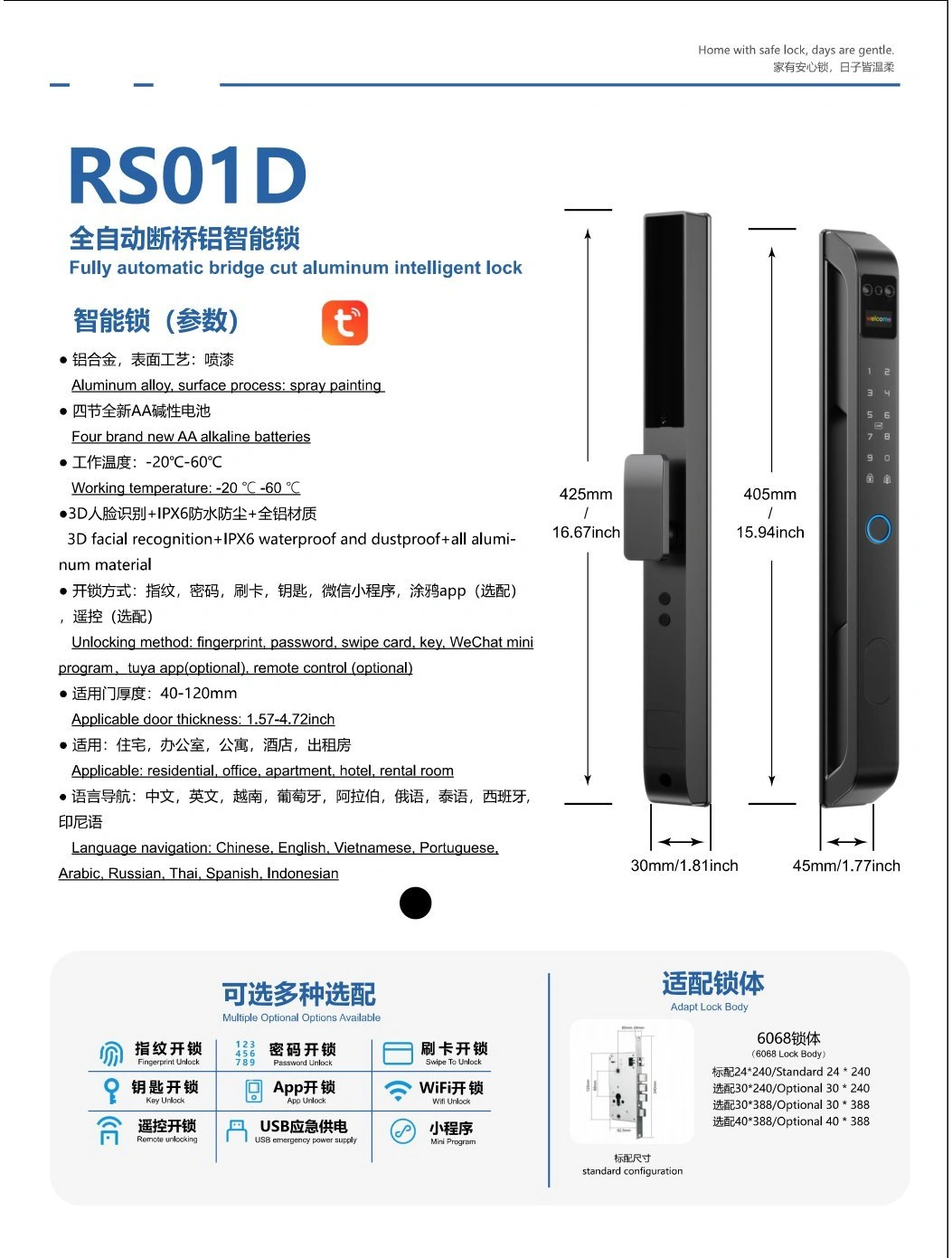

Catalogue specifications
RS01D model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | RS01D |
|---|---|
| Product type | Aluminum door |
| Catalogue access functions | Fingerprint, Passcode, RF card, Mechanical key |
| App option | Tuya option — confirm selected version |
| Communication | Wi-Fi option shown in the catalogue; confirm the ordered wireless configuration |
| Optional functions | Tuya App configuration, Wi-Fi configuration (confirm selected version), WeChat mini-program access (confirm selected version), USB emergency power (confirm selected version), Remote control option, 3D face recognition configuration (confirm selected version) |
| Power supply | 4 × AA alkaline batteries |
|---|---|
| Material | Aluminum alloy |
| Finish | Spray-painted finish |
| Working temperature | −20 to 60 °C |
| Door type | Thermal-break aluminum doors; confirm stile and mortise fit |
|---|---|
| Door thickness | 40–120 mm |

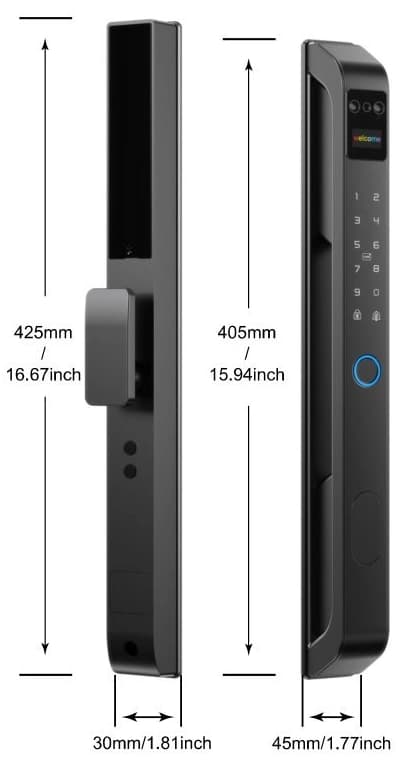

| Panel dimensions | Front: 405 × 45 mm; rear: 425 × 30 mm (height × width) |
| Lock body / mortise | 6068 mortise; standard faceplate 24 × 240 mm. Optional faceplates: 30 × 240, 30 × 388 or 40 × 388 mm. Confirm door preparation. |
| Languages | Chinese, English, Vietnamese, Portuguese, Arabic, Russian, Thai, Spanish, Indonesian |
|---|
| Catalogue water-resistance rating | IPX6 is listed in the catalogue; confirm the test report for the selected version. |
|---|
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Is Tuya included with every RS01D order?
The catalogue identifies a Tuya-marked or Tuya-optional model. Confirm the app, wireless configuration, access functions and sample version before ordering.
What door measurements are needed for RS01D?
The catalogue lists 40–120 mm door thickness. Also send the door material, existing cutout, handing and mortise measurements; panel dimensions alone do not prove installation compatibility.
Can RS01D be supplied for my brand?
Logo, finish, packaging and selected function options can be discussed. MOQ, available documents, sample cost and lead time are confirmed against the selected version and order requirements.
