RS15 Fingerprint Smart Lever Lock OEM Supply

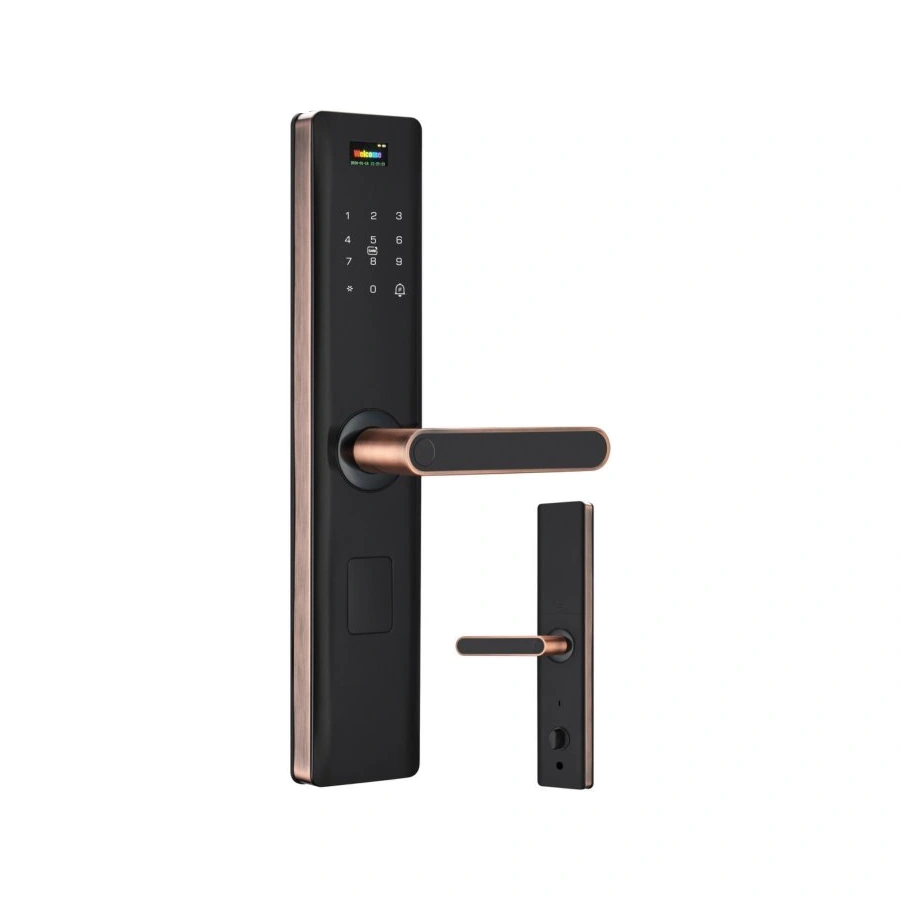

Name: RS15 Fingerprint Smart Lever Lock
Brand: GwayLock

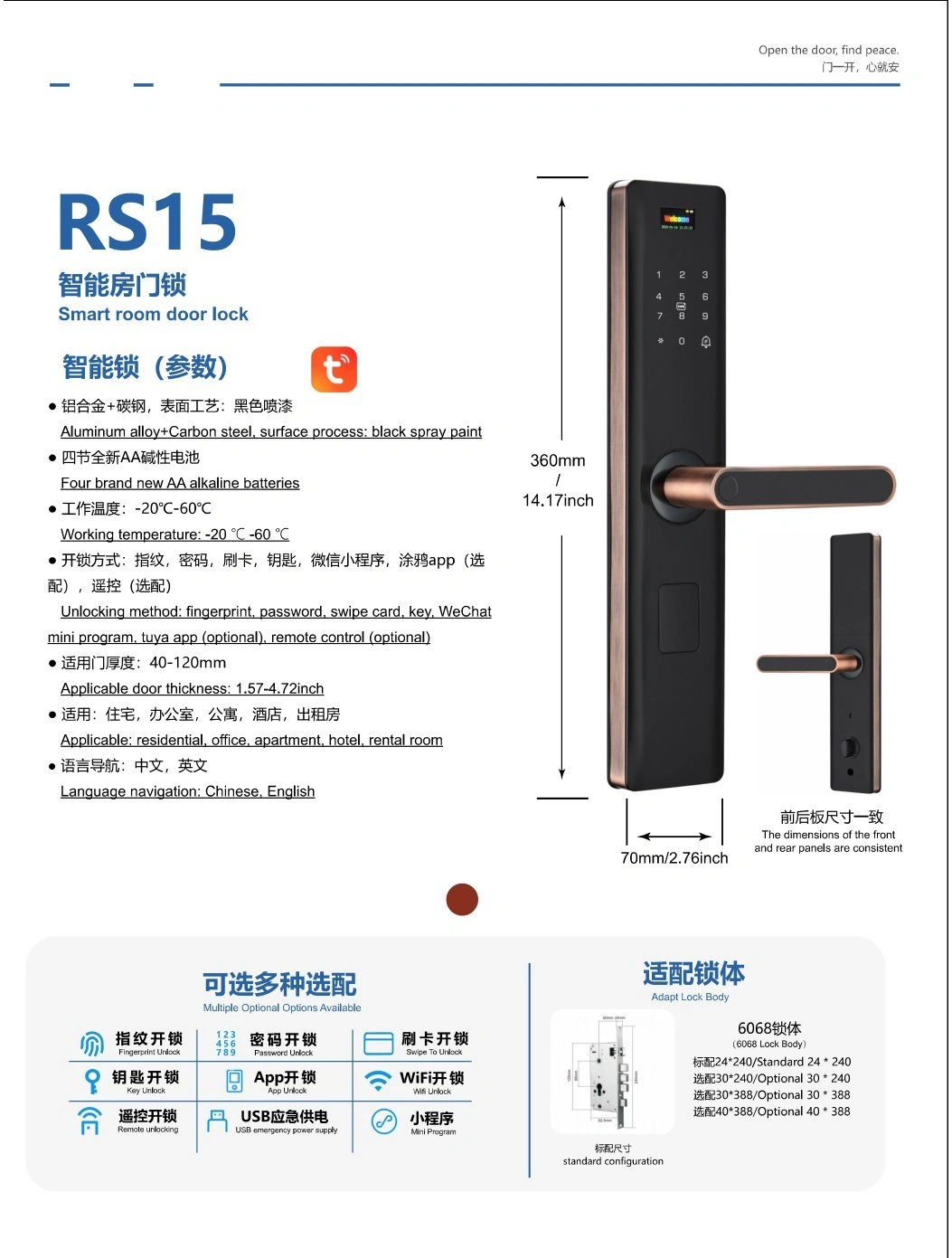

Catalogue specifications

RS15 model specifications

Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.

Access and app options
Model	RS15
Product type	Lever
Catalogue access functions	Fingerprint, Passcode, RF card, Mechanical key
App option	Tuya option — confirm selected version
Communication	Wi-Fi option shown in the catalogue; confirm the ordered wireless configuration
Optional functions	Tuya App configuration, Wi-Fi configuration (confirm selected version), WeChat mini-program access (confirm selected version), USB emergency power (confirm selected version), Remote control option

Power, material and environment
Power supply	4 × AA alkaline batteries
Material	Aluminum alloy + carbon steel
Finish	Black spray-painted finish
Working temperature	−20 to 60 °C

Installation and door fit
Door type	Residential, apartment, office and rental doors; confirm mortise fit
Door thickness	40–120 mm

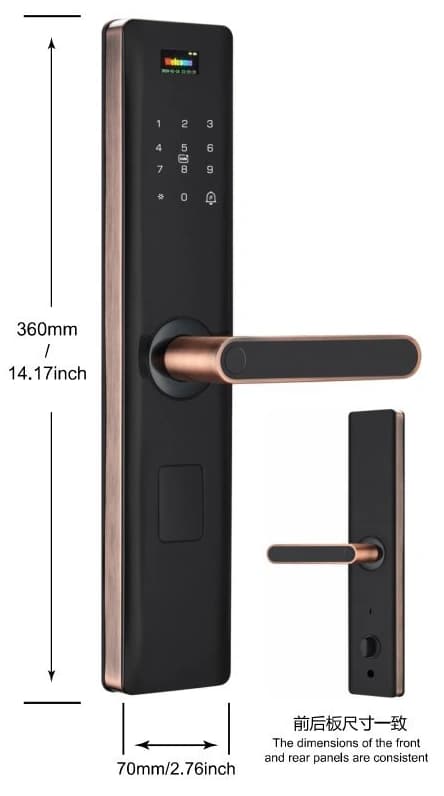

Panel dimensions	Front and rear: 360 × 70 mm (height × width)
Lock body / mortise	6068 mortise; standard faceplate 24 × 240 mm. Optional faceplates: 30 × 240, 30 × 388 or 40 × 388 mm. Confirm door preparation.

Video, display and voice
Languages	Chinese, English

Procurement
Certification	CE / FCC / RoHS available depending on selected model.
MOQ	Varies by model and customization
Lead time	Sample and bulk lead time confirmed by order details

OEM/ODM Support

Build this model for your brand or project channel

GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.

Logo and private label packaging

Model-specific app and wireless configuration

Sample testing before bulk order

Export documents and QC support

FAQ

Is Tuya included with every RS15 order?

The catalogue identifies a Tuya-marked or Tuya-optional model. Confirm the app, wireless configuration, access functions and sample version before ordering.

What door measurements are needed for RS15?

The catalogue lists 40–120 mm door thickness. Also send the door material, existing cutout, handing and mortise measurements; panel dimensions alone do not prove installation compatibility.

Can RS15 be supplied for my brand?

Logo, finish, packaging and selected function options can be discussed. MOQ, available documents, sample cost and lead time are confirmed against the selected version and order requirements.

Compare options
