T1 PRO technical reference
T1 PRO · Outdoor Weather-Protection Locks
T1 PRO Outdoor Fully Automatic Smart Lock
T1 PRO outdoor smart lock with a 4.5-inch indoor display, 7.2 V lithium power and an illustrated panel-control guide. Compare the model-specific dimensions and confirm your selected configuration.
Catalogue access
Fingerprint, Passcode, RF card
App option
Tuya / TTLock. Select one configuration; availability and functions must be confirmed.
Power
7.2 V lithium battery (capacity to be confirmed)
Door thickness
50–100 mm
The panel guide describes the supplied illustrated configuration. Confirm the selected app, optional functions and installation before sample or bulk orders.
T1 PRO / Product details
Panel layout & dimensions
Locate the controls using the numbered original-product views below. Dimensions are in millimetres, ordered height × width × depth. The illustrated functions describe the pictured configuration.
- Overall product size
- 380 × 70 mm
Depth not stated in the supplied sheet.
Front panel
Full size- 13D face-recognition camera
- 2LED status display
- 3Passcode / card-reader area
- 4Doorbell
- 5One-touch locking
- 6Fingerprint sensor on lever
Rear panel
Full size- 14.5-inch HD indoor display
- 2Display confirm button
- 3Interior lever handle
- 4Interior thumbturn
The supplied F01 sheet gives a 380 × 70 mm product size without depth or separate front/rear dimensions.
Earlier catalogue page 83 calls this design Y1 Pro; the current model name is T1 PRO, corresponding to the supplied F01 reference.

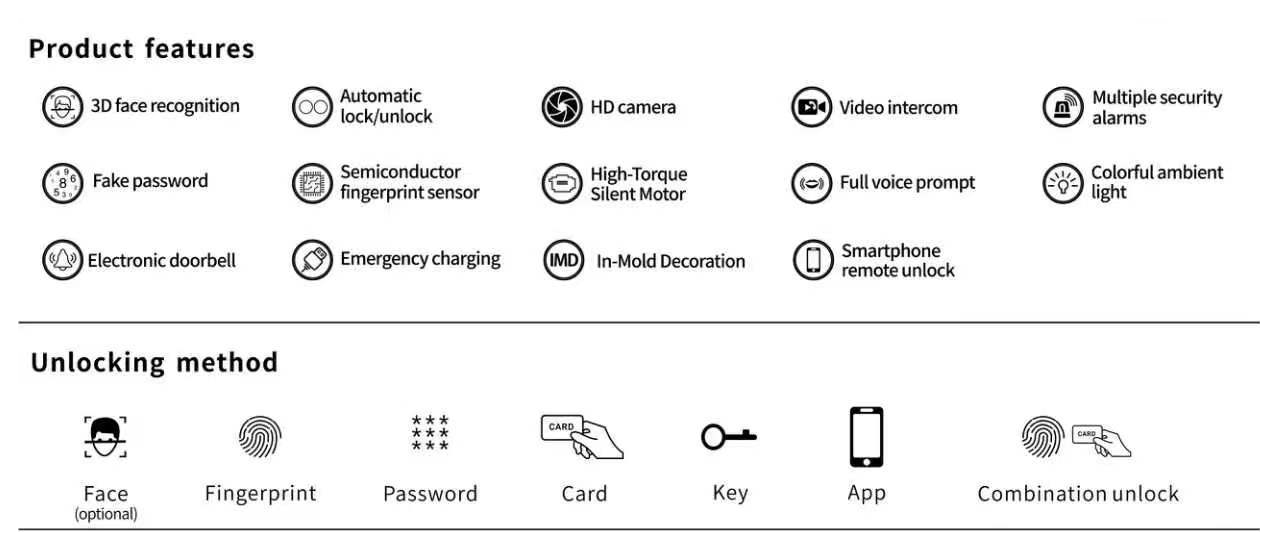

Key Features
- Double-sided waterproof and sun-protection design for the outdoor series; confirm the selected version and exposure limits
- Anti-freeze design listed in the catalogue heading; operating temperature and test conditions require confirmation
- Automatic locking and unlocking (confirm selected configuration)
- Semiconductor fingerprint sensor
- HD camera (source label); confirm resolution
- Video intercom (confirm selected version and network requirements)
- Multiple security alarms (confirm alarm functions)
- Decoy passcode function
- High-torque silent motor (source description)
- Voice prompts (languages to be confirmed)
- Colorful ambient light
- Electronic doorbell
- In-mold decoration (IMD)
- Smartphone remote unlock (confirm app version and network requirements)
- 3D face recognition (optional; confirm selected version)
- Sample available for testing and evaluation
- 4.5-inch HD indoor display (illustrated version; resolution not stated)
- USB-C emergency power input
- 50 fingerprints and 50 cards in the supplied configuration
- 50 face profiles for the selected face-access version
Suitable Applications
- Outdoor entrance project (confirm exposure)
- Residential entrance project
- Villa entrance project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)
Catalogue specifications
T1 PRO model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | T1 PRO |
|---|---|
| Product type | Fully automatic |
| Catalogue access functions | Fingerprint, Passcode, RF card, Mechanical key, App |
| App option | Tuya / TTLock. Select one configuration; availability and functions must be confirmed. |
| Communication | Confirm selected version |
| Optional functions | 3D face recognition (optional; confirm selected version) |
| App versions | Tuya, TTLock |
|---|---|
| Catalogue versions | Tuya, TTLock |
| Fingerprints | 50 |
|---|---|
| Cards | 50 |
| Faces | 50 |
| Power supply | 7.2 V lithium battery (capacity to be confirmed) |
|---|---|
| Material | Die-cast alloy |

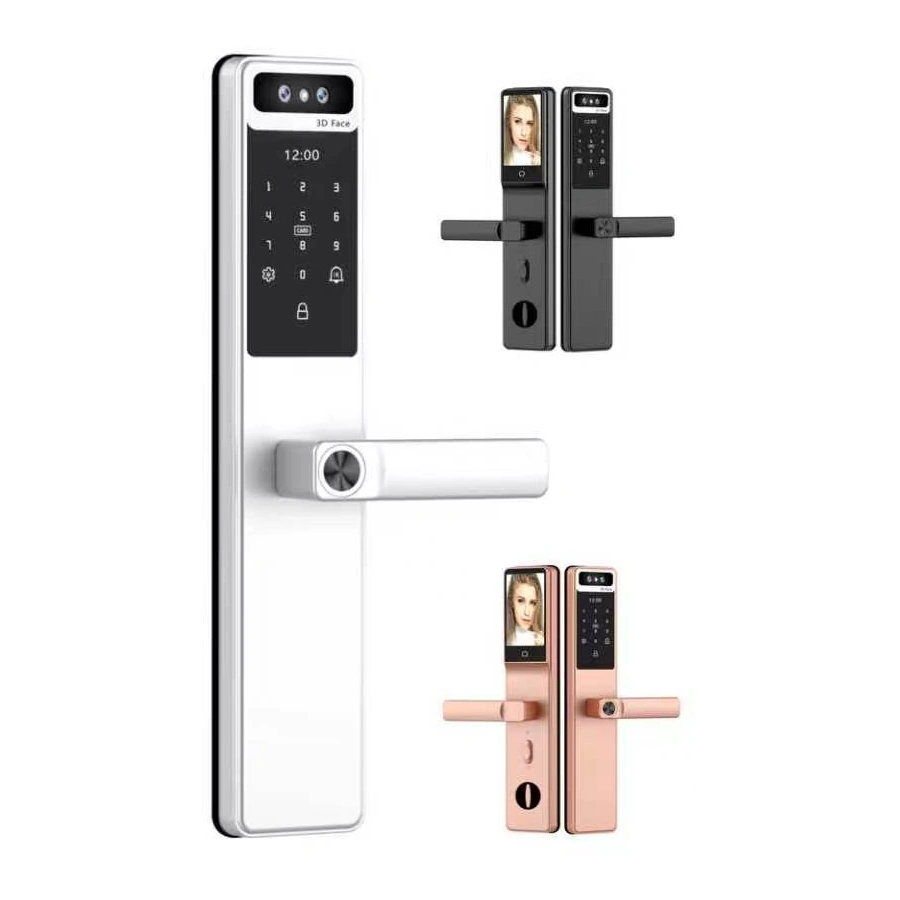

| Finish | Silver, dark and copper-tone variants shown; confirm selected finish |
| Door type | Entrance-door projects; confirm door material and mounting preparation |
|---|---|
| Door thickness | 50–100 mm |
| Panel dimensions | 380 × 70 mm (overall product size; depth not stated; front/rear not separately specified) |
| Lock body / mortise | Source-listed options: 6068 square mortise (24 × 240 mm); 6068 cylindrical mortise (30 × 240 mm); 6590 Israel-type lock body (22 × 250 mm); 5572; 6585; 6085; 6068 long lock body (30 × 388 / 40 × 388 mm). Confirm door preparation and included mortise. |
| Display | 4.5-inch HD indoor display (illustrated version; resolution not stated) |
|---|---|
| Camera | 3D face-recognition camera shown on the supplied sheet; confirm selected face-access version |
| Outdoor protection | Double-sided waterproof and sun-protection design for the outdoor series; confirm the selected version and exposure limits |
|---|---|
| Combination unlock | Listed in the source; confirm supported combinations and configuration |
| Voice guidance | Voice prompts listed; languages and firmware to be confirmed |
| Emergency power connector | USB-C |
| Box dimensions | Confirm selected version |
|---|---|
| Box weight | Confirm selected version |
| Carton dimensions | Confirm selected version |
| Units per carton | Confirm selected version |
| Carton weight | Confirm selected version |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which T1 PRO configuration should I request?
The detailed sheet lists 50 fingerprints, 50 cards and 7.2 V lithium power. The illustrated face-access configuration lists 50 face profiles and a 4.5-inch indoor display. Confirm the app version, supplied battery pack, installation and included functions before sampling.
What should I confirm for an outdoor T1 PRO installation?
Confirm protection documentation for exposure on both sides, door construction, thickness, handing, mounting dimensions, lock body, finish and packing. Evaluate the selected version on the intended door before a bulk order.
