Q2 catalogue reference
Q2 · Knob Smart Locks

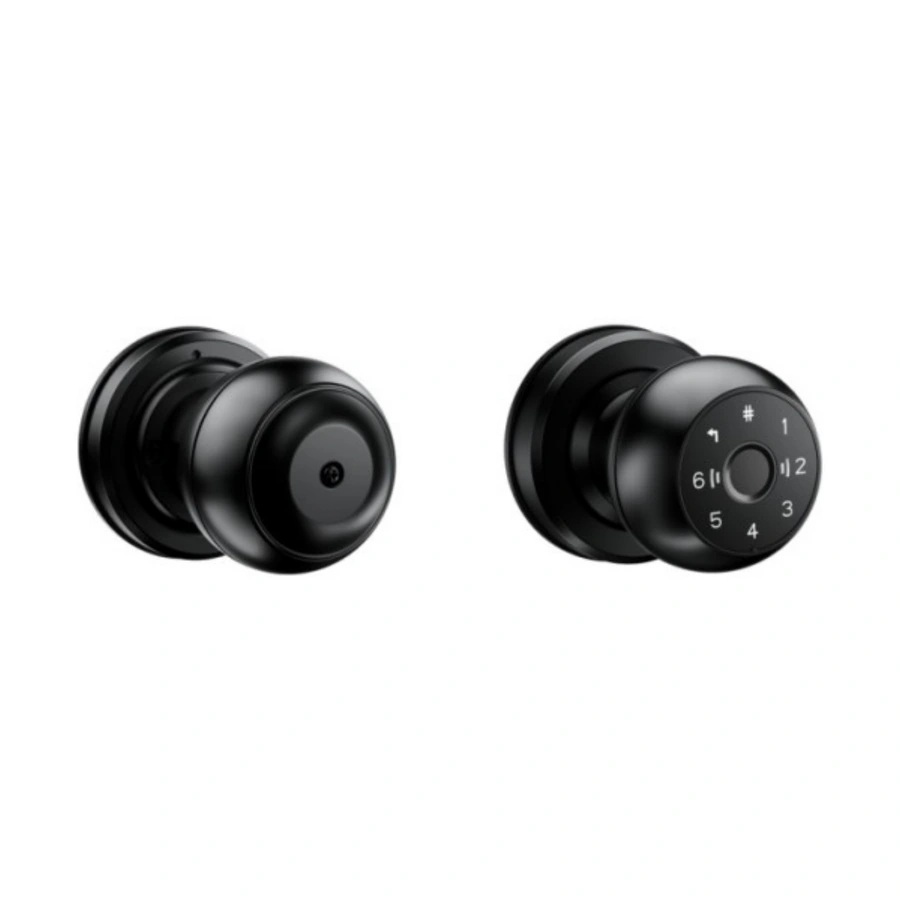

Q2 Knob Smart Lock
Keypad knob with listed fingerprint, passcode and card capacities, mechanical-key access and six voice languages; confirm its standalone Wi-Fi configuration.
Catalogue access
Fingerprint, Passcode, RF card
App option
Standalone (Wi-Fi; confirm configuration). Select one configuration; availability must be confirmed.
Power
6 V (4 × AA alkaline batteries)
Door thickness
30–50 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- Fingerprint access listed for this model
- Passcode access listed for this model
- RF card access listed for this model
- Mechanical key access listed for this model
- Catalogue-listed multilingual voice guidance; confirm language firmware
- Sample available for testing and evaluation
Suitable Applications
- Apartment
- Office
- Residential door project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)
Catalogue specifications

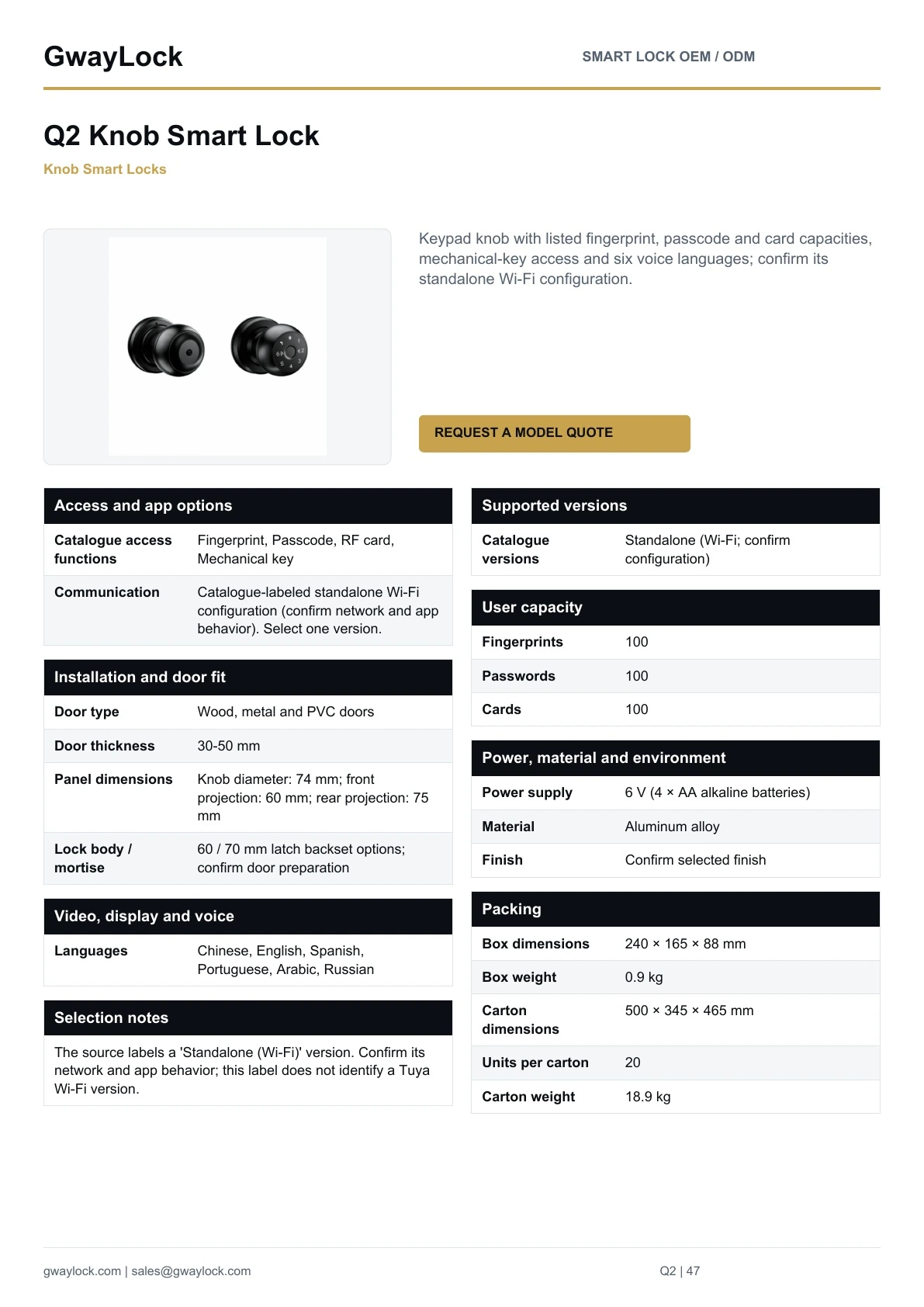

Q2 model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | Q2 |
|---|---|
| Product type | Knob |
| Catalogue access functions | Fingerprint, Passcode, RF card, Mechanical key |
| App option | Standalone (Wi-Fi; confirm configuration). Select one configuration; availability must be confirmed. |
| Communication | Catalogue-labeled standalone Wi-Fi configuration (confirm network and app behavior). Select one version. |
| App versions | Standalone |
|---|---|
| Catalogue versions | Standalone (Wi-Fi; confirm configuration) |
| Fingerprints | 100 |
|---|---|
| Passwords | 100 |
| Cards | 100 |
| Power supply | 6 V (4 × AA alkaline batteries) |
|---|---|
| Material | Aluminum alloy |
| Finish | Confirm selected finish |
| Door type | Wood, metal and PVC doors |
|---|---|
| Door thickness | 30–50 mm |

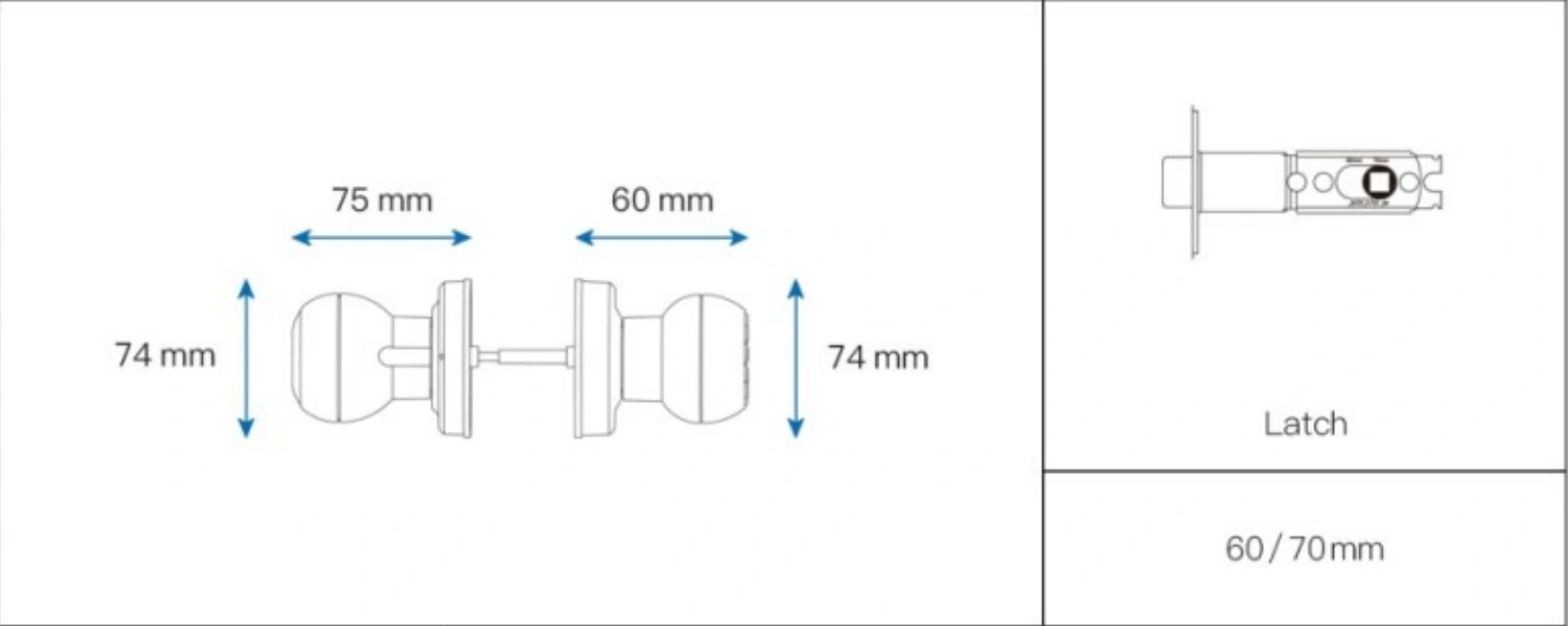

| Panel dimensions | Knob diameter: 74 mm; front projection: 60 mm; rear projection: 75 mm |
| Lock body / mortise | 60 / 70 mm latch backset options; confirm door preparation |
| Languages | Chinese, English, Spanish, Portuguese, Arabic, Russian |
|---|
| Voice guidance | Chinese, English, Spanish, Portuguese, Arabic, Russian |
|---|
| Box dimensions | 240 × 165 × 88 mm |
|---|---|
| Box weight | 0.9 kg |
| Carton dimensions | 500 × 345 × 465 mm |
| Units per carton | 20 |
| Carton weight | 18.9 kg |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which Q2 configuration should I request?
The source lists Standalone (Wi-Fi; confirm configuration). These are version choices; confirm the exact access, app and network configuration for the sample.
What should I confirm before ordering Q2?
Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 30–50 mm; evaluate a sample on the intended door before a bulk order.
Compare options
Related Products
Knob · Catalogue model

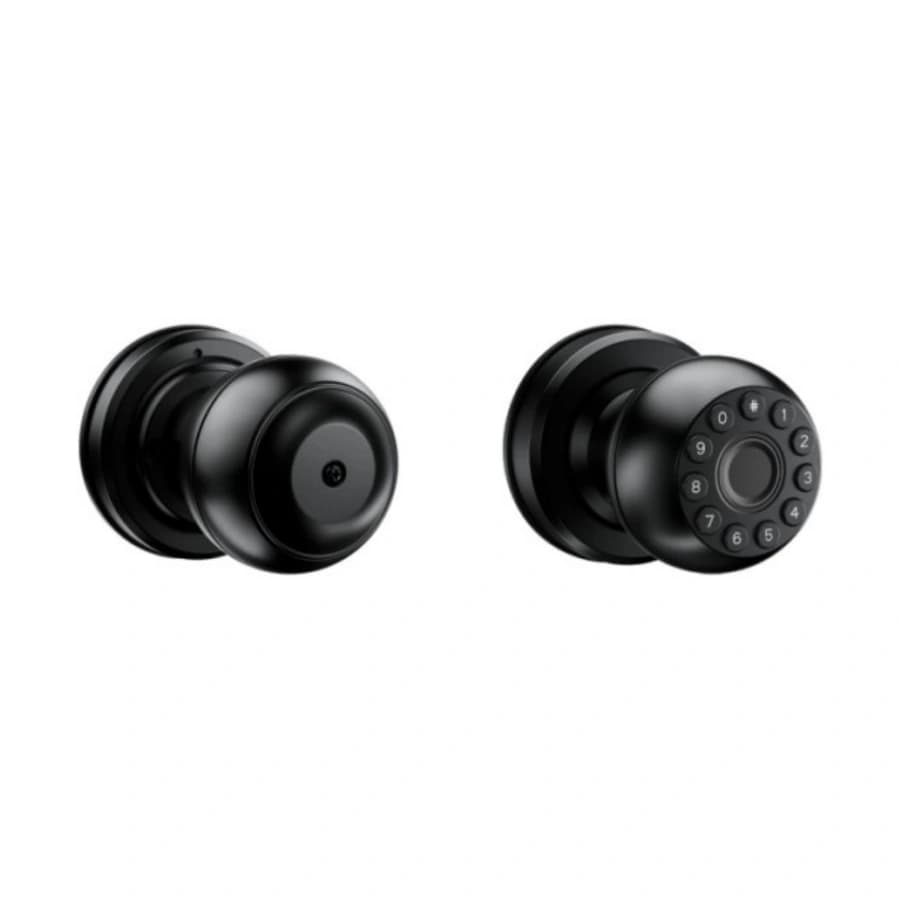

Q1 Knob Smart Lock
