DS04 catalogue reference
DS04 · Deadbolt Smart Locks

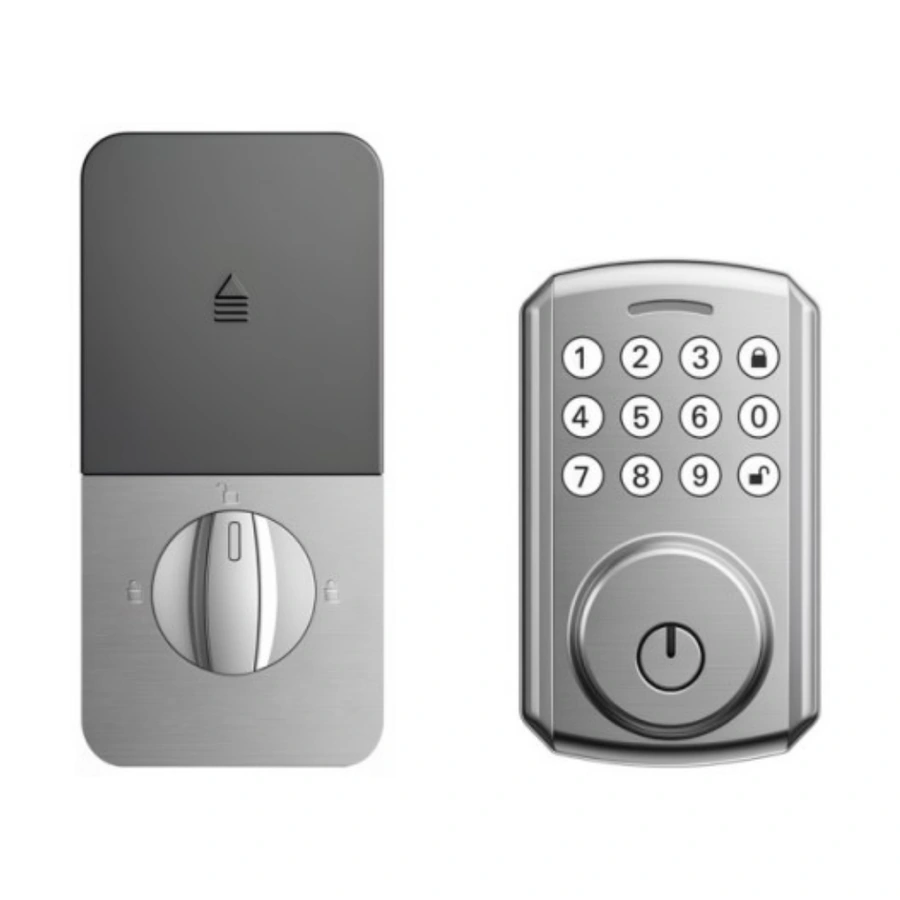

DS04 Deadbolt Smart Lock
Passcode-and-key deadbolt with 100 passcode slots and an optional door sensor. Fingerprint and RF-card functions are not listed for DS04.
Catalogue access
Passcode, Mechanical key
App option
Standalone / Tuya (Bluetooth). Select one configuration; availability must be confirmed.
Power
6 V (4 × AA alkaline batteries)
Door thickness
35–55 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- Passcode access listed for this model
- Mechanical key access listed for this model
- Sample available for testing and evaluation
Suitable Applications
- Apartment
- Rental property
- Residential door project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)

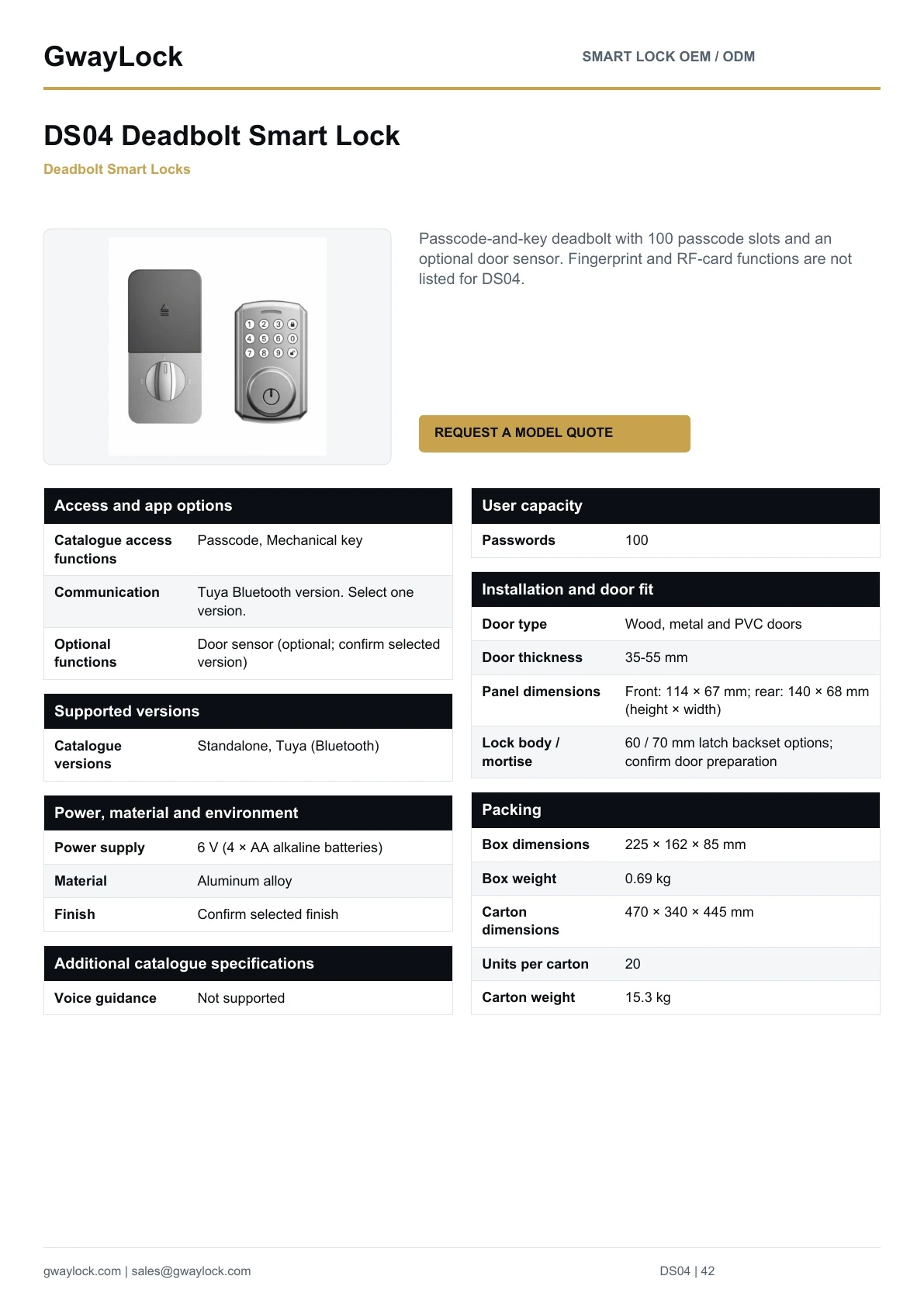

Catalogue specifications
DS04 model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | DS04 |
|---|---|
| Product type | Deadbolt |
| Catalogue access functions | Passcode, Mechanical key |
| App option | Standalone / Tuya (Bluetooth). Select one configuration; availability must be confirmed. |
| Communication | Tuya Bluetooth version. Select one version. |
| Optional functions | Door sensor (optional; confirm selected version) |
| App versions | Standalone, Tuya |
|---|---|
| Catalogue versions | Standalone, Tuya (Bluetooth) |
| Passwords | 100 |
|---|
| Power supply | 6 V (4 × AA alkaline batteries) |
|---|---|
| Material | Aluminum alloy |
| Finish | Confirm selected finish |
| Door type | Wood, metal and PVC doors |
|---|---|
| Door thickness | 35–55 mm |

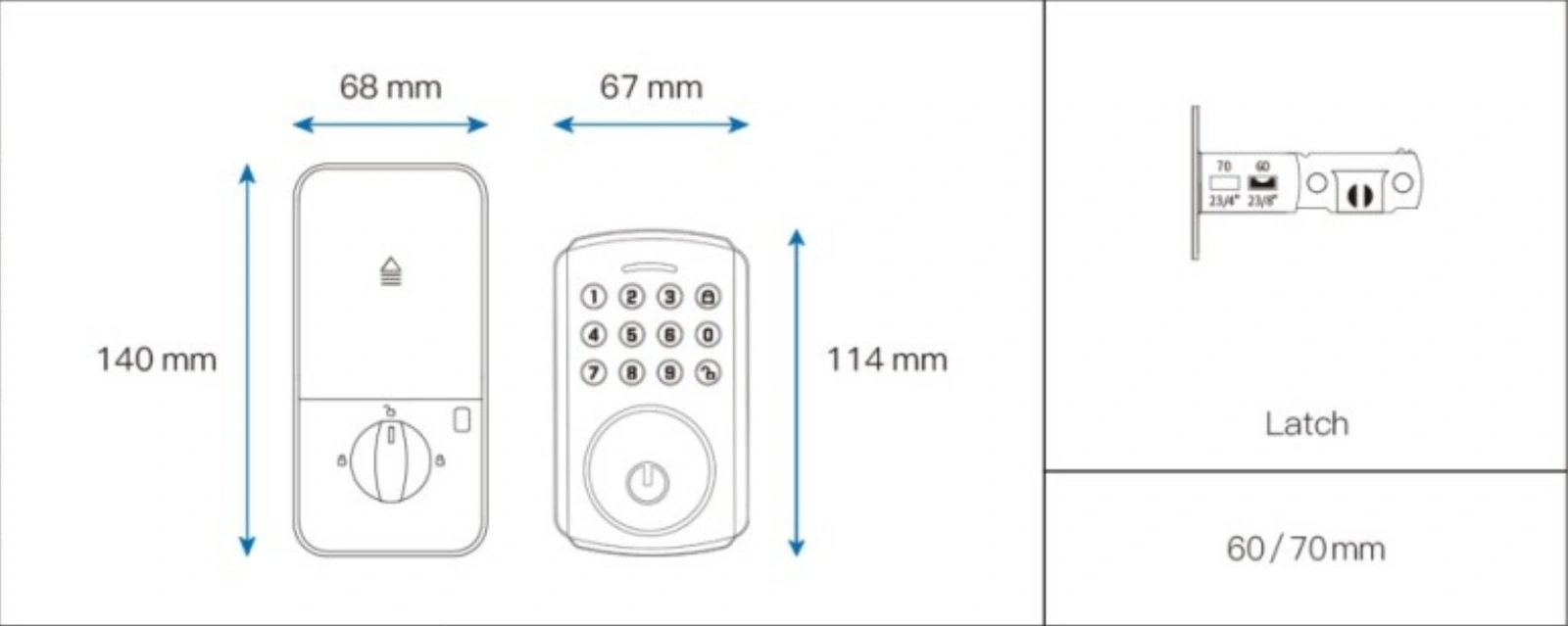

| Panel dimensions | Front: 114 × 67 mm; rear: 140 × 68 mm (height × width) |
| Lock body / mortise | 60 / 70 mm latch backset options; confirm door preparation |
| Voice guidance | Not supported |
|---|
| Box dimensions | 225 × 162 × 85 mm |
|---|---|
| Box weight | 0.69 kg |
| Carton dimensions | 470 × 340 × 445 mm |
| Units per carton | 20 |
| Carton weight | 15.3 kg |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which DS04 configuration should I request?
The source lists Standalone, Tuya (Bluetooth). These are version choices; confirm the exact access, app and network configuration for the sample.
What should I confirm before ordering DS04?
Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 35–55 mm; evaluate a sample on the intended door before a bulk order.
