DS01 catalogue reference
DS01 · Deadbolt Smart Locks

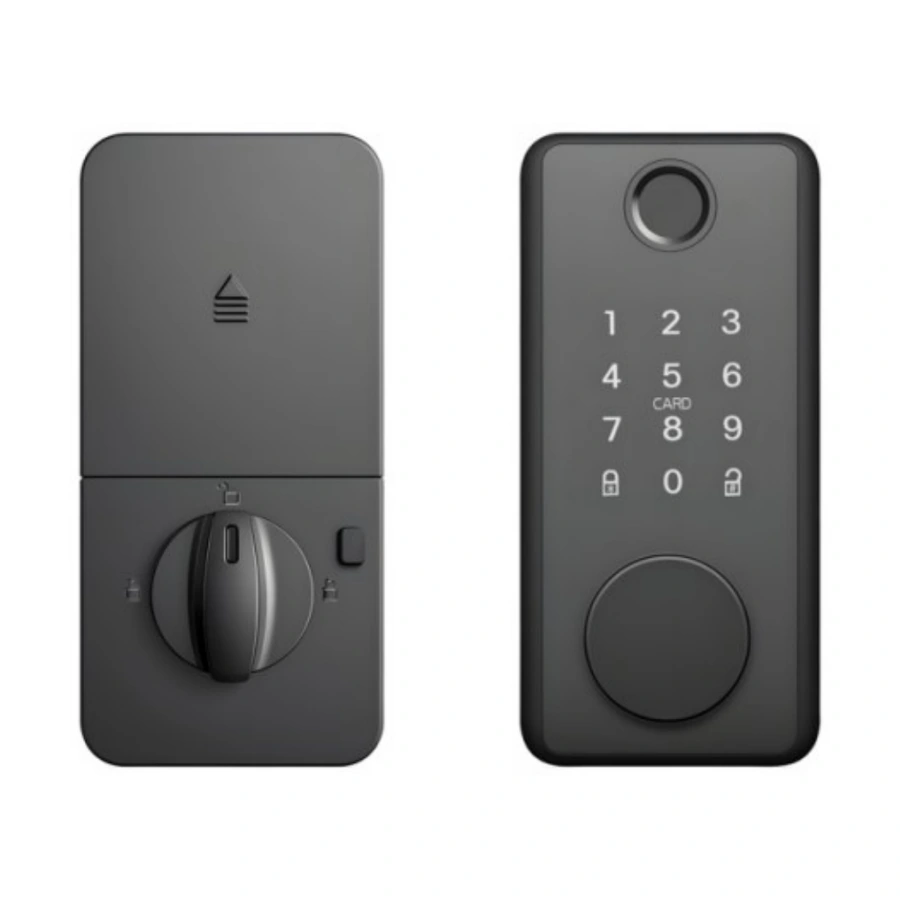

DS01 Deadbolt Smart Lock
Compact deadbolt with four access methods, four voice languages and an optional door sensor; select one catalogue configuration for the project.
Catalogue access
Fingerprint, Passcode, RF card
App option
Standalone (Wi-Fi; confirm configuration) / Tuya (Bluetooth) / TTLock / T3 configuration (confirm specification). Select one configuration; availability must be confirmed.
Power
6 V (4 × AA alkaline batteries)
Door thickness
35–55 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- Fingerprint access listed for this model
- Passcode access listed for this model
- RF card access listed for this model
- Mechanical key access listed for this model
- Catalogue-listed multilingual voice guidance; confirm language firmware
- Sample available for testing and evaluation
Suitable Applications
- Apartment
- Rental property
- Residential door project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)

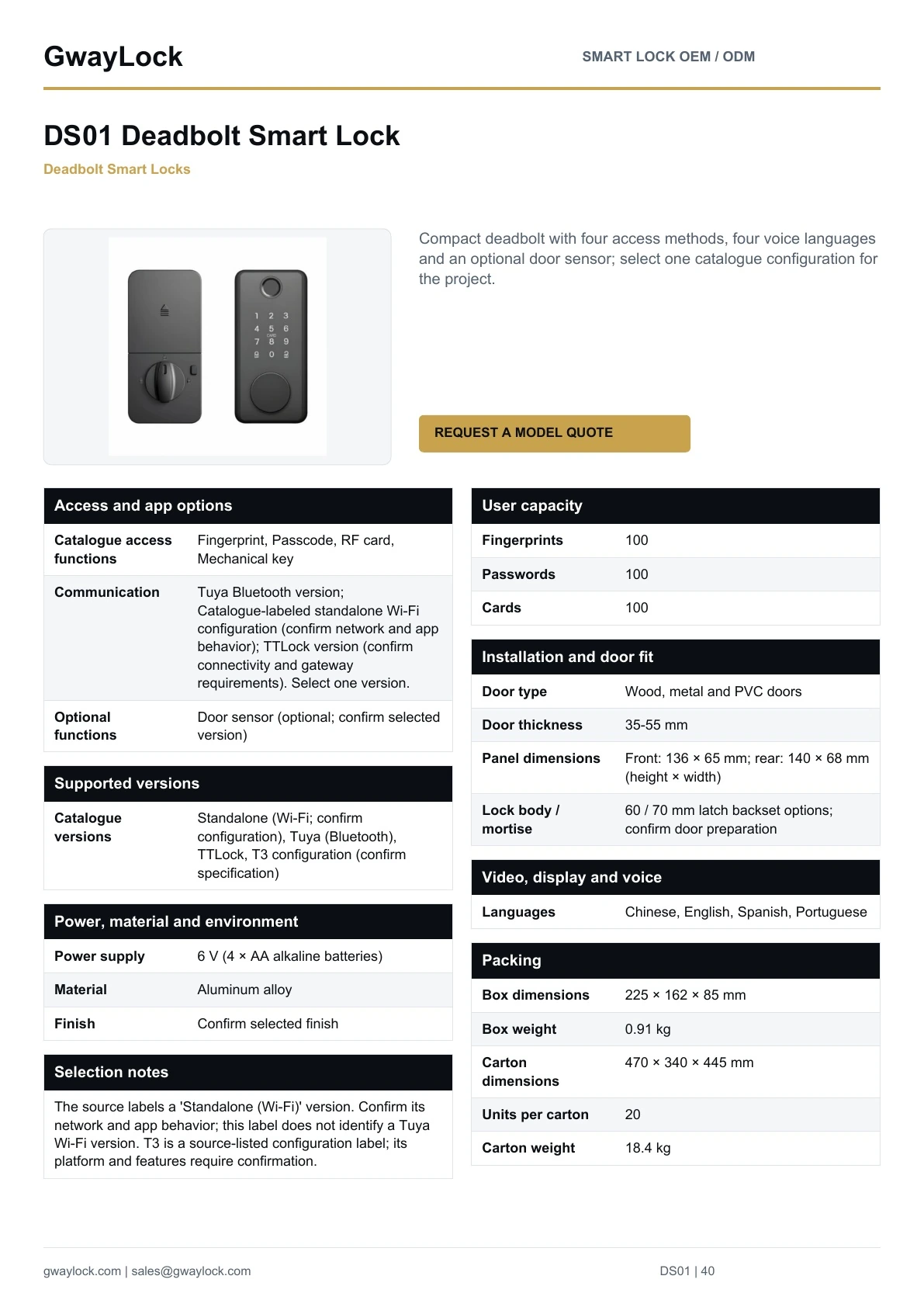

Catalogue specifications
DS01 model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | DS01 |
|---|---|
| Product type | Deadbolt |
| Catalogue access functions | Fingerprint, Passcode, RF card, Mechanical key |
| App option | Standalone (Wi-Fi; confirm configuration) / Tuya (Bluetooth) / TTLock / T3 configuration (confirm specification). Select one configuration; availability must be confirmed. |
| Communication | Tuya Bluetooth version; Catalogue-labeled standalone Wi-Fi configuration (confirm network and app behavior); TTLock version (confirm connectivity and gateway requirements). Select one version. |
| Optional functions | Door sensor (optional; confirm selected version) |
| App versions | Standalone, Tuya, TTLock |
|---|---|
| Catalogue versions | Standalone (Wi-Fi; confirm configuration), Tuya (Bluetooth), TTLock, T3 configuration (confirm specification) |
| Fingerprints | 100 |
|---|---|
| Passwords | 100 |
| Cards | 100 |
| Power supply | 6 V (4 × AA alkaline batteries) |
|---|---|
| Material | Aluminum alloy |
| Finish | Confirm selected finish |
| Door type | Wood, metal and PVC doors |
|---|---|
| Door thickness | 35–55 mm |

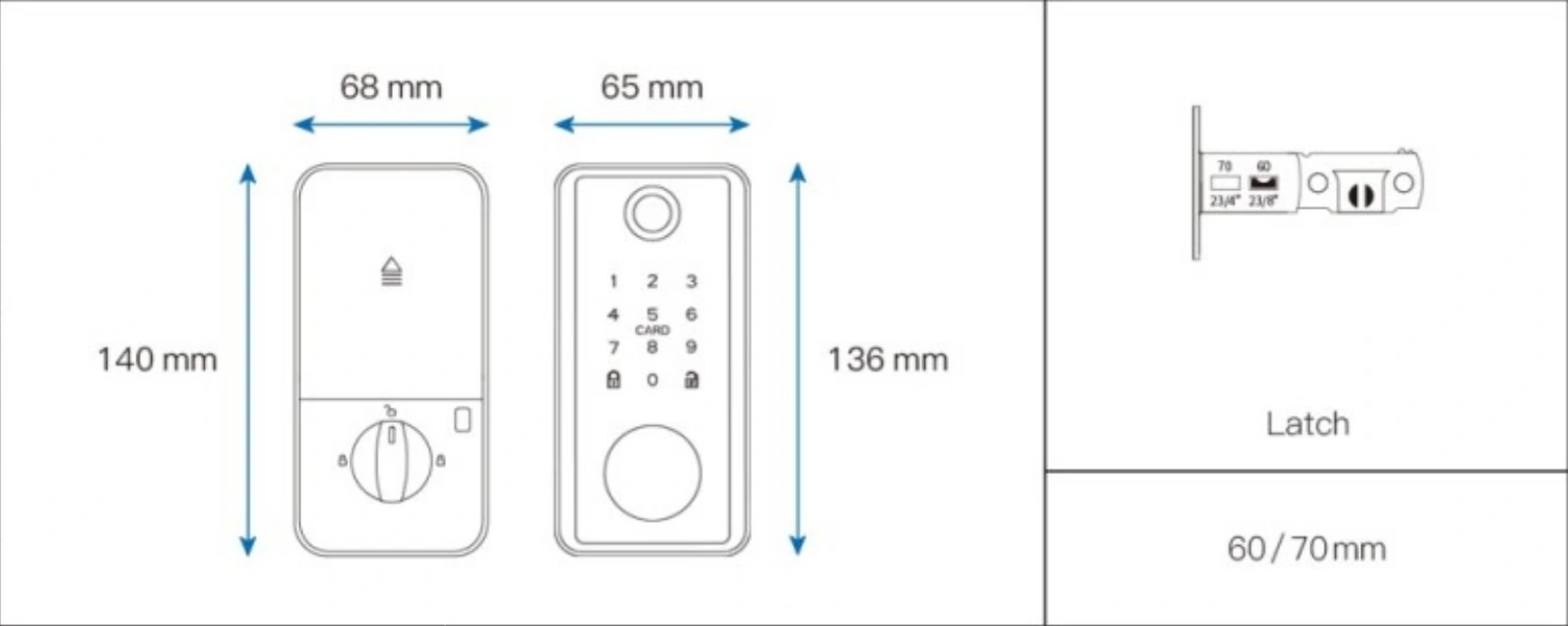

| Panel dimensions | Front: 136 × 65 mm; rear: 140 × 68 mm (height × width) |
| Lock body / mortise | 60 / 70 mm latch backset options; confirm door preparation |
| Languages | Chinese, English, Spanish, Portuguese |
|---|
| Voice guidance | Chinese, English, Spanish, Portuguese |
|---|
| Box dimensions | 225 × 162 × 85 mm |
|---|---|
| Box weight | 0.91 kg |
| Carton dimensions | 470 × 340 × 445 mm |
| Units per carton | 20 |
| Carton weight | 18.4 kg |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which DS01 configuration should I request?
The source lists Standalone (Wi-Fi; confirm configuration), Tuya (Bluetooth), TTLock, T3 configuration (confirm specification). These are version choices; confirm the exact access, app and network configuration for the sample.
What should I confirm before ordering DS01?
Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 35–55 mm; evaluate a sample on the intended door before a bulk order.
