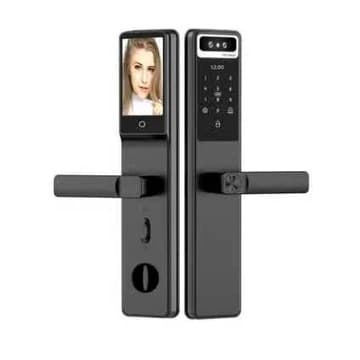

Y1 Pro Outdoor Fully Automatic Smart Lock

Name: Y1 Pro Outdoor Fully Automatic Smart Lock
Brand: GwayLock

Outdoor fully automatic lock with a horizontal handle, indoor display and optional 3D face access.

Request a Quote Talk on WhatsApp

Email about Y1 Pro Download Outdoor Smart Lock Catalogue

Catalogue access

Fingerprint, Passcode, RF card

App option

Tuya / TTLock. Select one configuration; availability and functions must be confirmed.

Power

4200 mAh lithium-ion battery

Door thickness

50–100 mm

Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.

Key Features

Double-sided waterproof and sun-protection design for the outdoor series; confirm the selected version and exposure limits
Anti-freeze design listed in the catalogue heading; operating temperature and test conditions require confirmation
Automatic locking and unlocking (confirm selected configuration)
Semiconductor fingerprint sensor
HD camera (source label); confirm resolution
Video intercom (confirm selected version and network requirements)
Multiple security alarms (confirm alarm functions)
Decoy passcode function
High-torque silent motor (source description)
Voice prompts (languages to be confirmed)
Colorful ambient light
Electronic doorbell
Emergency charging (connector to be confirmed)
In-mold decoration (IMD)
Smartphone remote unlock (confirm app version and network requirements)
3D face recognition (optional; confirm selected version)
Indoor display shown; confirm size and display configuration
Sample available for testing and evaluation

Suitable Applications

Outdoor entrance project (confirm exposure)
Residential entrance project
Villa entrance project

OEM/ODM Options

Logo
Finish
Packaging (confirm model and order requirements)

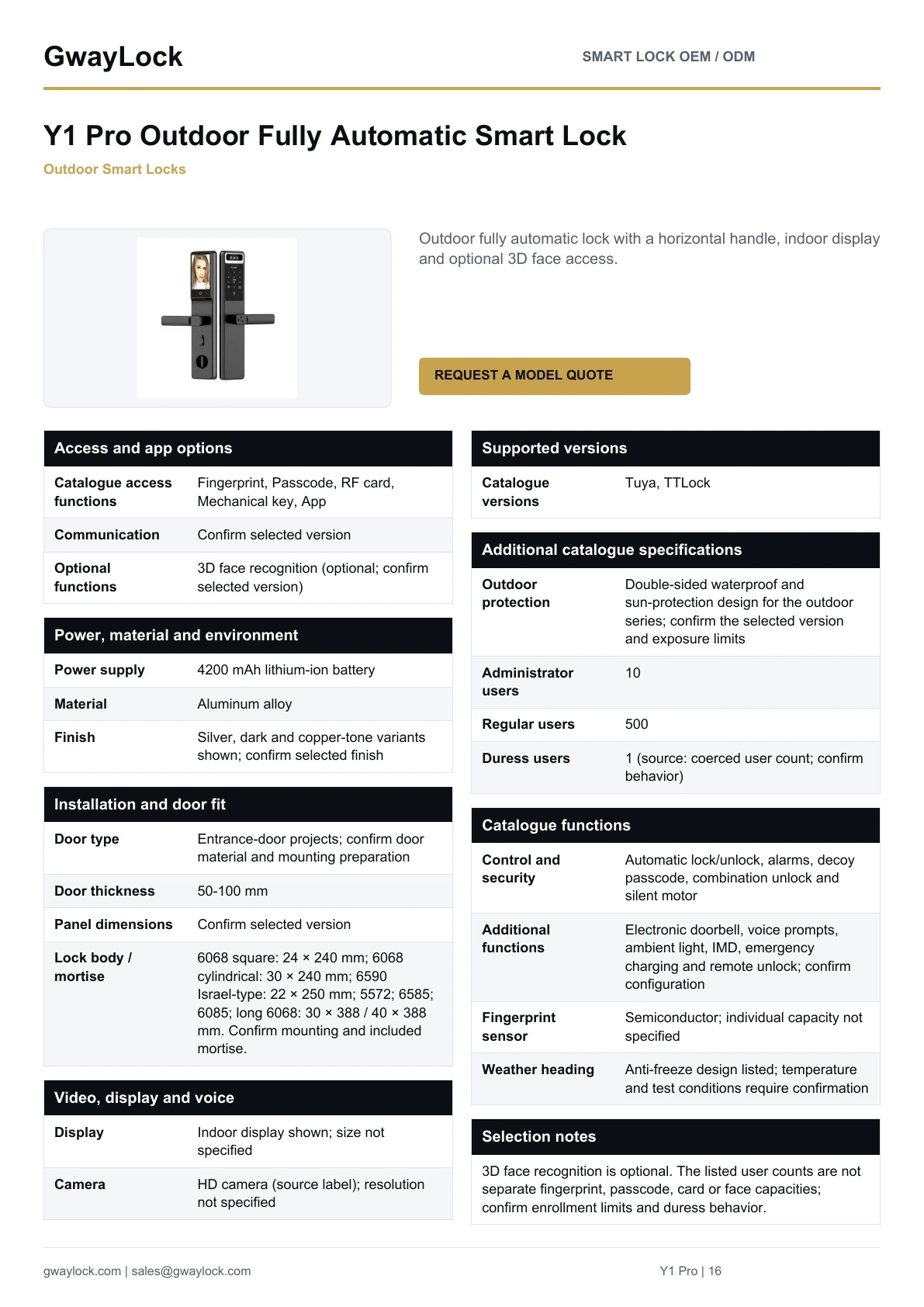

Catalogue specifications

Y1 Pro model specifications

Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.

Access and app options
Model	Y1 Pro
Product type	Fully automatic
Catalogue access functions	Fingerprint, Passcode, RF card, Mechanical key, App
App option	Tuya / TTLock. Select one configuration; availability and functions must be confirmed.
Communication	Confirm selected version
Optional functions	3D face recognition (optional; confirm selected version)

Supported versions
App versions	Tuya, TTLock
Catalogue versions	Tuya, TTLock

Power, material and environment
Power supply	4200 mAh lithium-ion battery
Material	Aluminum alloy

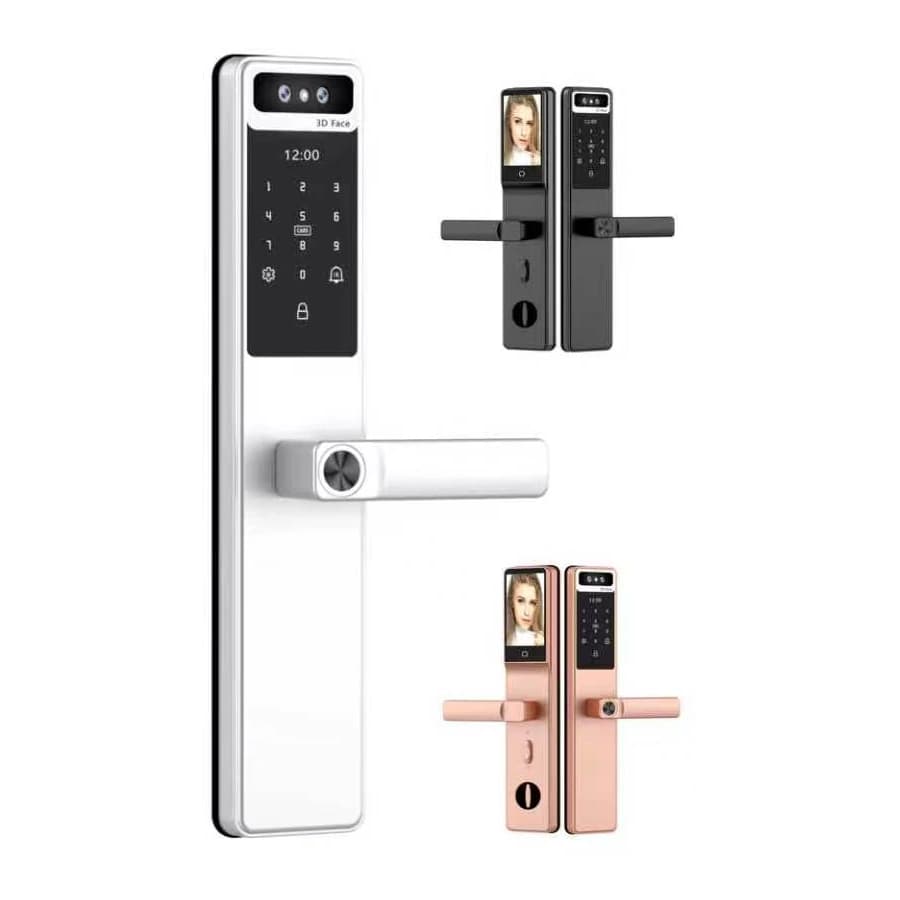

Finish	Silver, dark and copper-tone variants shown; confirm selected finish

Installation and door fit
Door type	Entrance-door projects; confirm door material and mounting preparation
Door thickness	50–100 mm
Panel dimensions	Confirm selected version
Lock body / mortise	Source-listed options: 6068 square mortise (24 × 240 mm); 6068 cylindrical mortise (30 × 240 mm); 6590 Israel-type lock body (22 × 250 mm); 5572; 6585; 6085; 6068 long lock body (30 × 388 / 40 × 388 mm). Confirm door preparation and included mortise.

Video, display and voice
Display	Indoor display shown; size not specified
Camera	HD camera (source label); resolution not specified

Additional catalogue specifications
Outdoor protection	Double-sided waterproof and sun-protection design for the outdoor series; confirm the selected version and exposure limits
Administrator users	10
Regular users	500
Duress users	1 (source: coerced user count; confirm behavior)
Fingerprint sensor	Semiconductor sensor; individual fingerprint capacity is not specified
Combination unlock	Listed in the source; confirm supported combinations and configuration
Voice guidance	Voice prompts listed; languages and firmware to be confirmed
Emergency charging	Listed in the source; confirm connector and power requirements

Packing
Box dimensions	Confirm selected version
Box weight	Confirm selected version
Carton dimensions	Confirm selected version
Units per carton	Confirm selected version
Carton weight	Confirm selected version

Procurement
Certification	CE / FCC / RoHS available depending on selected model.
MOQ	Varies by model and customization
Lead time	Sample and bulk lead time confirmed by order details

Catalogue notes

For outdoor exposure, confirm the protection documentation, installation method and both-side exposure limits for the selected version before sampling.
The source heading lists weather-protection features without test ratings; confirm supporting documentation for the intended exposure.
Tuya and TTLock are separate version options shown on this model's page. Confirm availability, network requirements, remote functions and smart-home integrations for the selected version.
3D face recognition is optional. The listed user counts are not separate fingerprint, passcode, card or face capacities; confirm enrollment limits and duress behavior.
Confirm battery voltage, supplied pack, charger and emergency-power connector for the selected version.
Panel dimensions, language firmware, individual access-method capacities and packing are not specified; confirm these details before sampling or a freight quotation.

OEM/ODM Support

Build this model for your brand or project channel

GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.

Logo and private label packaging

Model-specific app and wireless configuration

Sample testing before bulk order

Export documents and QC support

FAQ

Which Y1 Pro configuration should I request?

The source page shows Tuya and TTLock version options. Select one app configuration and confirm its access functions, network requirements and availability before sampling. 3D face recognition is optional.

What should I confirm for an outdoor Y1 Pro installation?

Confirm protection documentation for exposure on both sides, door construction, thickness, handing, mounting dimensions, lock body, finish and packing. Evaluate the selected version on the intended door before a bulk order.
