RS60HY Video Doorbell Smart Lever Lock OEM Supply

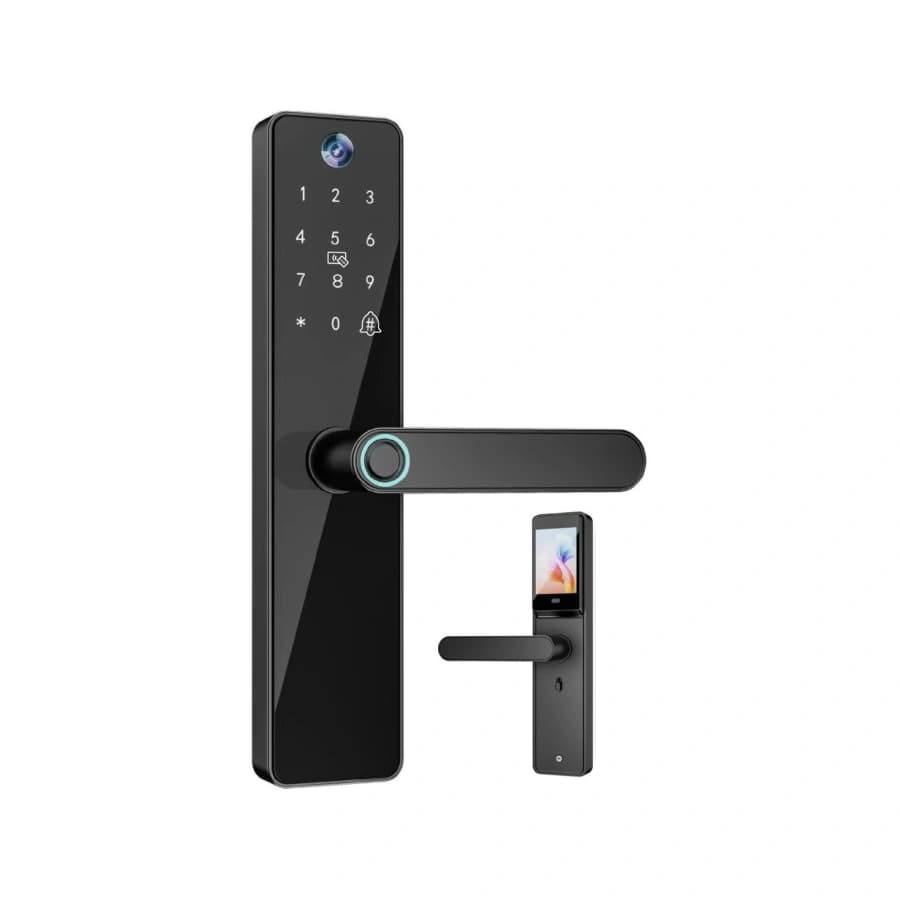

Name: RS60HY Video Doorbell Smart Lever Lock
Brand: GwayLock

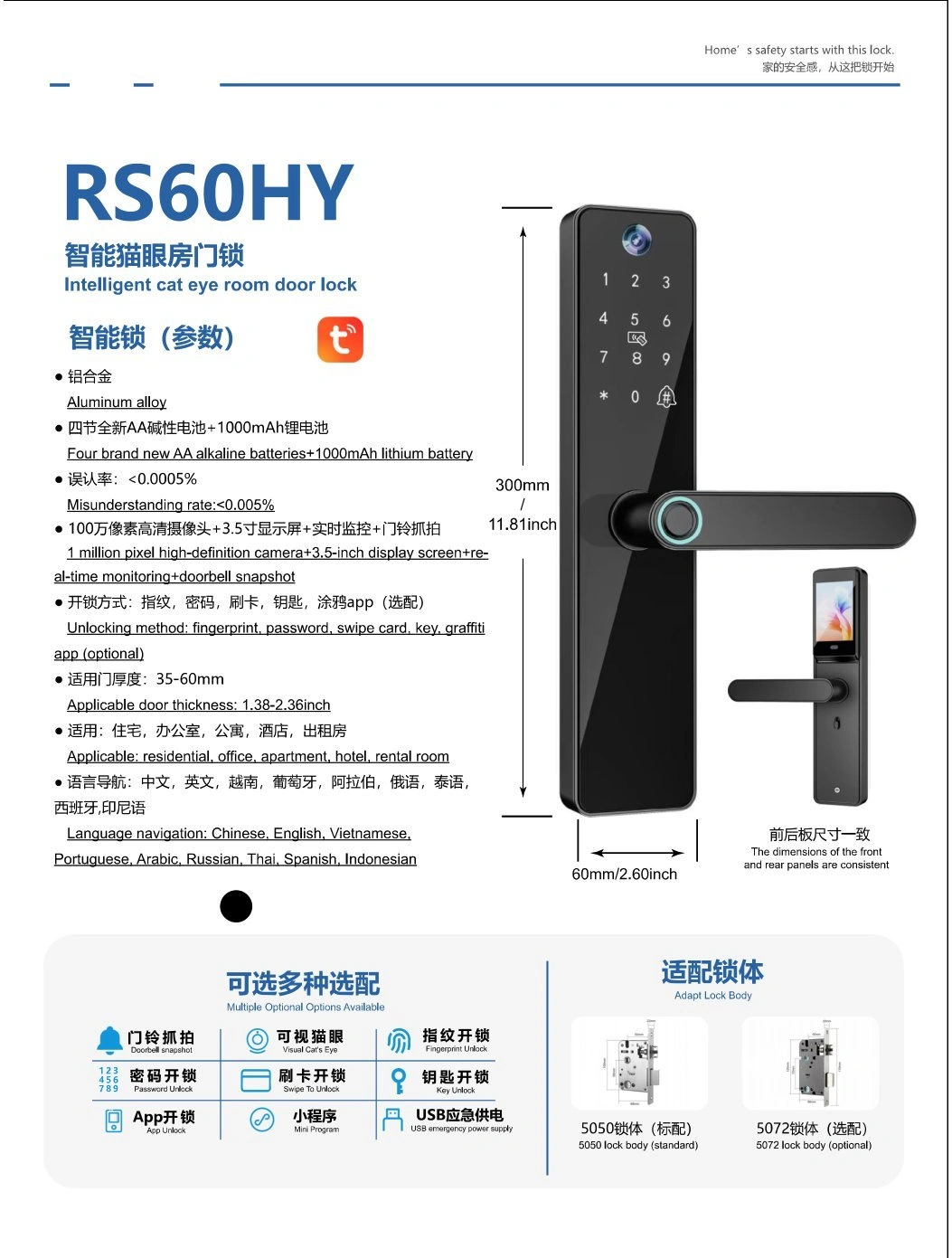

Catalogue specifications

RS60HY model specifications

Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.

Access and app options
Model	RS60HY
Product type	Lever
Catalogue access functions	Fingerprint, Passcode, RF card, Mechanical key
App option	Tuya option — confirm selected version
Communication	Confirm the ordered wireless configuration for optional Tuya app access
Optional functions	Tuya App configuration, WeChat mini-program access (confirm selected version), USB emergency power (confirm selected version)

Power, material and environment
Power supply	4 × AA alkaline batteries + 1000 mAh lithium battery
Material	Aluminum alloy
Finish	Confirm selected finish

Installation and door fit
Door type	Residential, apartment, office and rental doors; confirm mortise fit
Door thickness	35–60 mm

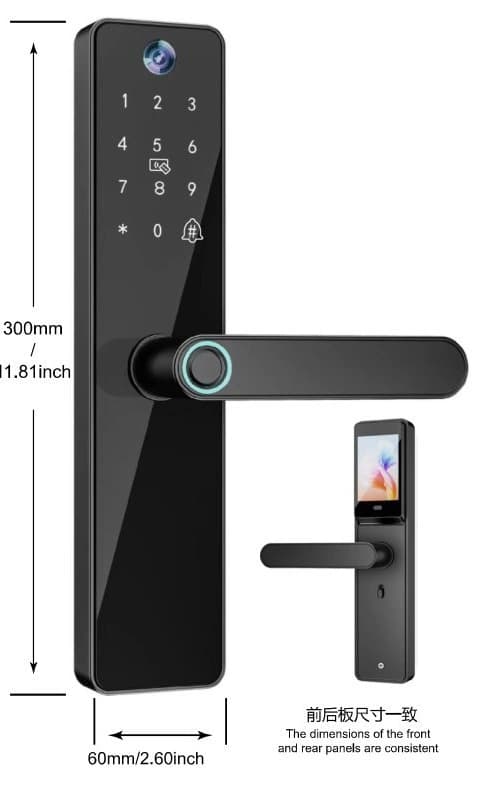

Panel dimensions	Front and rear: 300 × 60 mm (height × width)
Lock body / mortise	5050 mortise (standard); 5072 mortise (optional). Confirm dimensions and door preparation.

Video, display and voice
Display	3.5-inch display
Camera	1 MP camera
Languages	Chinese, English, Vietnamese, Portuguese, Arabic, Russian, Thai, Spanish, Indonesian

Procurement
Certification	CE / FCC / RoHS available depending on selected model.
MOQ	Varies by model and customization
Lead time	Sample and bulk lead time confirmed by order details

OEM/ODM Support

Build this model for your brand or project channel

GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.

Logo and private label packaging

Model-specific app and wireless configuration

Sample testing before bulk order

Export documents and QC support

FAQ

Is Tuya included with every RS60HY order?

The catalogue identifies a Tuya-marked or Tuya-optional model. Confirm the app, wireless configuration, access functions and sample version before ordering.

What door measurements are needed for RS60HY?

The catalogue lists 35–60 mm door thickness. Also send the door material, existing cutout, handing and mortise measurements; panel dimensions alone do not prove installation compatibility.

Can RS60HY be supplied for my brand?

Logo, finish, packaging and selected function options can be discussed. MOQ, available documents, sample cost and lead time are confirmed against the selected version and order requirements.
