P30 catalogue reference
P30 · Lever Smart Locks

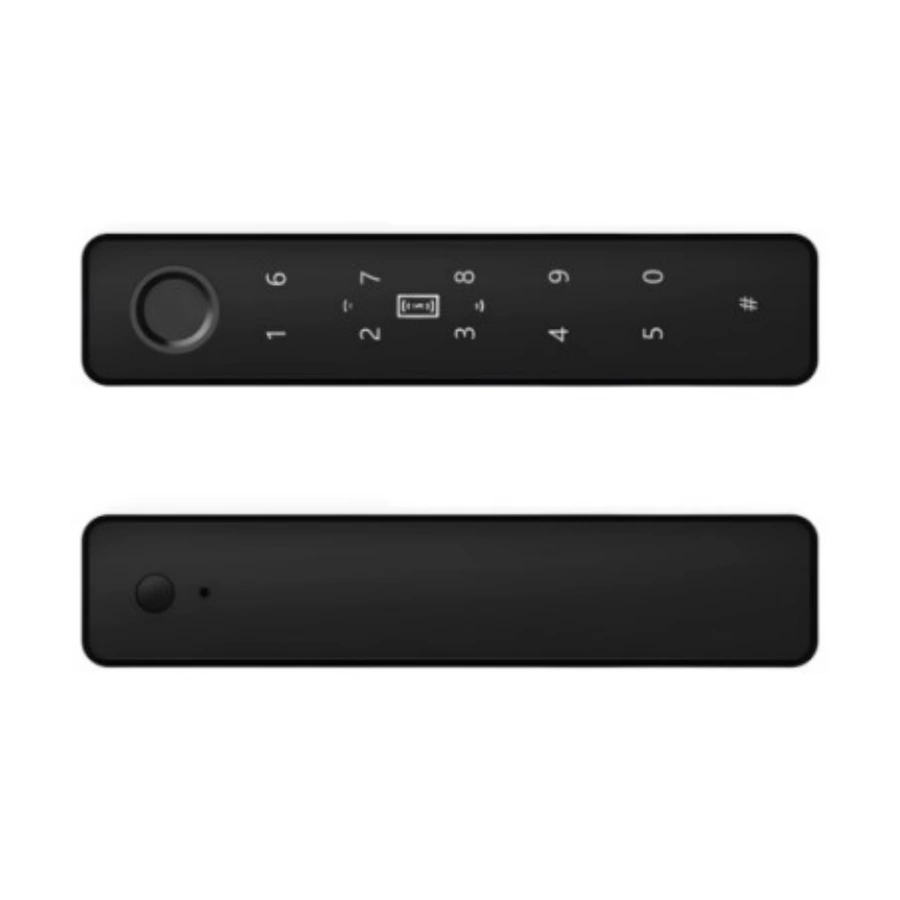

P30 Handle Smart Lock
Slim 32 mm keypad handle from the Eco series, with 50 fingerprint and 100 passcode/card slots plus mechanical-key access; confirm the selected zinc or aluminum material version.
Catalogue access
Fingerprint, Passcode, RF card
App option
Standalone / Tuya (Bluetooth). Select one configuration; availability must be confirmed.
Power
6 V (4 × AAA alkaline batteries)
Door thickness
30–50 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- Fingerprint access listed for this model
- Passcode access listed for this model
- RF card access listed for this model
- Mechanical key access listed for this model
- Sample available for testing and evaluation
Suitable Applications
- Apartment
- Office
- Residential door project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)
Catalogue specifications
P30 model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | P30 |
|---|---|
| Product type | Handle |
| Catalogue access functions | Fingerprint, Passcode, RF card, Mechanical key |
| App option | Standalone / Tuya (Bluetooth). Select one configuration; availability must be confirmed. |
| Communication | Tuya Bluetooth version. Select one version. |
| App versions | Standalone, Tuya |
|---|---|
| Catalogue versions | Standalone, Tuya (Bluetooth) |
| Fingerprints | 50 |
|---|---|
| Passwords | 100 |
| Cards | 100 |
| Power supply | 6 V (4 × AAA alkaline batteries) |
|---|---|
| Material | Zinc alloy / aluminum alloy (confirm selected version) |
| Finish | Confirm selected finish |
| Door type | Wood, metal and PVC doors |
|---|---|
| Door thickness | 30–50 mm |

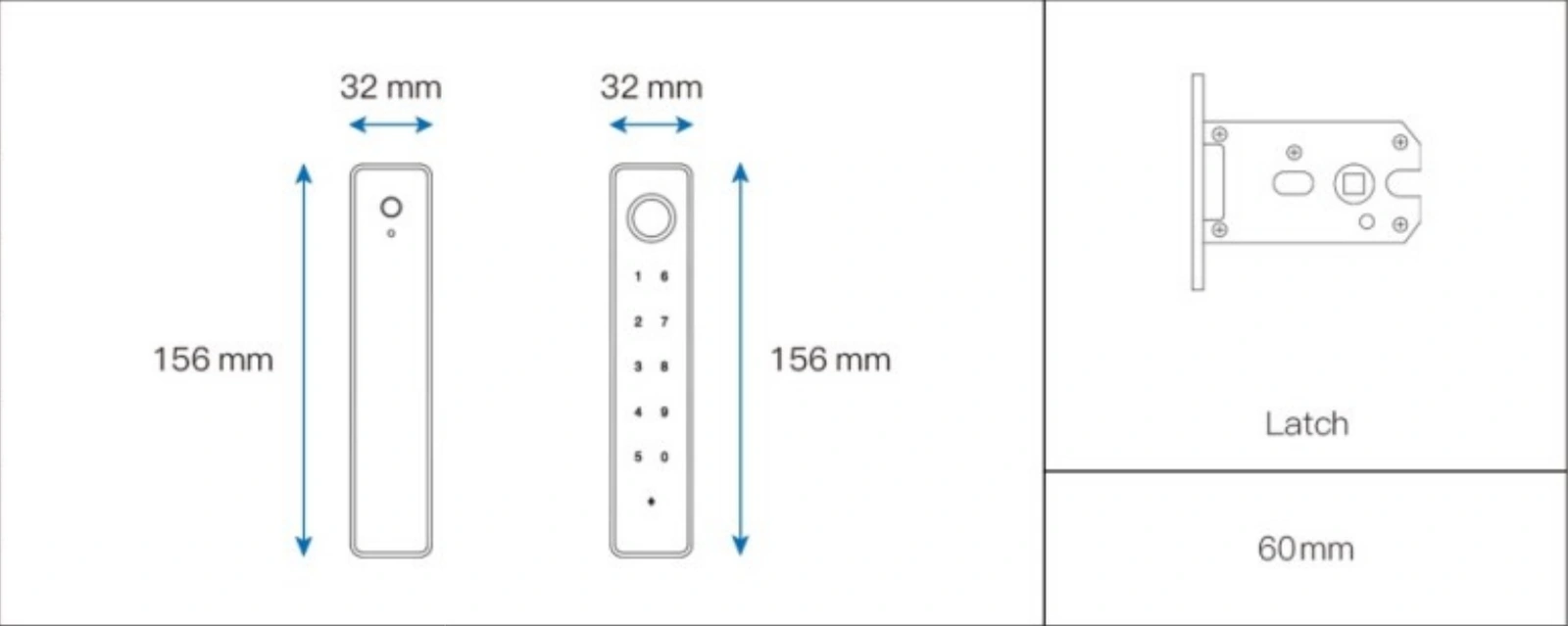

| Panel dimensions | Front and rear: 156 × 32 mm (height × width) |
| Lock body / mortise | 60 mm latch backset; confirm door preparation |
| Voice guidance | Not supported |
|---|
| Box dimensions | 230 × 174 × 54 mm |
|---|---|
| Box weight | 1.15 kg |
| Carton dimensions | 480 × 365 × 240 mm |
| Units per carton | 16 |
| Carton weight | 19 kg |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which P30 configuration should I request?
The source lists Standalone, Tuya (Bluetooth). These are version choices; confirm the exact access, app and network configuration for the sample.
What should I confirm before ordering P30?
Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 30–50 mm; evaluate a sample on the intended door before a bulk order.
