P18 catalogue reference
P18 · Panel Smart Locks

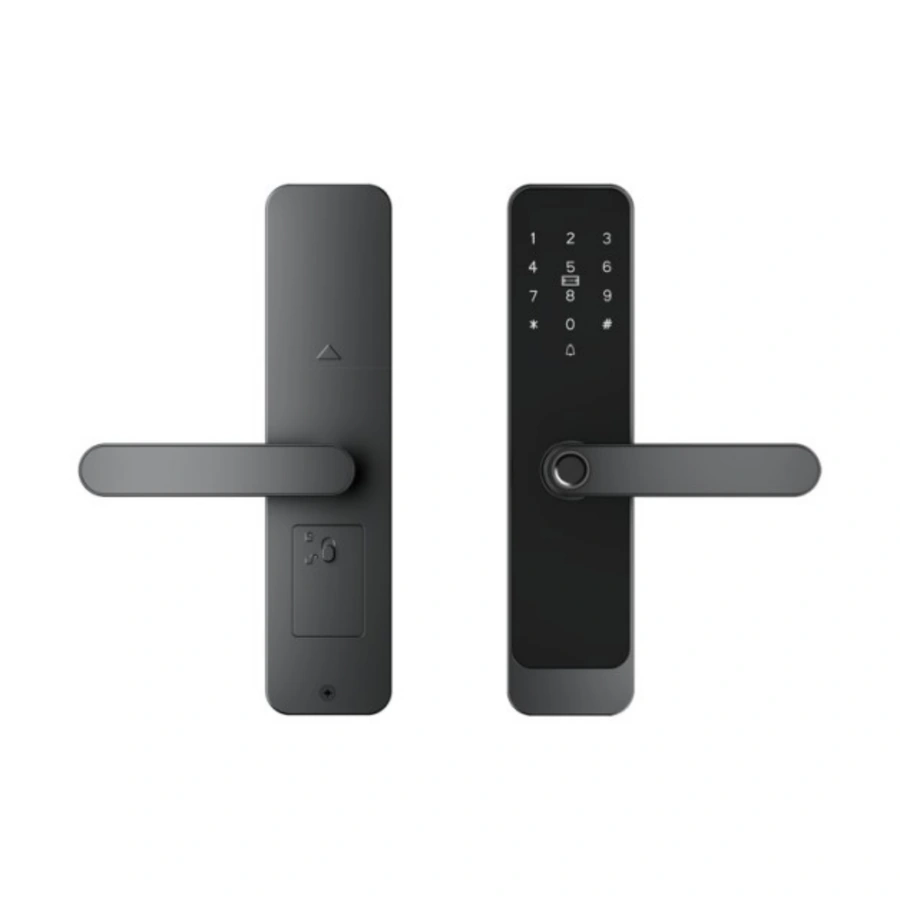

P18 Panel Smart Lock
A 260 mm panel lever model with rechargeable lithium power and Chinese/English voice guidance; app configuration and freight packing require version selection.
Catalogue access
Fingerprint, Passcode, RF card
App option
Standalone (Wi-Fi; confirm configuration) / Tuya (Bluetooth). Select one configuration; availability must be confirmed.
Power
7.4 V rechargeable lithium battery
Door thickness
35–65 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- Fingerprint access listed for this model
- Passcode access listed for this model
- RF card access listed for this model
- Mechanical key access listed for this model
- Catalogue-listed multilingual voice guidance; confirm language firmware
- Sample available for testing and evaluation
Suitable Applications
- Apartment
- Office
- Residential door project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)

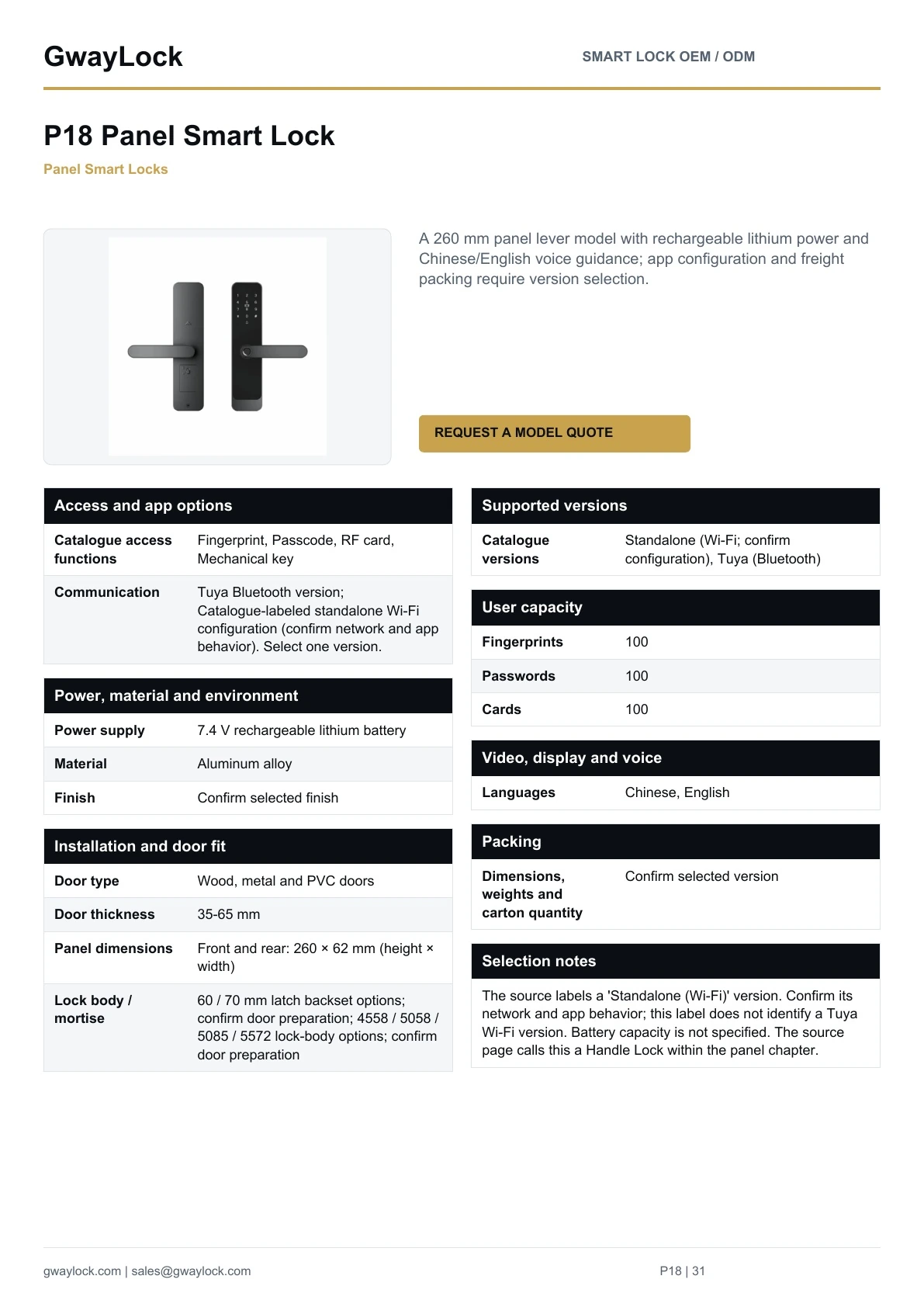

Catalogue specifications
P18 model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | P18 |
|---|---|
| Product type | Panel |
| Catalogue access functions | Fingerprint, Passcode, RF card, Mechanical key |
| App option | Standalone (Wi-Fi; confirm configuration) / Tuya (Bluetooth). Select one configuration; availability must be confirmed. |
| Communication | Tuya Bluetooth version; Catalogue-labeled standalone Wi-Fi configuration (confirm network and app behavior). Select one version. |
| App versions | Standalone, Tuya |
|---|---|
| Catalogue versions | Standalone (Wi-Fi; confirm configuration), Tuya (Bluetooth) |
| Fingerprints | 100 |
|---|---|
| Passwords | 100 |
| Cards | 100 |
| Power supply | 7.4 V rechargeable lithium battery |
|---|---|
| Material | Aluminum alloy |
| Finish | Confirm selected finish |
| Door type | Wood, metal and PVC doors |
|---|---|
| Door thickness | 35–65 mm |

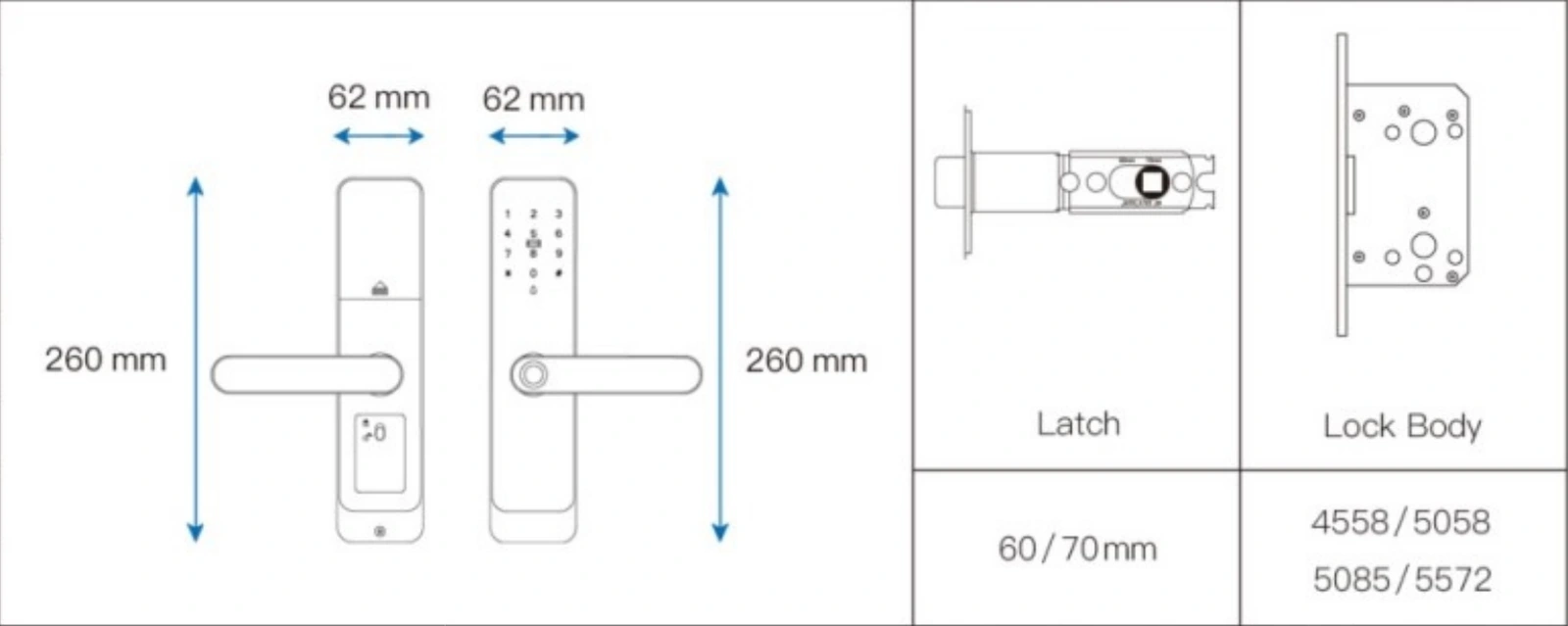

| Panel dimensions | Front and rear: 260 × 62 mm (height × width) |
| Lock body / mortise | 60 / 70 mm latch backset options; confirm door preparation; 4558 / 5058 / 5085 / 5572 lock-body options; confirm door preparation |
| Languages | Chinese, English |
|---|
| Voice guidance | Chinese, English |
|---|
| Box dimensions | Confirm selected version |
|---|---|
| Box weight | Confirm selected version |
| Carton dimensions | Confirm selected version |
| Units per carton | Confirm selected version |
| Carton weight | Confirm selected version |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which P18 configuration should I request?
The source lists Standalone (Wi-Fi; confirm configuration), Tuya (Bluetooth). These are version choices; confirm the exact access, app and network configuration for the sample.
What should I confirm before ordering P18?
Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 35–65 mm; evaluate a sample on the intended door before a bulk order.
