P15 catalogue reference
P15 · Panel Smart Locks

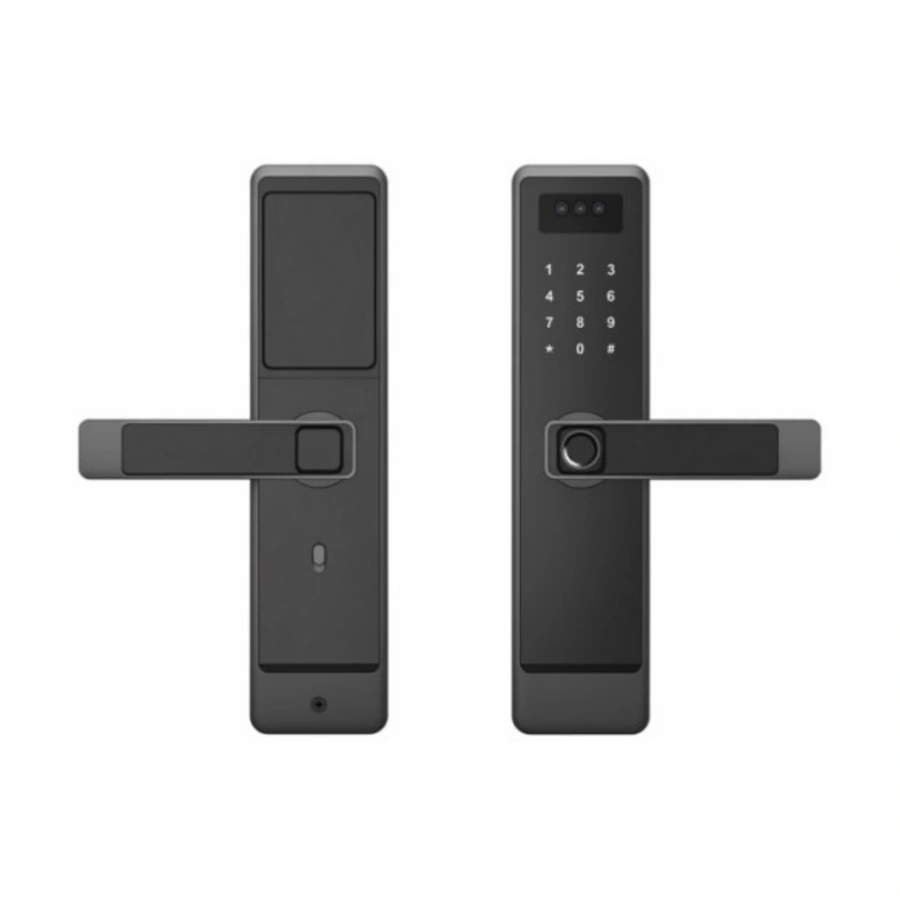

P15 Panel Smart Lock
Face-capable 270 mm panel lever model with 100 face slots and two 18650 lithium batteries; confirm the source-listed standalone Wi-Fi configuration.
Catalogue access
Face recognition, Fingerprint, Passcode
App option
Standalone (Wi-Fi; confirm configuration). Select one configuration; availability must be confirmed.
Power
7.4 V (2 × 18650 lithium batteries)
Door thickness
35–65 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- Face recognition access listed for this model
- Fingerprint access listed for this model
- Passcode access listed for this model
- RF card access listed for this model
- Mechanical key access listed for this model
- Catalogue-listed multilingual voice guidance; confirm language firmware
- Sample available for testing and evaluation
Suitable Applications
- Apartment
- Office
- Residential door project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)
Catalogue specifications

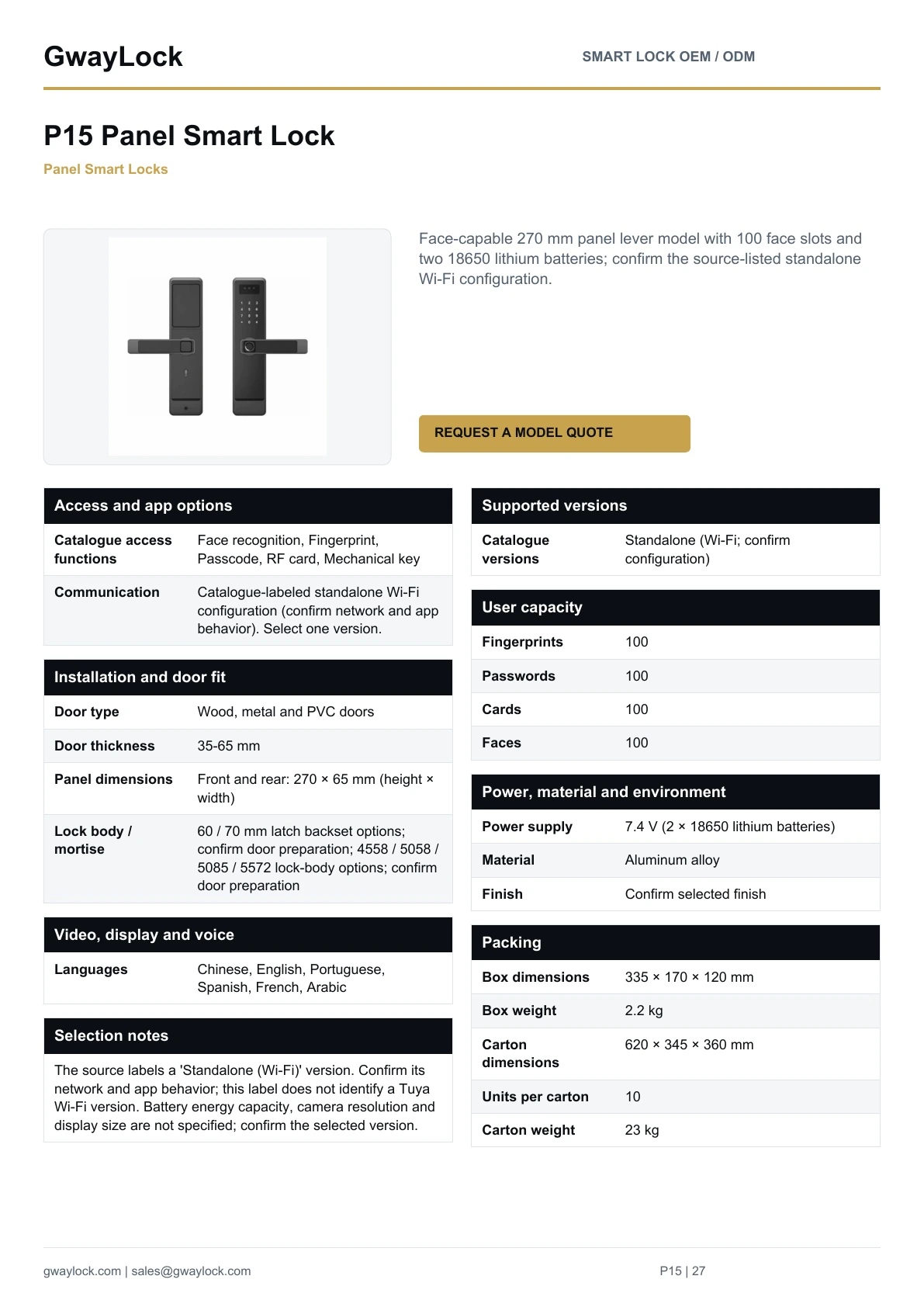

P15 model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | P15 |
|---|---|
| Product type | Panel |
| Catalogue access functions | Face recognition, Fingerprint, Passcode, RF card, Mechanical key |
| App option | Standalone (Wi-Fi; confirm configuration). Select one configuration; availability must be confirmed. |
| Communication | Catalogue-labeled standalone Wi-Fi configuration (confirm network and app behavior). Select one version. |
| App versions | Standalone |
|---|---|
| Catalogue versions | Standalone (Wi-Fi; confirm configuration) |
| Fingerprints | 100 |
|---|---|
| Passwords | 100 |
| Cards | 100 |
| Faces | 100 |
| Power supply | 7.4 V (2 × 18650 lithium batteries) |
|---|---|
| Material | Aluminum alloy |
| Finish | Confirm selected finish |
| Door type | Wood, metal and PVC doors |
|---|---|
| Door thickness | 35–65 mm |

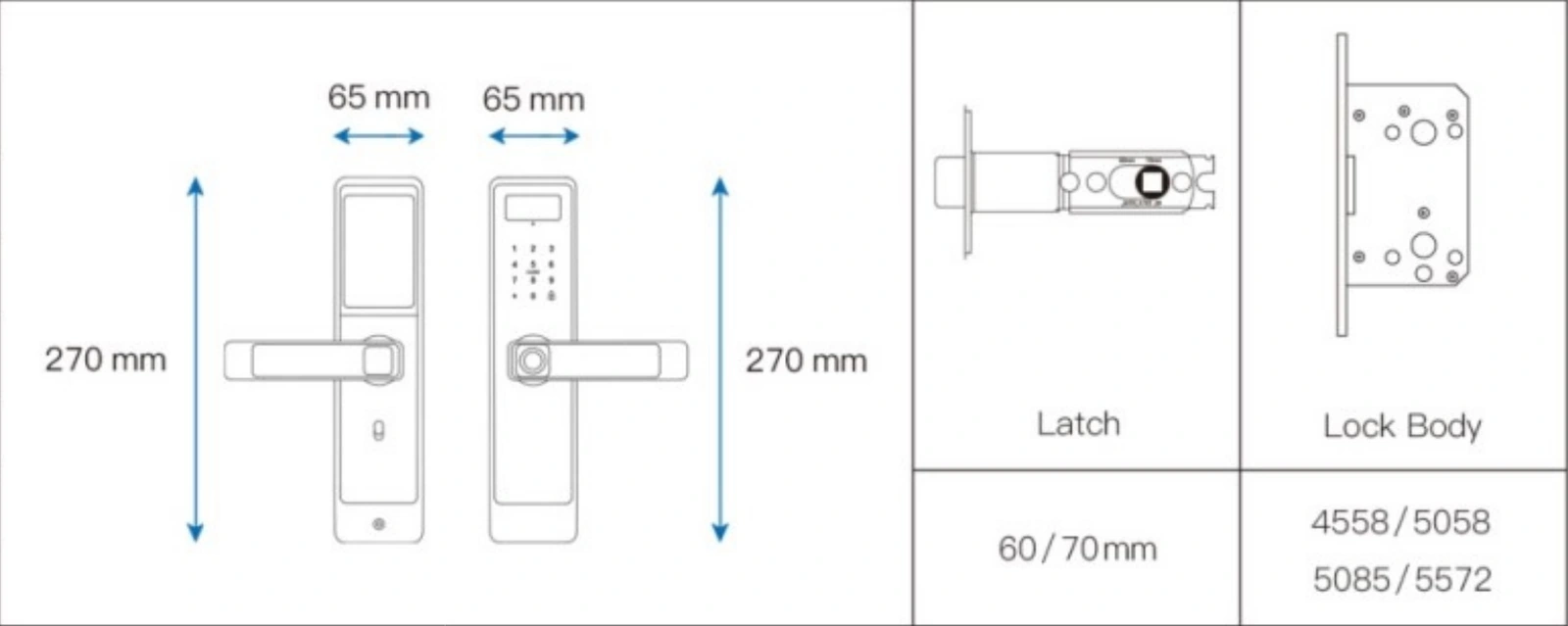

| Panel dimensions | Front and rear: 270 × 65 mm (height × width) |
| Lock body / mortise | 60 / 70 mm latch backset options; confirm door preparation; 4558 / 5058 / 5085 / 5572 lock-body options; confirm door preparation |
| Languages | Chinese, English, Portuguese, Spanish, French, Arabic |
|---|
| Voice guidance | Chinese, English, Portuguese, Spanish, French, Arabic |
|---|
| Box dimensions | 335 × 170 × 120 mm |
|---|---|
| Box weight | 2.2 kg |
| Carton dimensions | 620 × 345 × 360 mm |
| Units per carton | 10 |
| Carton weight | 23 kg |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which P15 configuration should I request?
The source lists Standalone (Wi-Fi; confirm configuration). These are version choices; confirm the exact access, app and network configuration for the sample.
What should I confirm before ordering P15?
Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 35–65 mm; evaluate a sample on the intended door before a bulk order.
