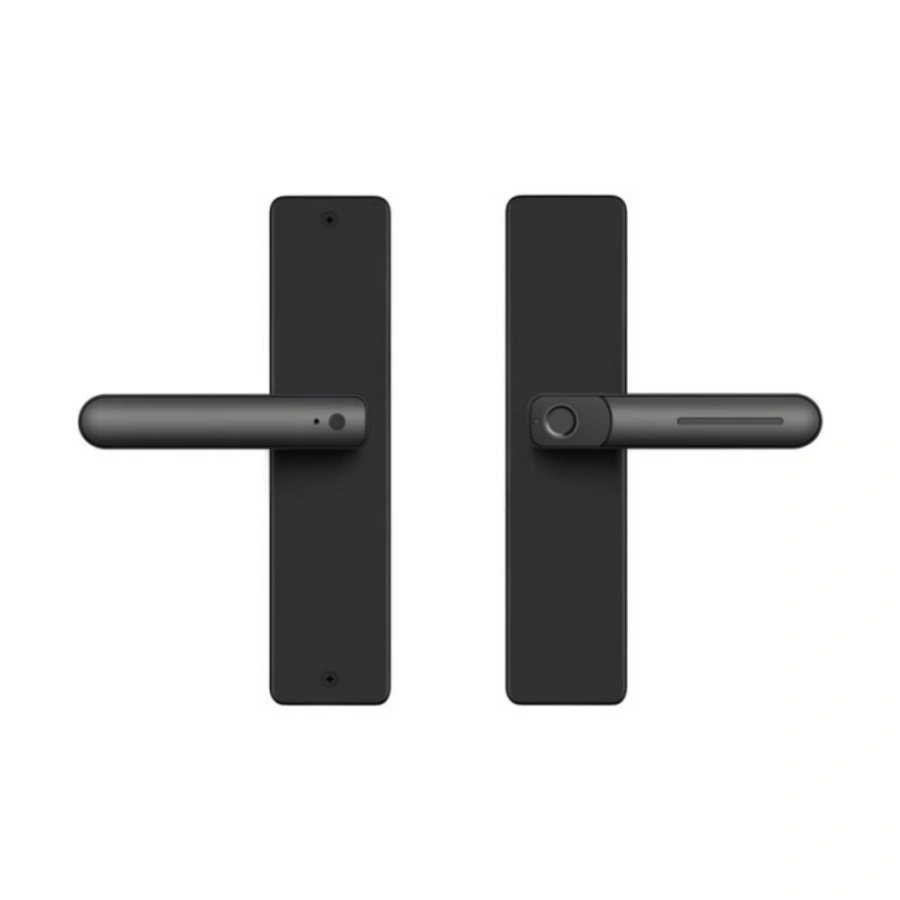

L130 Panel Smart Lock
A 245 mm panel with a fingerprint handle and 50 fingerprint slots, available in separate standalone, Tuya Bluetooth and TTLock versions.
Catalogue access
Fingerprint, Mechanical key
App option
Standalone / Tuya (Bluetooth) / TTLock. Select one configuration; availability must be confirmed.
Power
6 V (4 × AAA alkaline batteries)
Door thickness
30–50 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- Fingerprint access listed for this model
- Mechanical key access listed for this model
- Sample available for testing and evaluation
Suitable Applications
- Apartment
- Office
- Residential door project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)

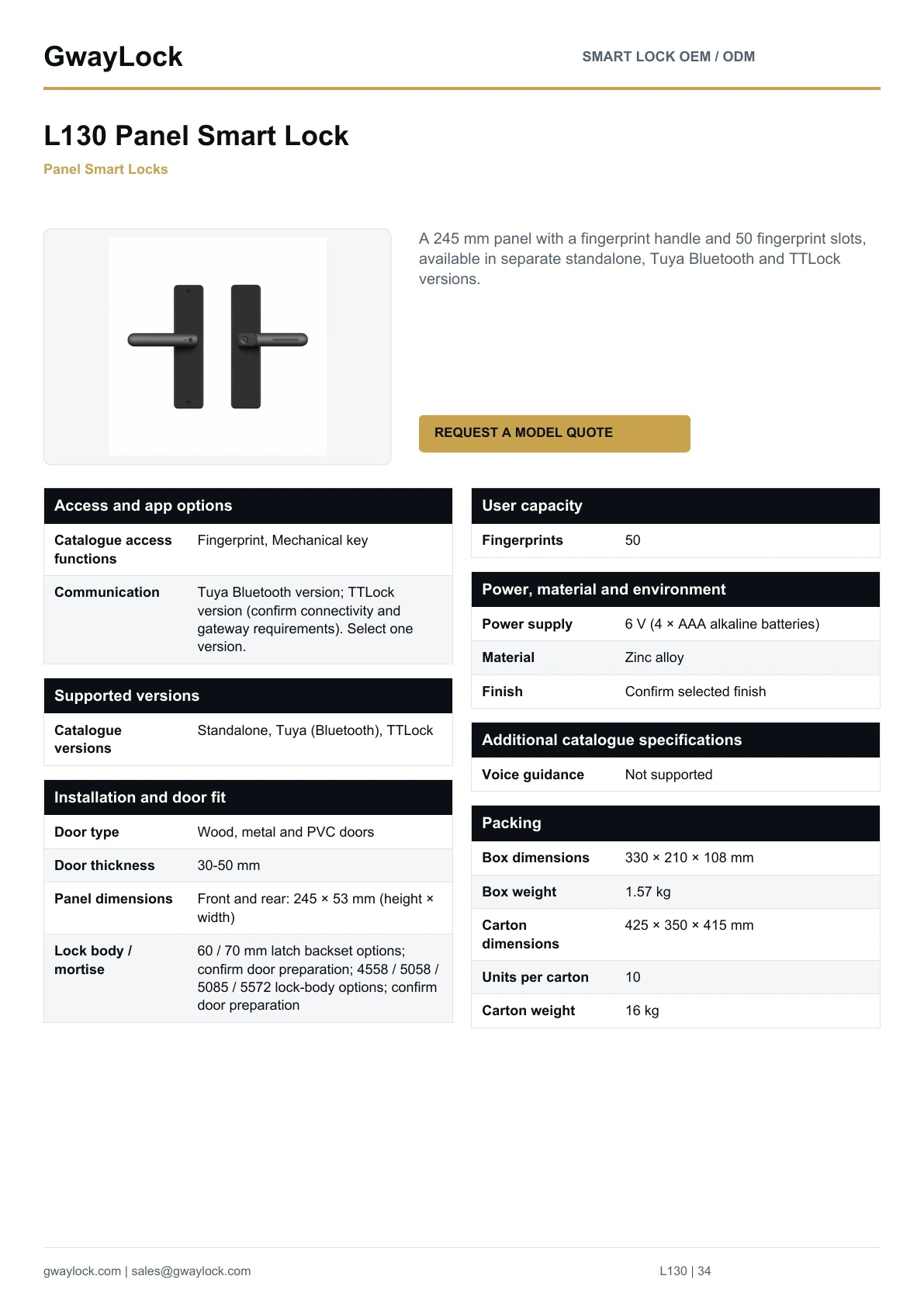

Catalogue specifications
L130 model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | L130 |
|---|---|
| Product type | Panel |
| Catalogue access functions | Fingerprint, Mechanical key |
| App option | Standalone / Tuya (Bluetooth) / TTLock. Select one configuration; availability must be confirmed. |
| Communication | Tuya Bluetooth version; TTLock version (confirm connectivity and gateway requirements). Select one version. |
| App versions | Standalone, Tuya, TTLock |
|---|---|
| Catalogue versions | Standalone, Tuya (Bluetooth), TTLock |
| Fingerprints | 50 |
|---|
| Power supply | 6 V (4 × AAA alkaline batteries) |
|---|---|
| Material | Zinc alloy |
| Finish | Confirm selected finish |
| Door type | Wood, metal and PVC doors |
|---|---|
| Door thickness | 30–50 mm |

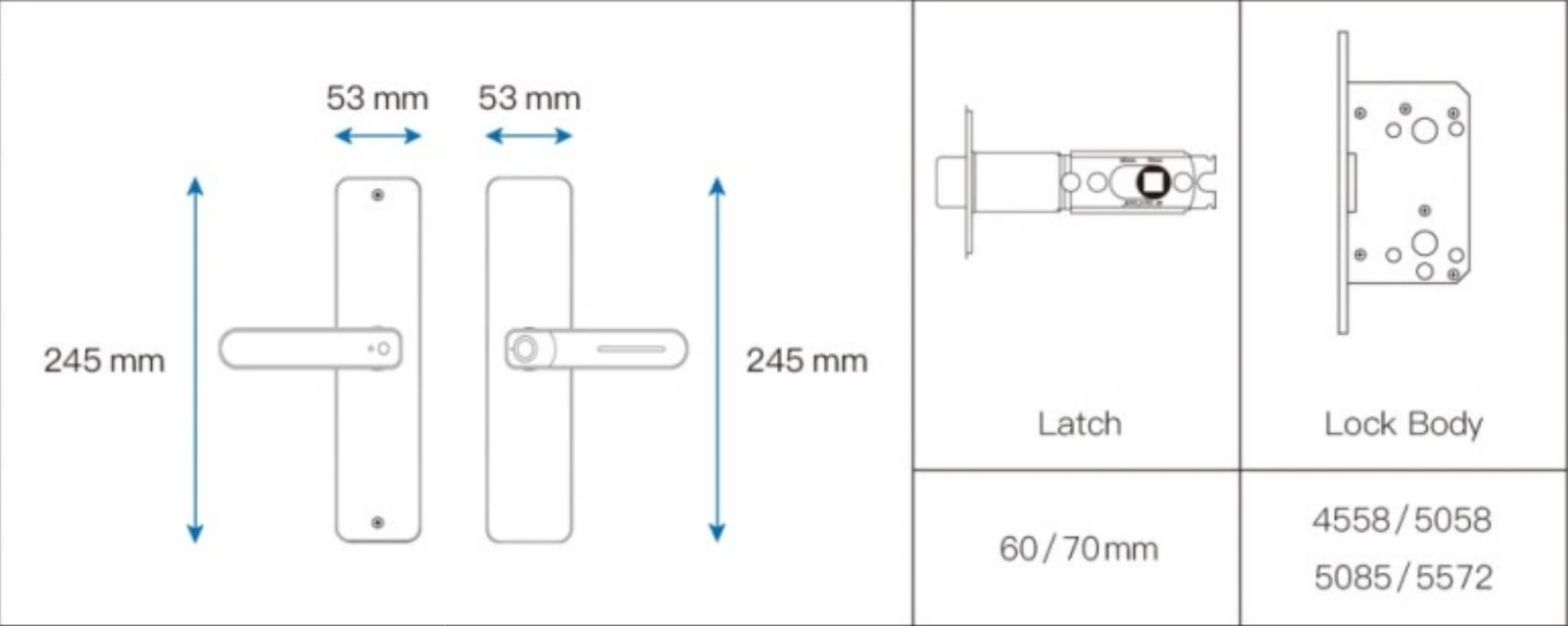

| Panel dimensions | Front and rear: 245 × 53 mm (height × width) |
| Lock body / mortise | 60 / 70 mm latch backset options; confirm door preparation; 4558 / 5058 / 5085 / 5572 lock-body options; confirm door preparation |
| Voice guidance | Not supported |
|---|
| Box dimensions | 330 × 210 × 108 mm |
|---|---|
| Box weight | 1.57 kg |
| Carton dimensions | 425 × 350 × 415 mm |
| Units per carton | 10 |
| Carton weight | 16 kg |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which L130 configuration should I request?
The source lists Standalone, Tuya (Bluetooth), TTLock. These are version choices; confirm the exact access, app and network configuration for the sample.
What should I confirm before ordering L130?
Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 30–50 mm; evaluate a sample on the intended door before a bulk order.
Compare options
Related Products
Panel · Catalogue model

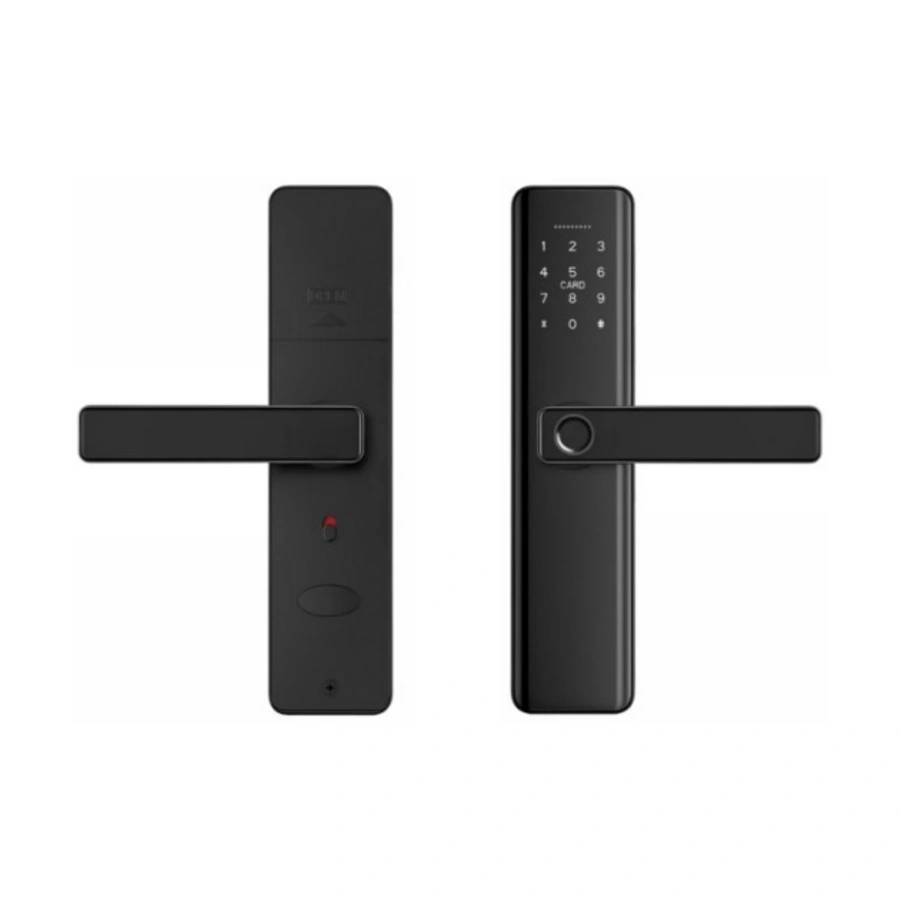

P12 Panel Smart Lock
A 246 mm panel lever lock with six listed voice languages, 100 fingerprint/passcode/card slots and multiple separate catalogue versions.
- App option
- Standalone (Wi-Fi; confirm configuration) / Tuya (Bluetooth) / TTLock. Select one configuration; availability must be confirmed.
- Power
- 6 V (4 × AA alkaline batteries)
- Door thickness
- 35–65 mm
Panel · Catalogue model

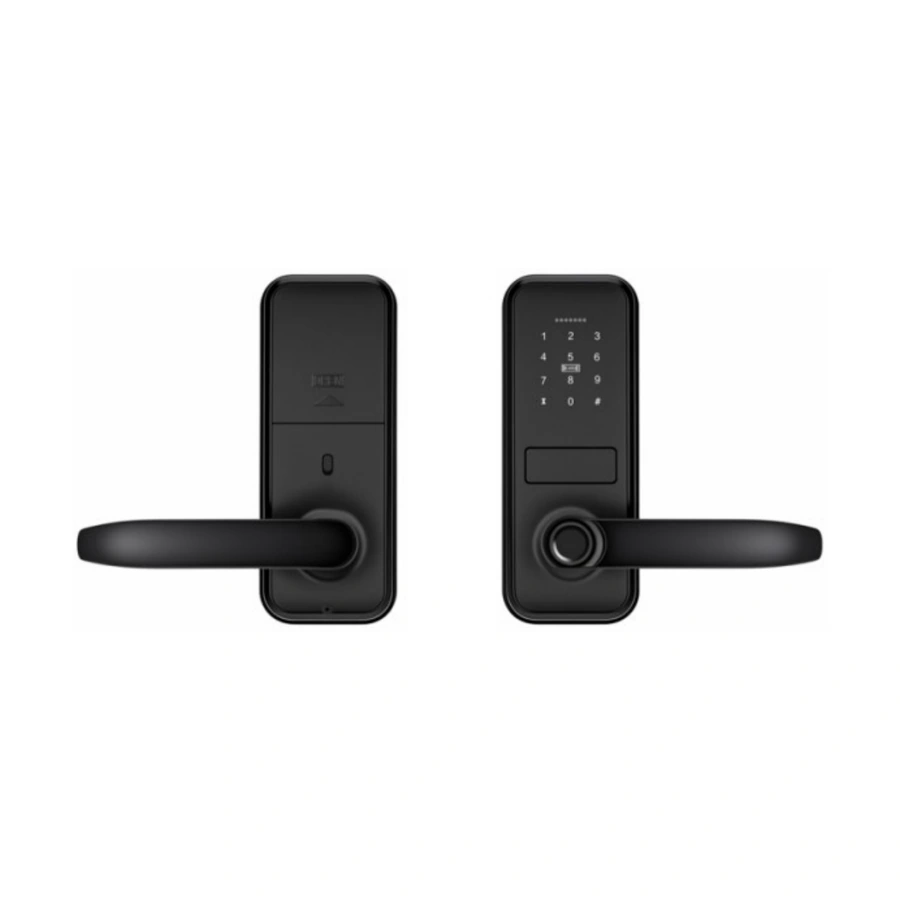

P13 Panel Smart Lock
Compact 181 mm aluminum panel lever model with fingerprint, passcode, card and mechanical-key access for buyers comparing shorter panel formats.
- App option
- Standalone (Wi-Fi; confirm configuration) / Tuya (Bluetooth) / TTLock. Select one configuration; availability must be confirmed.
- Power
- 6 V (4 × AA alkaline batteries)
- Door thickness
- 35–50 mm
Panel · Catalogue model

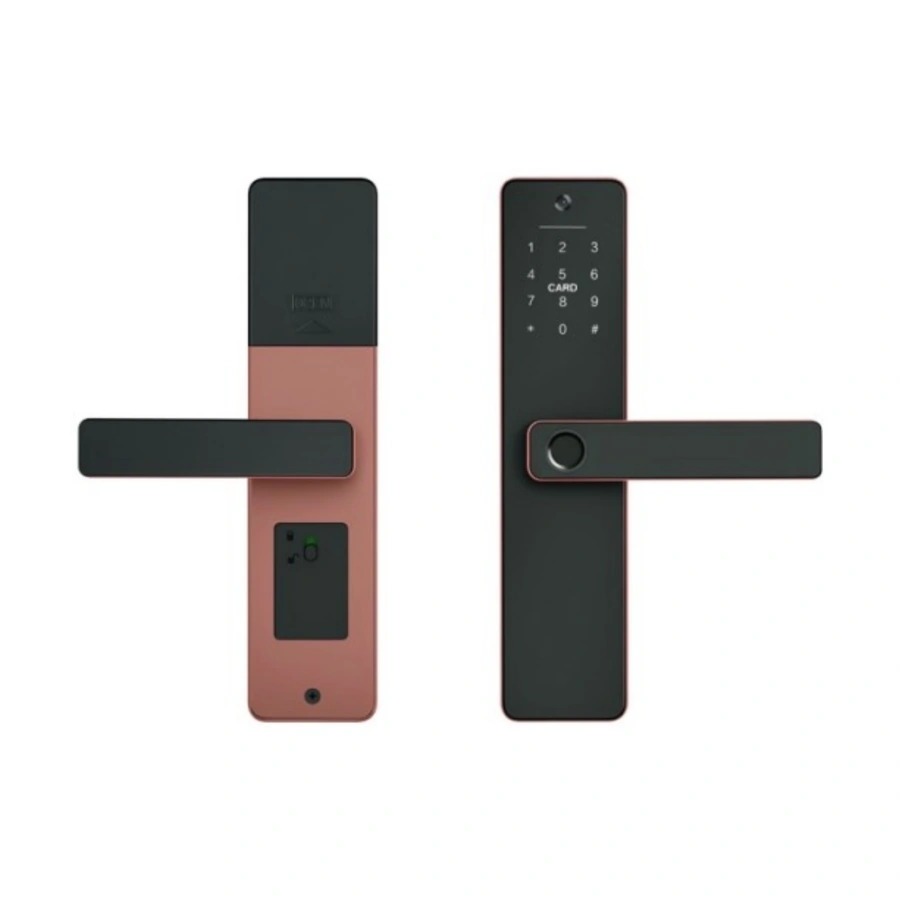

P14 Panel Smart Lock
