H-68 catalogue reference
H-68 · Face Recognition Smart Locks

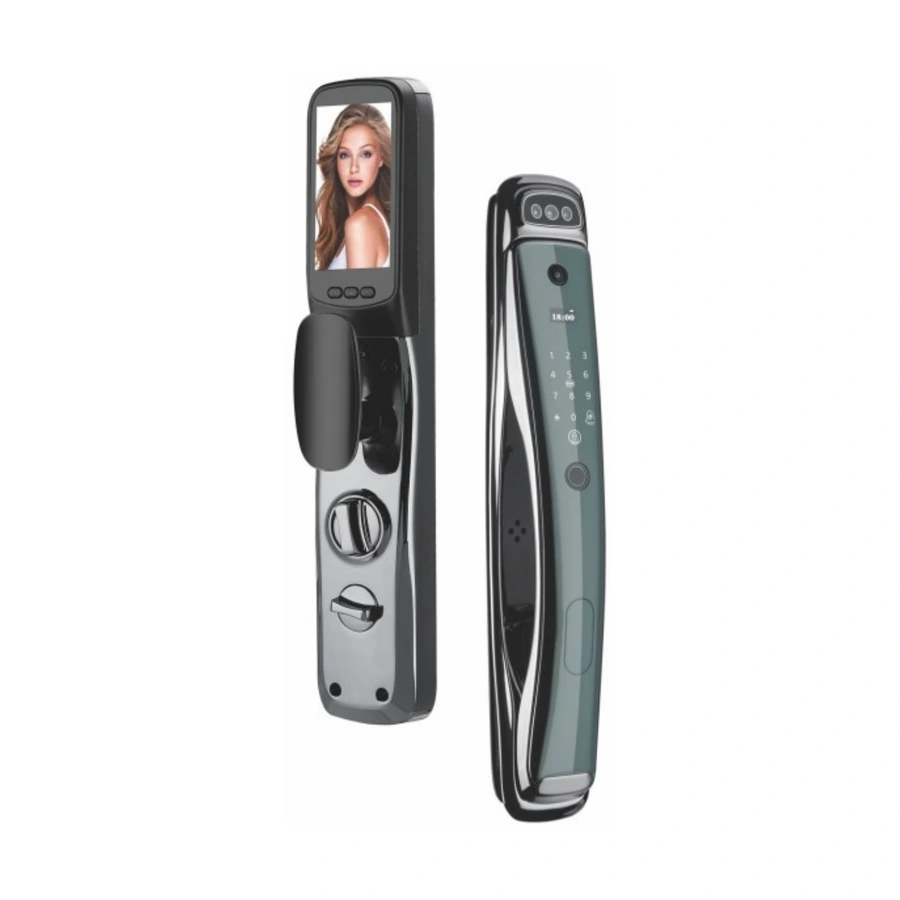

H-68 3D Face Recognition Smart Lock
A 460 mm 3D face-recognition model with a wide-angle camera, indoor HD display and a 4200 mAh battery specification for residential project sourcing.
Catalogue access
3D face recognition, Fingerprint, Passcode
App option
Tuya (Wi-Fi; confirm configuration). Select one configuration; availability must be confirmed.
Power
4200 mAh battery (chemistry to be confirmed)
Door thickness
40–120 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- 3D face recognition access listed for this model
- Fingerprint access listed for this model
- Passcode access listed for this model
- RF card access listed for this model
- Mechanical key access listed for this model
- IMD-coated panel
- Dual verification configuration
- USB emergency power
- Sample available for testing and evaluation
Suitable Applications
- Apartment
- Office
- Residential door project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)
Catalogue specifications

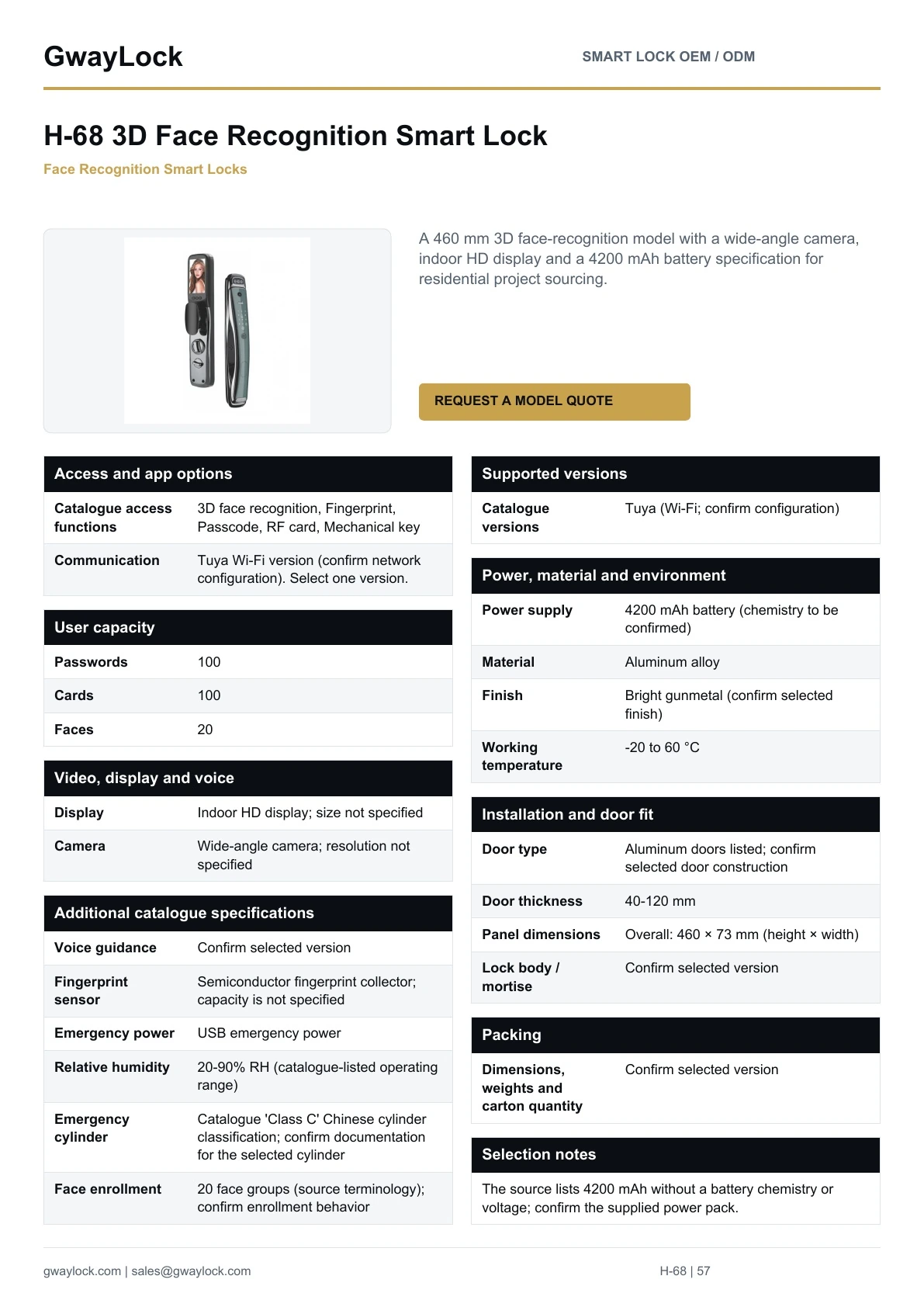

H-68 model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | H-68 |
|---|---|
| Product type | Face recognition |
| Catalogue access functions | 3D face recognition, Fingerprint, Passcode, RF card, Mechanical key |
| App option | Tuya (Wi-Fi; confirm configuration). Select one configuration; availability must be confirmed. |
| Communication | Tuya Wi-Fi version (confirm network configuration). Select one version. |
| App versions | Tuya |
|---|---|
| Catalogue versions | Tuya (Wi-Fi; confirm configuration) |
| Passwords | 100 |
|---|---|
| Cards | 100 |
| Faces | 20 |
| Power supply | 4200 mAh battery (chemistry to be confirmed) |
|---|---|
| Material | Aluminum alloy |
| Finish | Bright gunmetal (confirm selected finish) |
| Working temperature | −20 to 60 °C |
| Door type | Aluminum doors listed; confirm selected door construction |
|---|---|
| Door thickness | 40–120 mm |
| Panel dimensions | Overall: 460 × 73 mm (height × width) |
| Lock body / mortise | Confirm selected version |
| Display | Indoor HD display; size not specified |
|---|---|
| Camera | Wide-angle camera; resolution not specified |
| Voice guidance | Confirm selected version |
|---|---|
| Fingerprint sensor | Semiconductor fingerprint collector; capacity is not specified |
| Emergency power | USB emergency power |
| Relative humidity | 20–90% RH (catalogue-listed operating range) |
| Emergency cylinder | Catalogue 'Class C' Chinese cylinder classification; confirm documentation for the selected cylinder |
| Face enrollment | 20 face groups (source terminology); confirm enrollment behavior |
| Box dimensions | Confirm selected version |
|---|---|
| Box weight | Confirm selected version |
| Carton dimensions | Confirm selected version |
| Units per carton | Confirm selected version |
| Carton weight | Confirm selected version |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which H-68 configuration should I request?
The source lists Tuya (Wi-Fi; confirm configuration). These are version choices; confirm the exact access, app and network configuration for the sample.
What should I confirm before ordering H-68?
Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 40–120 mm; evaluate a sample on the intended door before a bulk order.
