BX02 · Panel Smart Locks

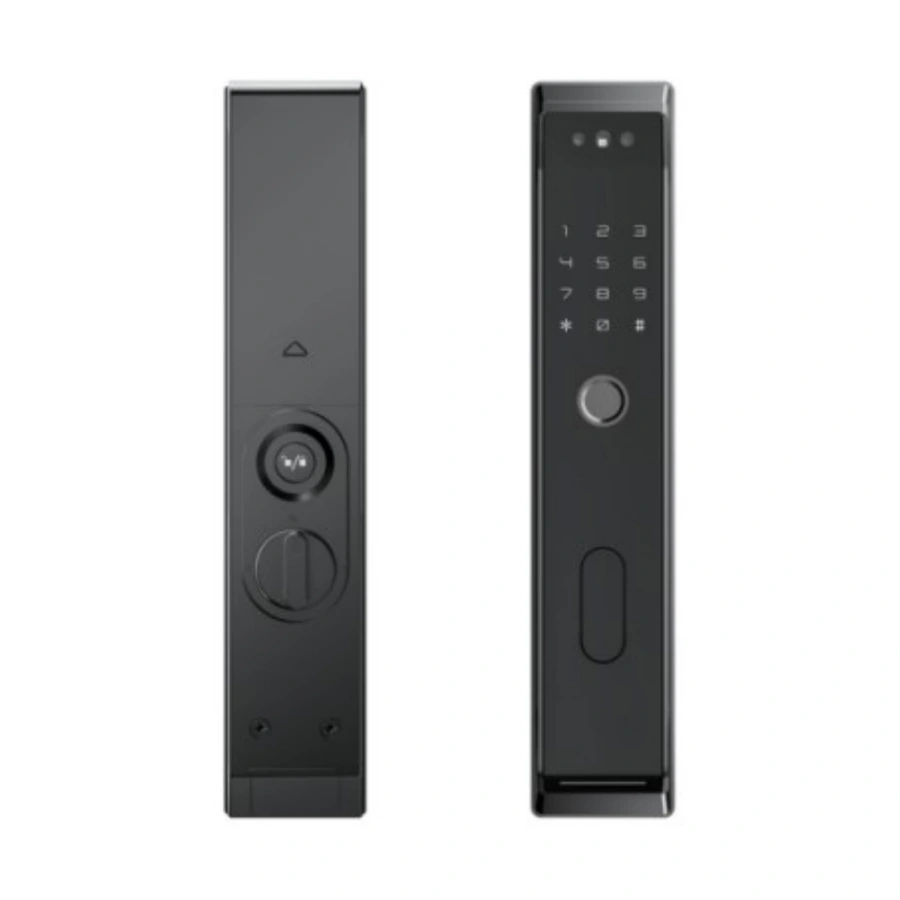

BX02 Panel Smart Lock
A 280 mm standalone panel model with 100 face slots and fingerprint, passcode, card and key access; no app version is listed for BX02.
Catalogue access
Face recognition, Fingerprint, Passcode
App option
Standalone. Select one configuration; availability must be confirmed.
Power
7 V (1 × rechargeable lithium battery)
Door thickness
35–65 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- Face recognition access listed for this model
- Fingerprint access listed for this model
- Passcode access listed for this model
- RF card access listed for this model
- Mechanical key access listed for this model
- Catalogue-listed multilingual voice guidance; confirm language firmware
- Sample available for testing and evaluation
Suitable Applications
- Apartment
- Office
- Residential door project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)
Catalogue specifications

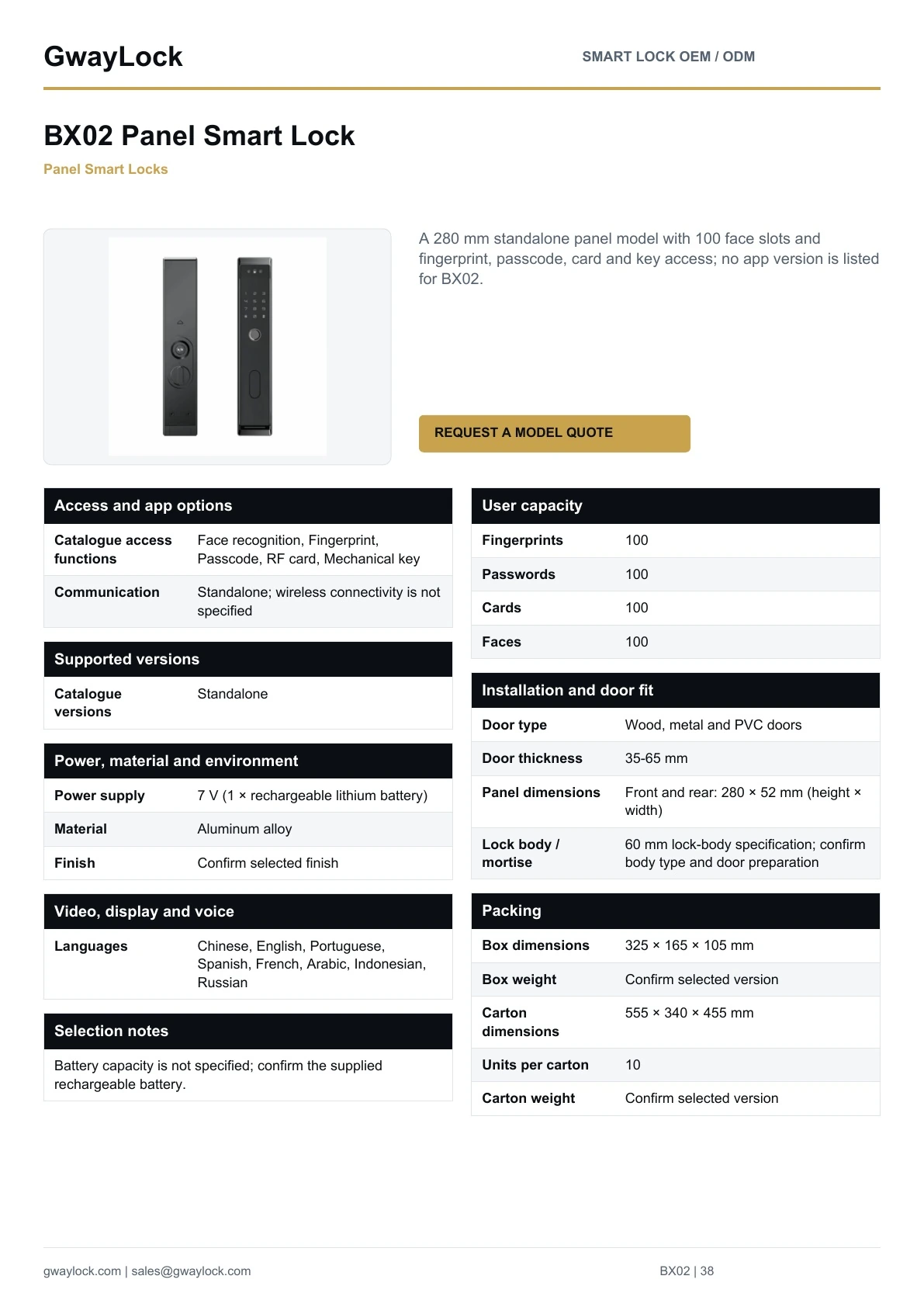

BX02 model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | BX02 |
|---|---|
| Product type | Panel |
| Catalogue access functions | Face recognition, Fingerprint, Passcode, RF card, Mechanical key |
| App option | Standalone. Select one configuration; availability must be confirmed. |
| Communication | Standalone; wireless connectivity is not specified |
| App versions | Standalone |
|---|---|
| Catalogue versions | Standalone |
| Fingerprints | 100 |
|---|---|
| Passwords | 100 |
| Cards | 100 |
| Faces | 100 |
| Power supply | 7 V (1 × rechargeable lithium battery) |
|---|---|
| Material | Aluminum alloy |
| Finish | Confirm selected finish |
| Door type | Wood, metal and PVC doors |
|---|---|
| Door thickness | 35–65 mm |

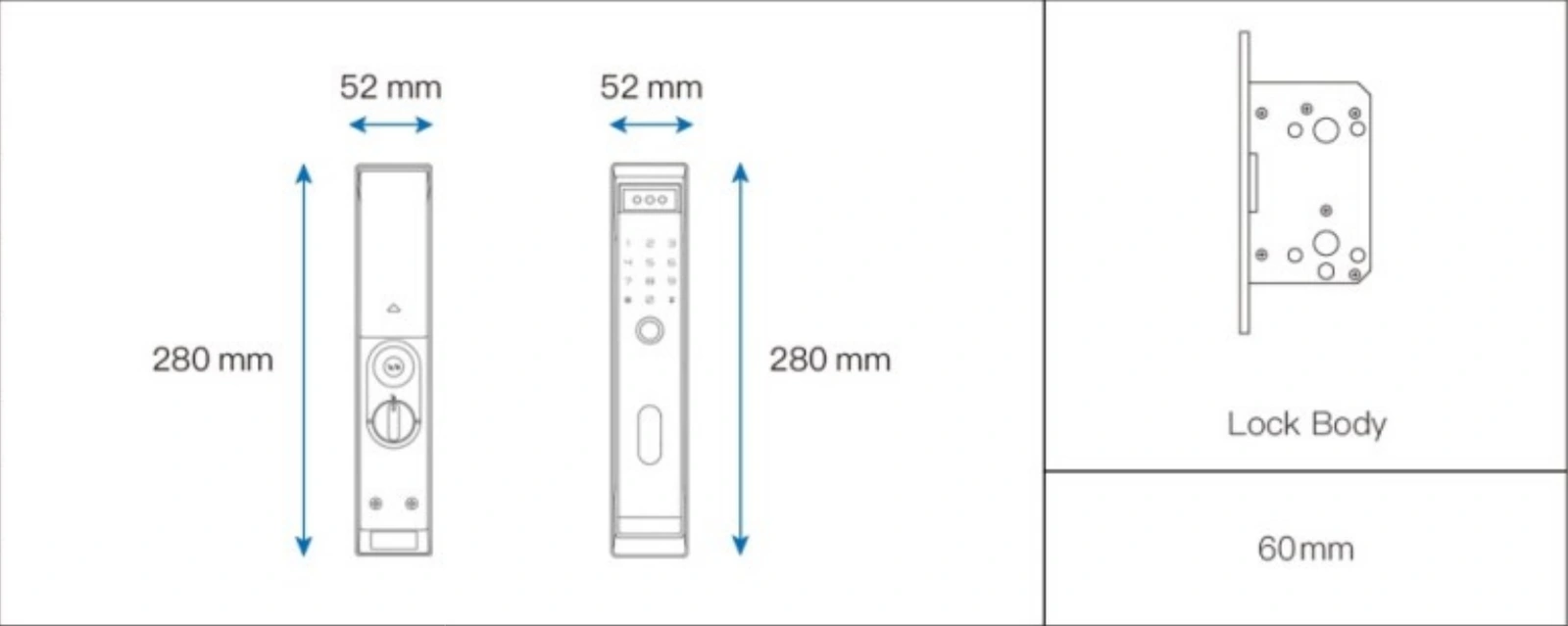

| Panel dimensions | Front and rear: 280 × 52 mm (height × width) |
| Lock body / mortise | 60 mm lock-body specification; confirm body type and door preparation |
| Languages | Chinese, English, Portuguese, Spanish, French, Arabic, Indonesian, Russian |
|---|
| Voice guidance | Chinese, English, Portuguese, Spanish, French, Arabic, Indonesian, Russian |
|---|
| Box dimensions | 325 × 165 × 105 mm |
|---|---|
| Box weight | Confirm selected version |
| Carton dimensions | 555 × 340 × 455 mm |
| Units per carton | 10 |
| Carton weight | Confirm selected version |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which BX02 configuration should I request?
The source lists Standalone. These are version choices; confirm the exact access, app and network configuration for the sample.
What should I confirm before ordering BX02?
Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 35–65 mm; evaluate a sample on the intended door before a bulk order.
