298 catalogue reference
298 · Split Smart Locks

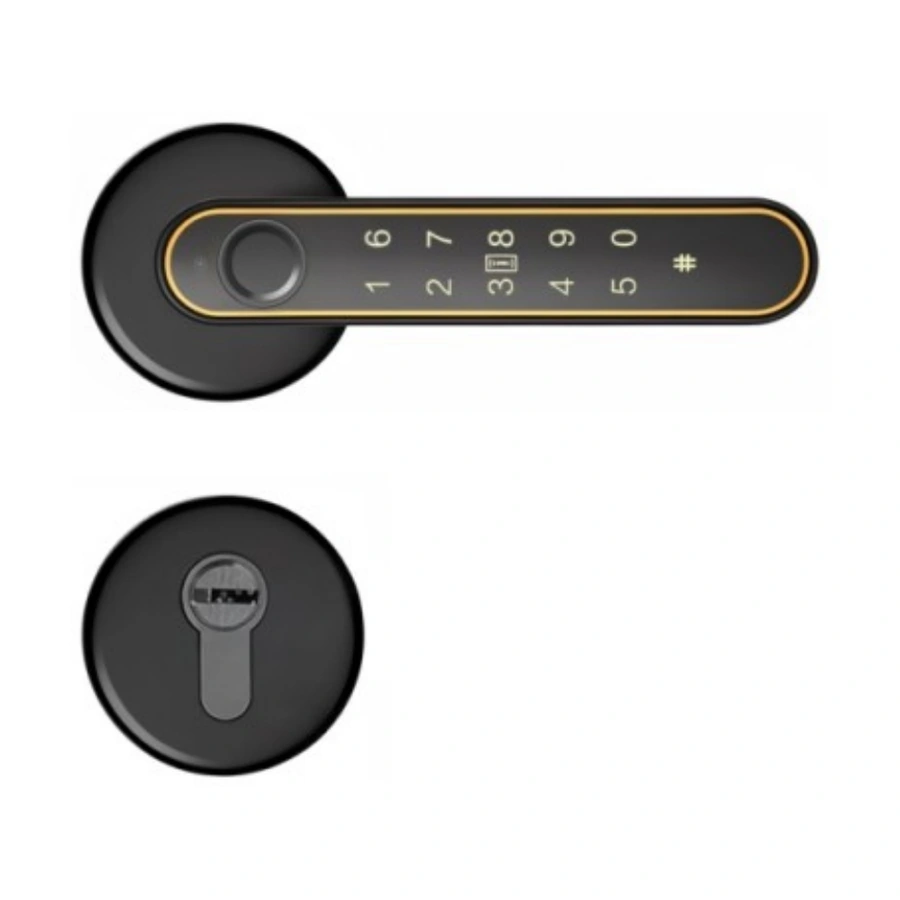

298 Split Smart Lock
A 147 mm split keypad handle with standalone and Tuya Bluetooth versions, four access methods and model-specific carton weight for import planning.
Catalogue access
Fingerprint, Passcode, RF card
App option
Standalone / Tuya (Bluetooth). Select one configuration; availability must be confirmed.
Power
6 V (4 × AAA alkaline batteries)
Door thickness
30–50 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- Fingerprint access listed for this model
- Passcode access listed for this model
- RF card access listed for this model
- Mechanical key access listed for this model
- Sample available for testing and evaluation
Suitable Applications
- Apartment
- Office
- Residential door project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)

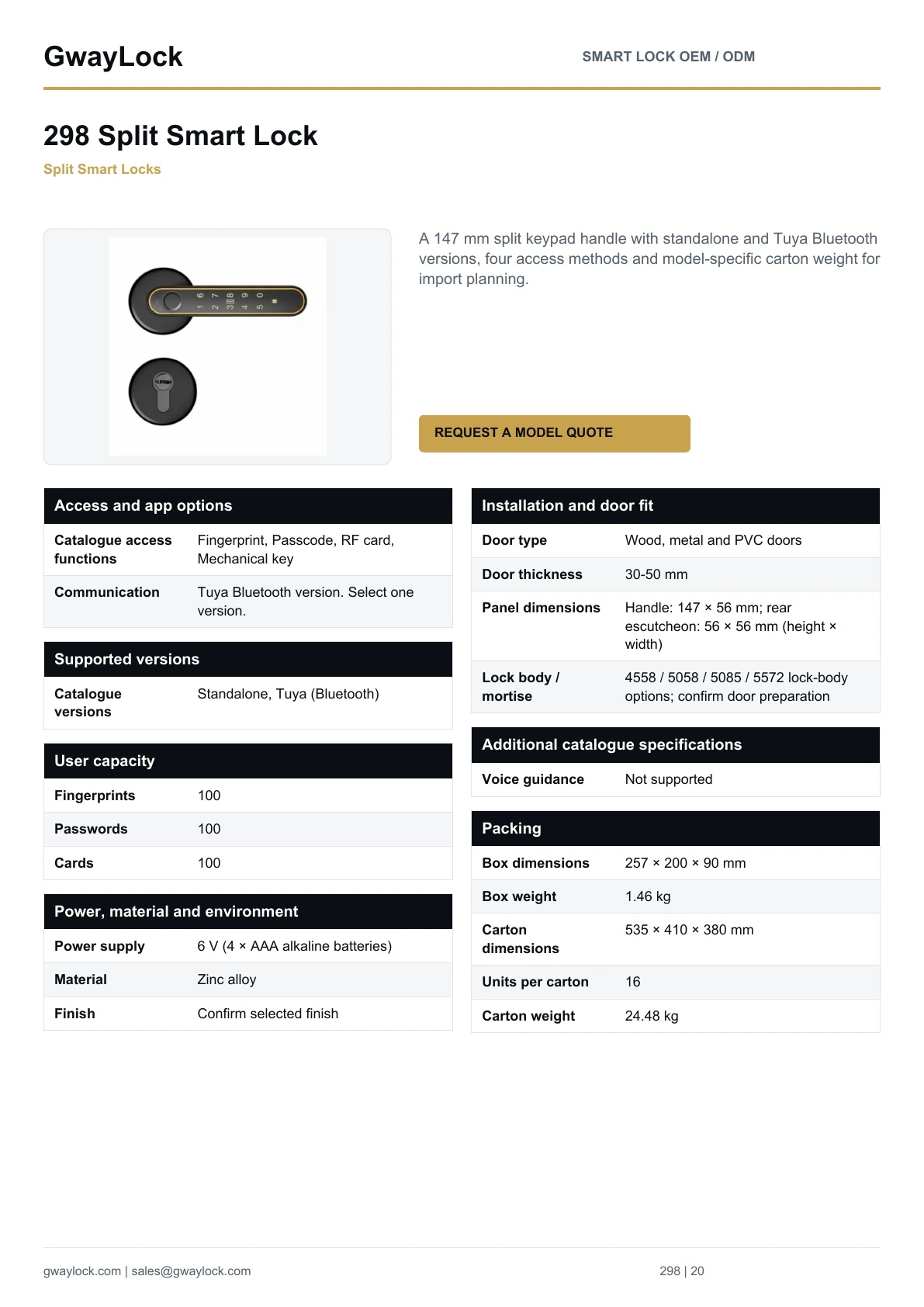

Catalogue specifications
298 model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | 298 |
|---|---|
| Product type | Split |
| Catalogue access functions | Fingerprint, Passcode, RF card, Mechanical key |
| App option | Standalone / Tuya (Bluetooth). Select one configuration; availability must be confirmed. |
| Communication | Tuya Bluetooth version. Select one version. |
| App versions | Standalone, Tuya |
|---|---|
| Catalogue versions | Standalone, Tuya (Bluetooth) |
| Fingerprints | 100 |
|---|---|
| Passwords | 100 |
| Cards | 100 |
| Power supply | 6 V (4 × AAA alkaline batteries) |
|---|---|
| Material | Zinc alloy |
| Finish | Confirm selected finish |
| Door type | Wood, metal and PVC doors |
|---|---|
| Door thickness | 30–50 mm |

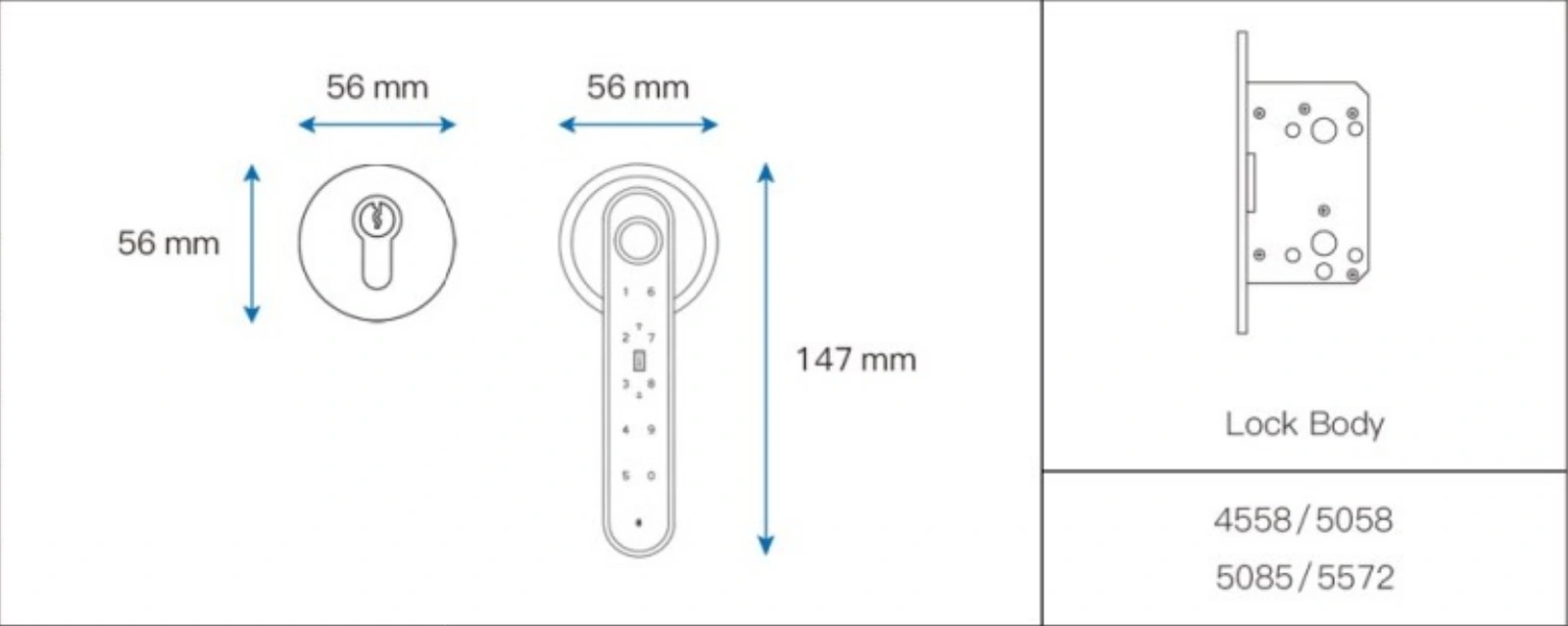

| Panel dimensions | Handle: 147 × 56 mm; rear escutcheon: 56 × 56 mm (height × width) |
| Lock body / mortise | 4558 / 5058 / 5085 / 5572 lock-body options; confirm door preparation |
| Voice guidance | Not supported |
|---|
| Box dimensions | 257 × 200 × 90 mm |
|---|---|
| Box weight | 1.46 kg |
| Carton dimensions | 535 × 410 × 380 mm |
| Units per carton | 16 |
| Carton weight | 24.48 kg |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which 298 configuration should I request?
The source lists Standalone, Tuya (Bluetooth). These are version choices; confirm the exact access, app and network configuration for the sample.
What should I confirm before ordering 298?
Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 30–50 mm; evaluate a sample on the intended door before a bulk order.
