296 catalogue reference
296 · Split Smart Locks

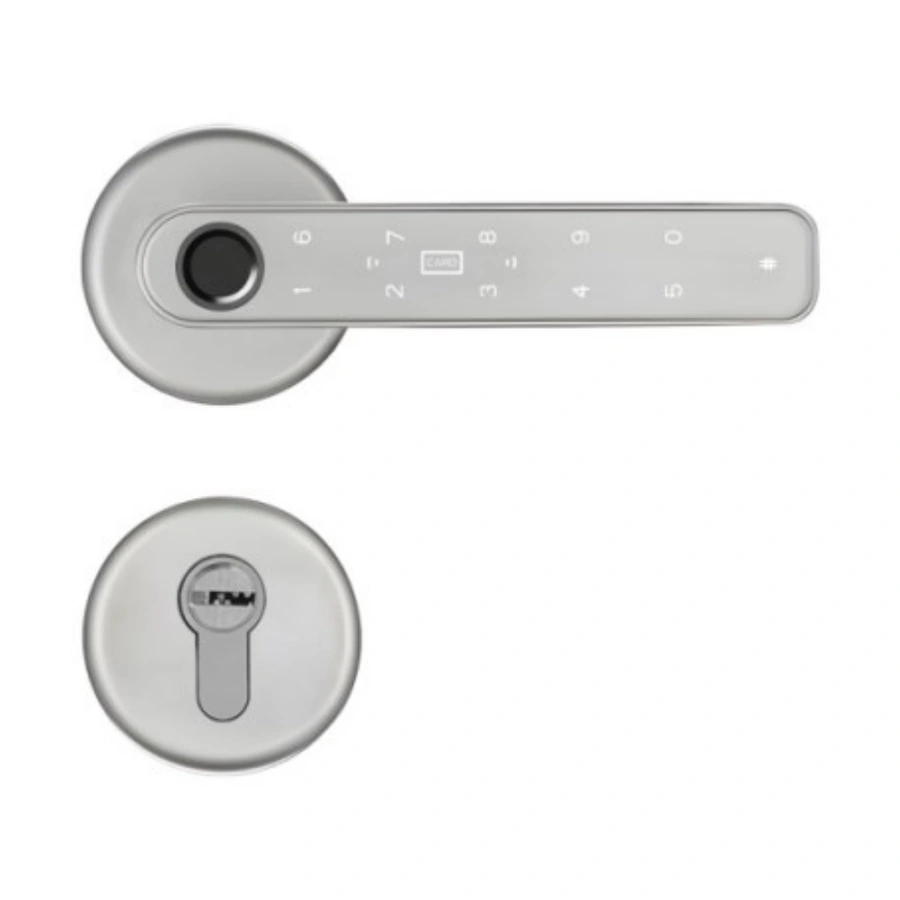

296 Split Smart Lock
Split keypad handle with a compact number layout and 100 slots per electronic credential type; confirm the mortise and door preparation before sampling.
Catalogue access
Fingerprint, Passcode, RF card
App option
Standalone / Tuya (Bluetooth) / TTLock. Select one configuration; availability must be confirmed.
Power
6 V (4 × AAA alkaline batteries)
Door thickness
30–50 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- Fingerprint access listed for this model
- Passcode access listed for this model
- RF card access listed for this model
- Mechanical key access listed for this model
- Sample available for testing and evaluation
Suitable Applications
- Apartment
- Office
- Residential door project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)

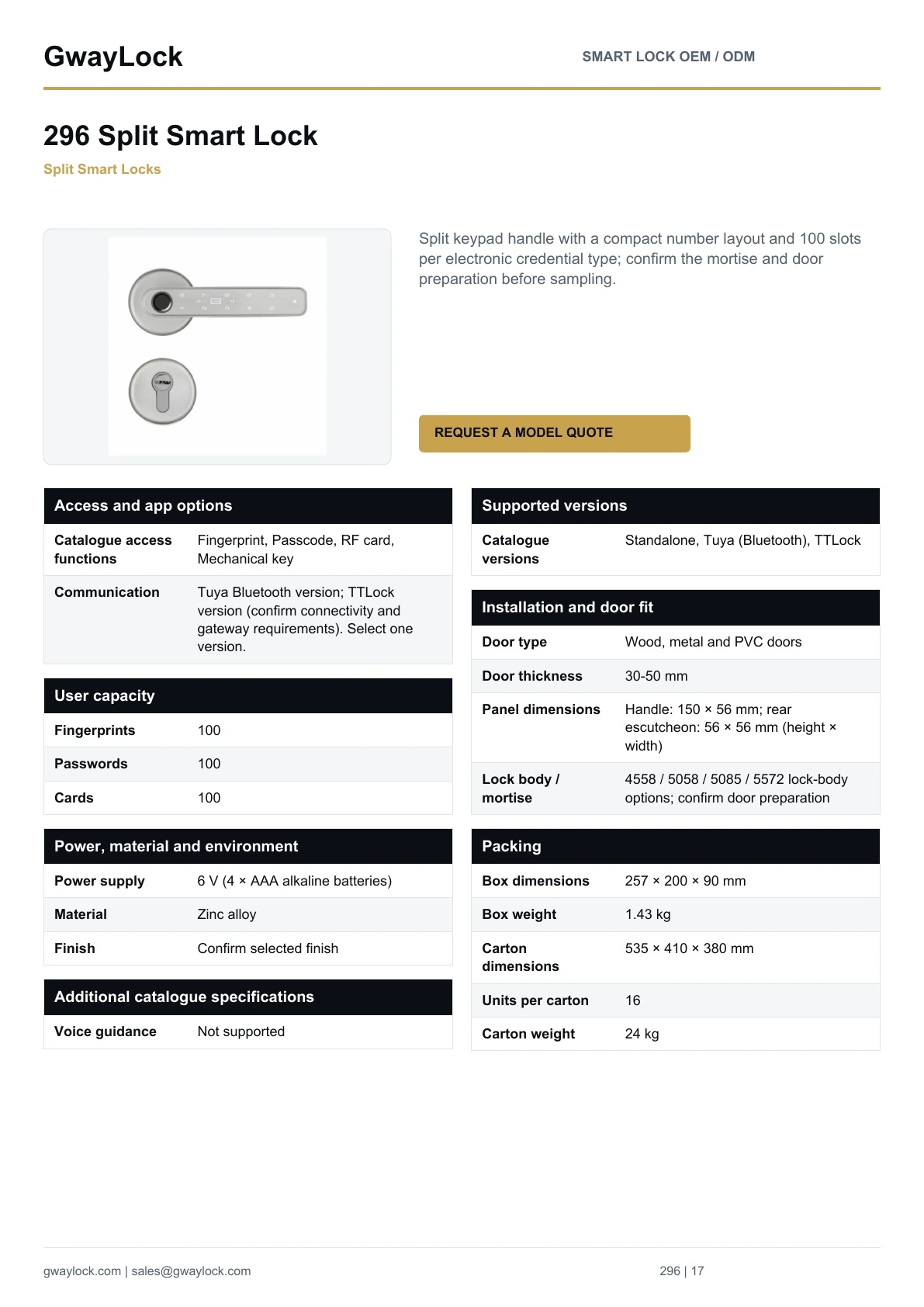

Catalogue specifications
296 model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | 296 |
|---|---|
| Product type | Split |
| Catalogue access functions | Fingerprint, Passcode, RF card, Mechanical key |
| App option | Standalone / Tuya (Bluetooth) / TTLock. Select one configuration; availability must be confirmed. |
| Communication | Tuya Bluetooth version; TTLock version (confirm connectivity and gateway requirements). Select one version. |
| App versions | Standalone, Tuya, TTLock |
|---|---|
| Catalogue versions | Standalone, Tuya (Bluetooth), TTLock |
| Fingerprints | 100 |
|---|---|
| Passwords | 100 |
| Cards | 100 |
| Power supply | 6 V (4 × AAA alkaline batteries) |
|---|---|
| Material | Zinc alloy |
| Finish | Confirm selected finish |
| Door type | Wood, metal and PVC doors |
|---|---|
| Door thickness | 30–50 mm |

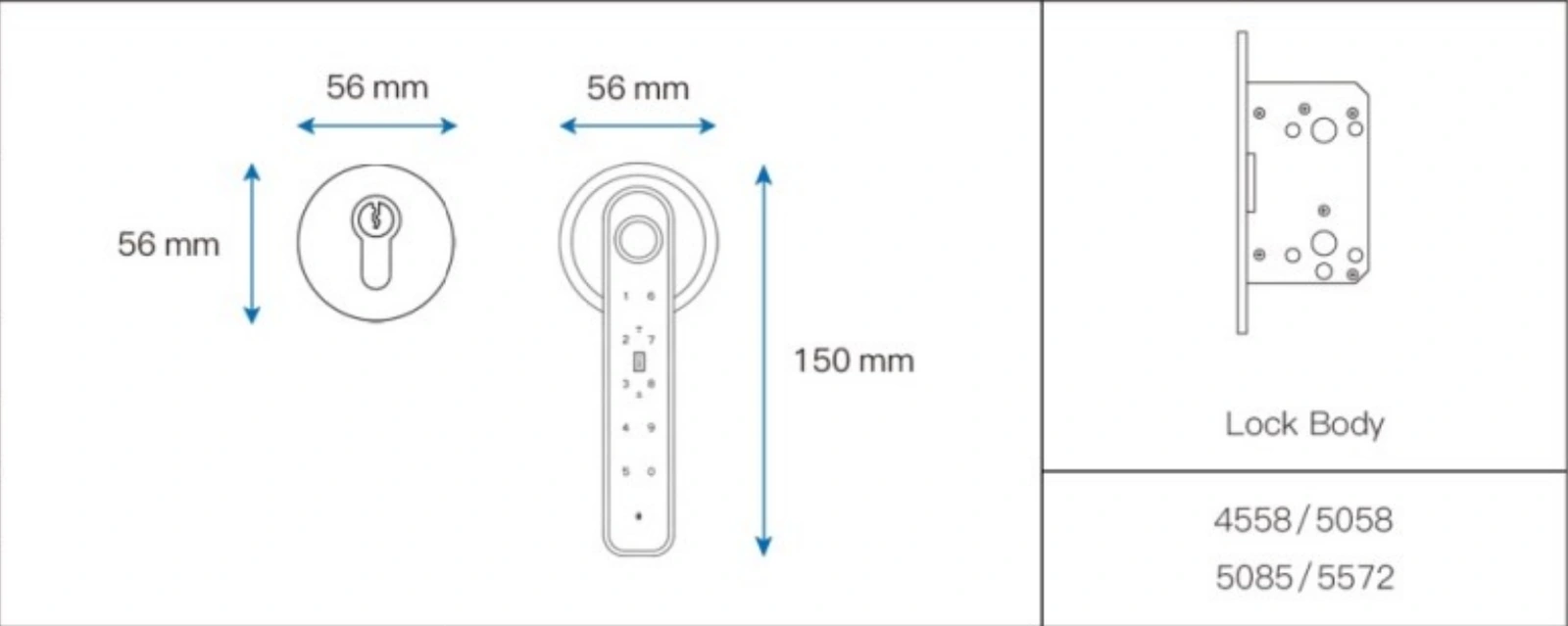

| Panel dimensions | Handle: 150 × 56 mm; rear escutcheon: 56 × 56 mm (height × width) |
| Lock body / mortise | 4558 / 5058 / 5085 / 5572 lock-body options; confirm door preparation |
| Voice guidance | Not supported |
|---|
| Box dimensions | 257 × 200 × 90 mm |
|---|---|
| Box weight | 1.43 kg |
| Carton dimensions | 535 × 410 × 380 mm |
| Units per carton | 16 |
| Carton weight | 24 kg |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which 296 configuration should I request?
The source lists Standalone, Tuya (Bluetooth), TTLock. These are version choices; confirm the exact access, app and network configuration for the sample.
What should I confirm before ordering 296?
Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 30–50 mm; evaluate a sample on the intended door before a bulk order.
