196 Handle Smart Lock OEM Supply

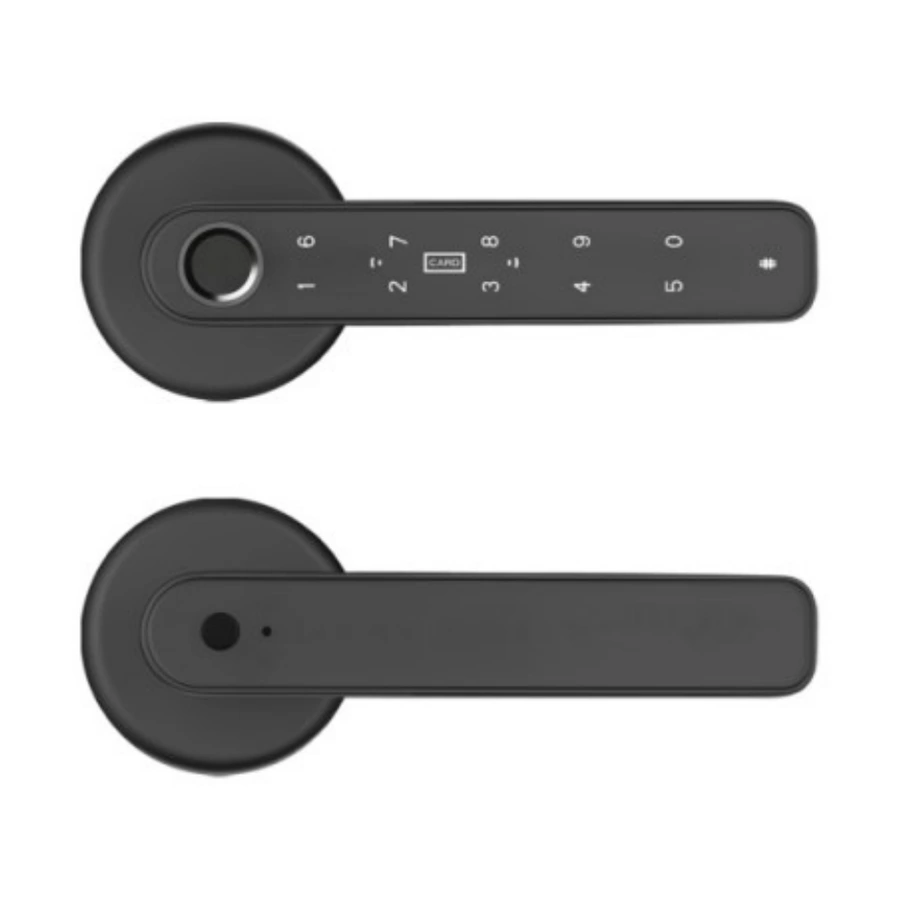

Name: 196 Handle Smart Lock
Brand: GwayLock

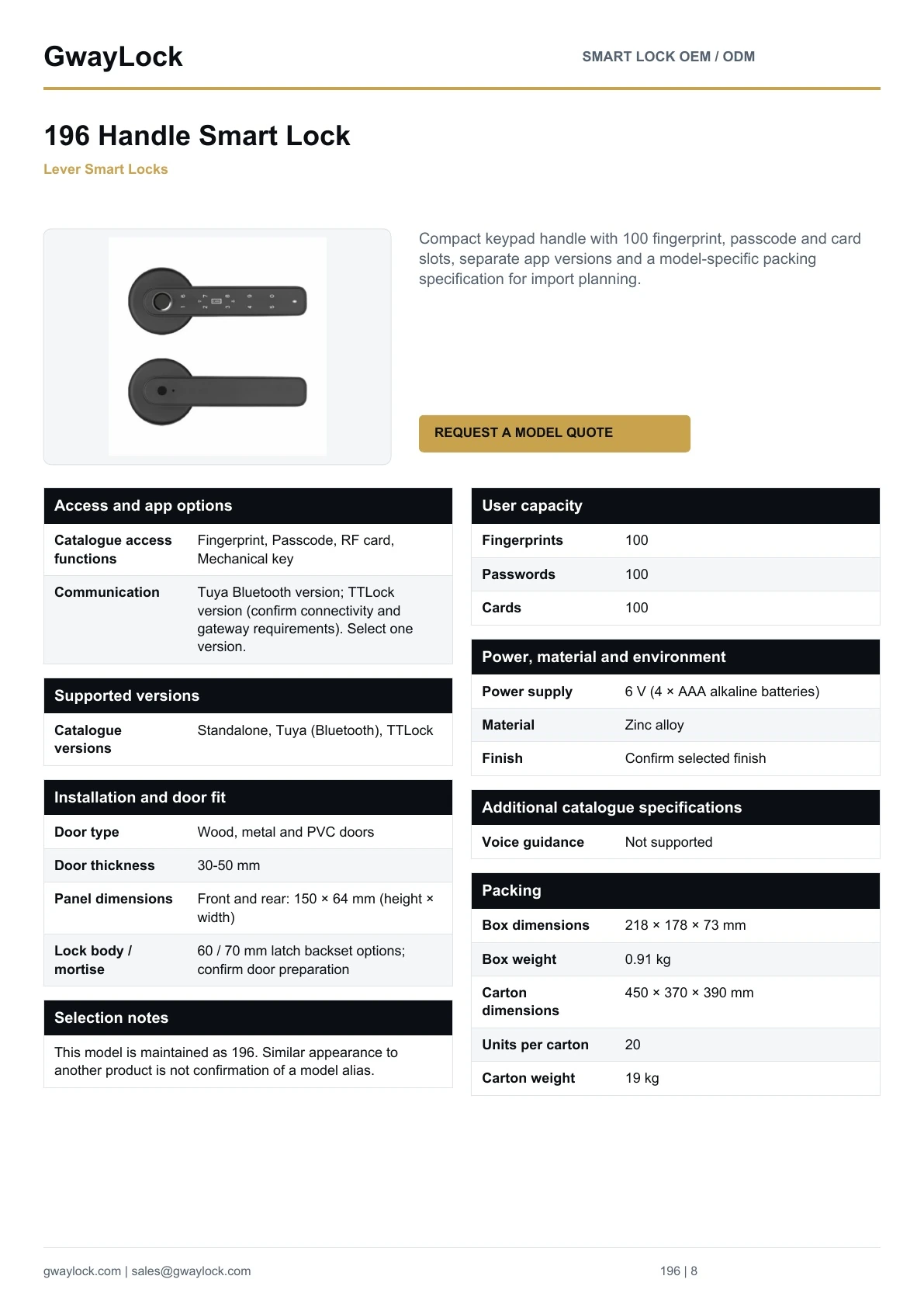

Catalogue specifications

196 model specifications

Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.

Access and app options
Model	196
Product type	Handle
Catalogue access functions	Fingerprint, Passcode, RF card, Mechanical key
App option	Standalone / Tuya (Bluetooth) / TTLock. Select one configuration; availability must be confirmed.
Communication	Tuya Bluetooth version; TTLock version (confirm connectivity and gateway requirements). Select one version.

Supported versions
App versions	Standalone, Tuya, TTLock
Catalogue versions	Standalone, Tuya (Bluetooth), TTLock

User capacity
Fingerprints	100
Passwords	100
Cards	100

Power, material and environment
Power supply	6 V (4 × AAA alkaline batteries)
Material	Zinc alloy
Finish	Confirm selected finish

Installation and door fit
Door type	Wood, metal and PVC doors
Door thickness	30–50 mm

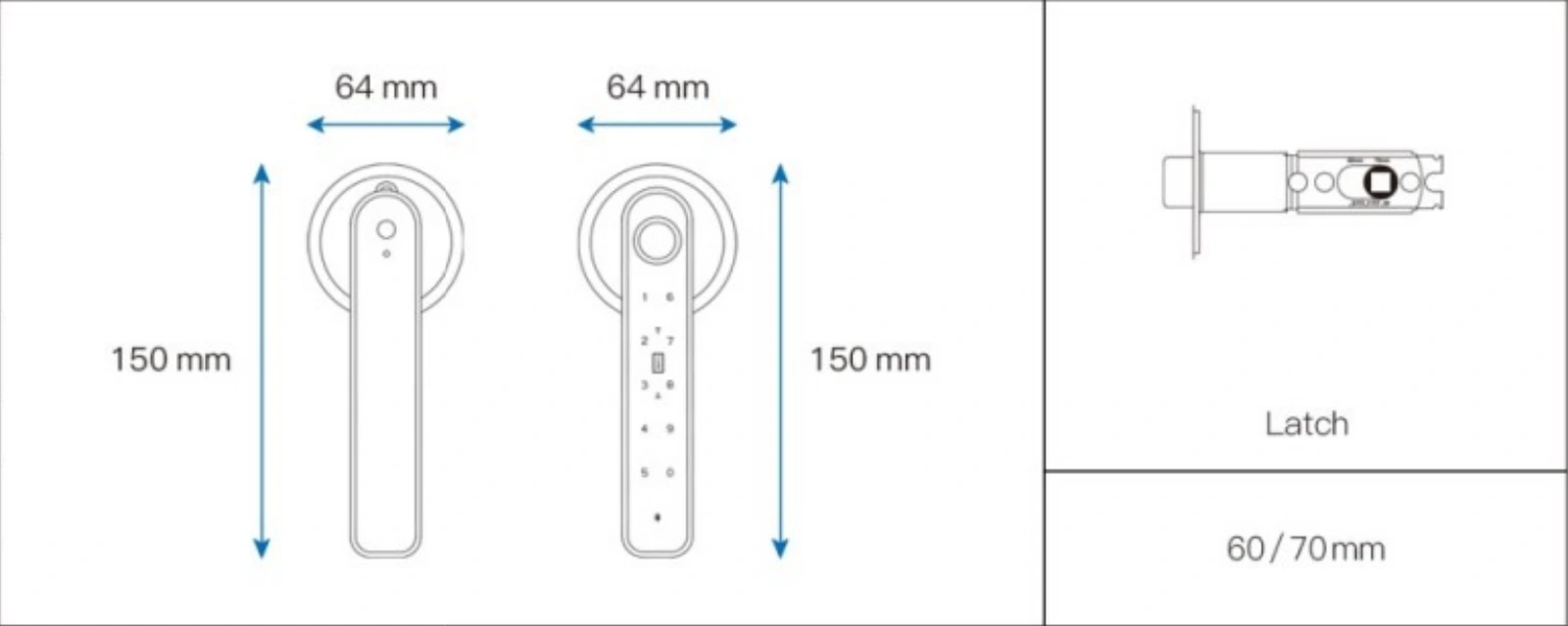

Panel dimensions	Front and rear: 150 × 64 mm (height × width)
Lock body / mortise	60 / 70 mm latch backset options; confirm door preparation

Additional catalogue specifications
Voice guidance	Not supported

Packing
Box dimensions	218 × 178 × 73 mm
Box weight	0.91 kg
Carton dimensions	450 × 370 × 390 mm
Units per carton	20
Carton weight	19 kg

Procurement
Certification	CE / FCC / RoHS available depending on selected model.
MOQ	Varies by model and customization
Lead time	Sample and bulk lead time confirmed by order details

OEM/ODM Support

Build this model for your brand or project channel

GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.

Logo and private label packaging

Model-specific app and wireless configuration

Sample testing before bulk order

Export documents and QC support

FAQ

Which 196 configuration should I request?

The source lists Standalone, Tuya (Bluetooth), TTLock. These are version choices; confirm the exact access, app and network configuration for the sample.

What should I confirm before ordering 196?

Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 30–50 mm; evaluate a sample on the intended door before a bulk order.
