H-05 catalogue reference
H-05 · Display & Camera Smart Locks

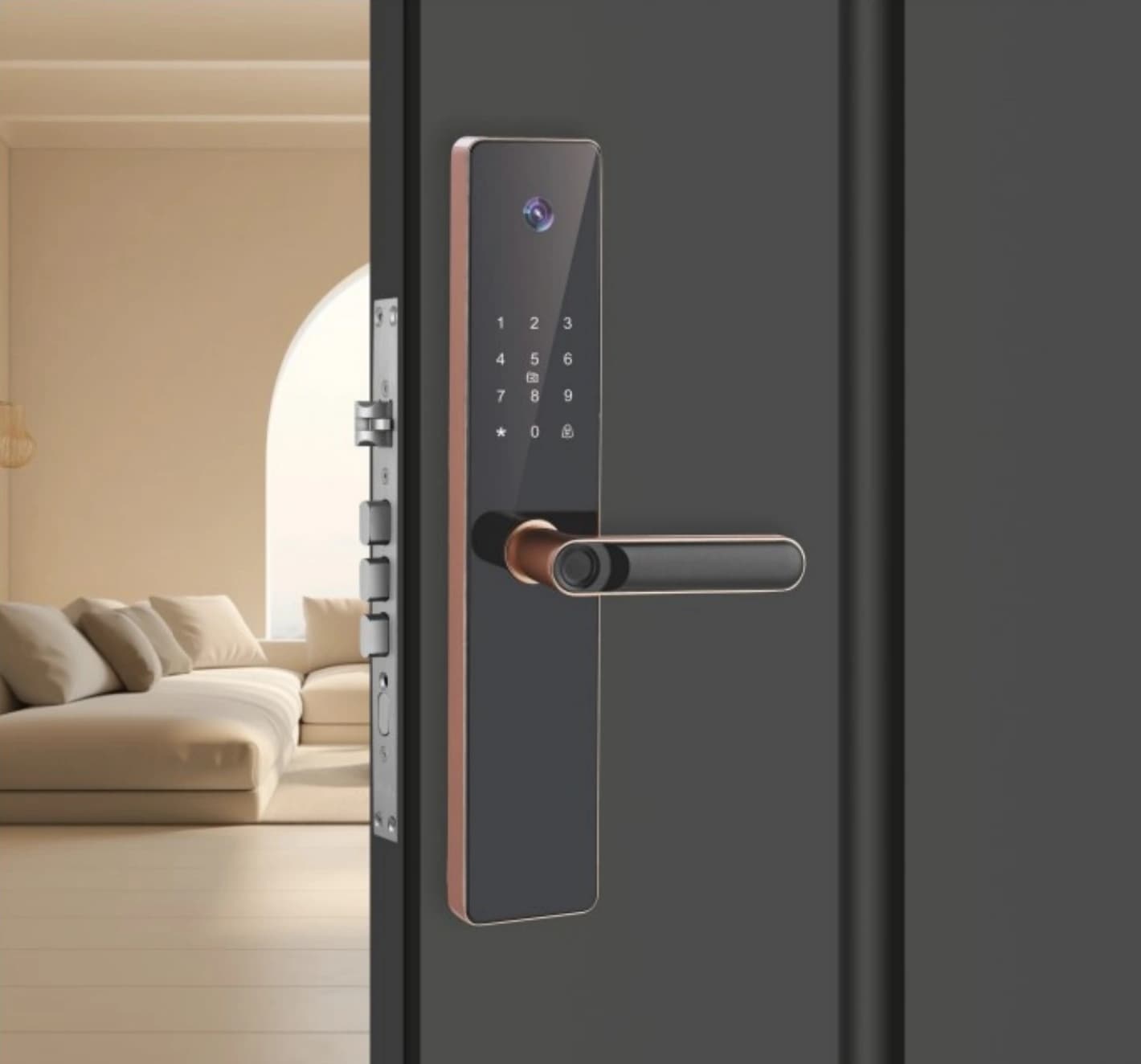

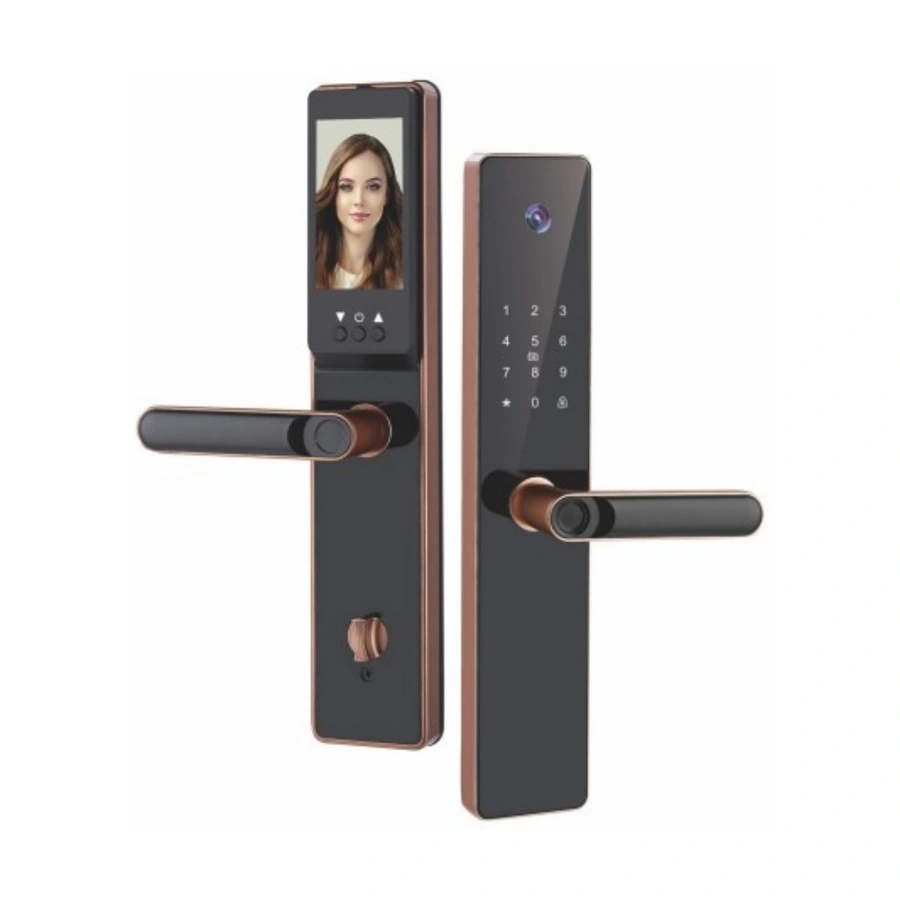

H-05 Lever Smart Lock
Aluminum lever model with a 390 mm panel and alkaline dry-battery power; basic and camera configurations provide different project selections.
Catalogue access
Fingerprint, Passcode, RF card
App option
Basic configuration / Camera configuration / Tuya (Wi-Fi; confirm configuration). Select one configuration; availability must be confirmed.
Power
Alkaline dry batteries (size and quantity to be confirmed)
Door thickness
40–120 mm
Specifications describe the catalogue configuration. App, wireless and optional functions must be confirmed for the selected version before sample or bulk orders.
Key Features
- Fingerprint access listed for this model
- Passcode access listed for this model
- RF card access listed for this model
- Mechanical key access listed for this model
- Tempered-glass touch panel
- Dual verification configuration
- USB emergency power
- Sample available for testing and evaluation
Suitable Applications
- Apartment
- Office
- Residential door project
OEM/ODM Options
- Logo
- Finish
- Packaging (confirm model and order requirements)

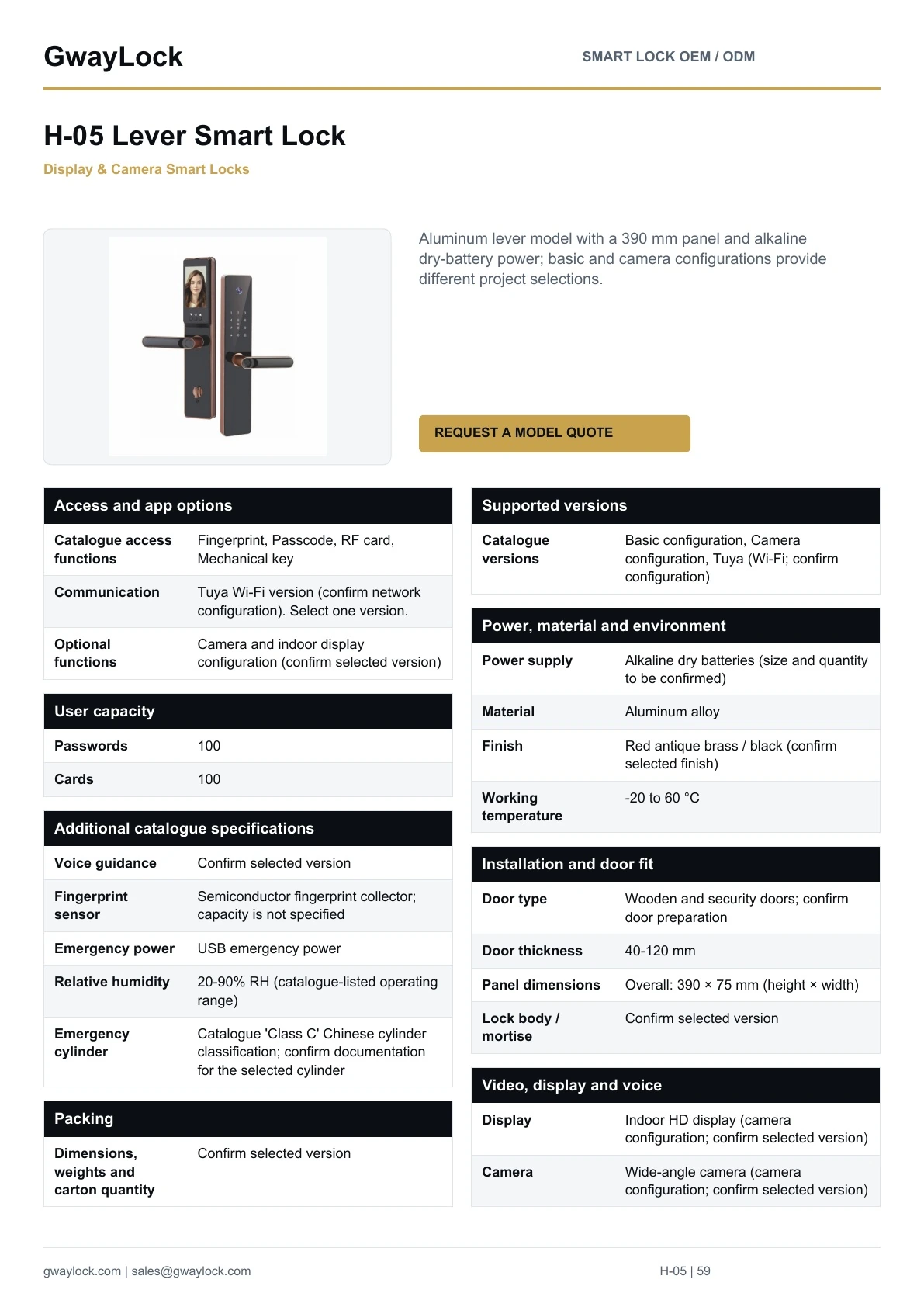

Catalogue specifications
H-05 model specifications
Review the source catalogue specifications below. Confirm the selected version, optional functions, door preparation and sample performance with GwayLock before ordering.
| Model | H-05 |
|---|---|
| Product type | Lever |
| Catalogue access functions | Fingerprint, Passcode, RF card, Mechanical key |
| App option | Basic configuration / Camera configuration / Tuya (Wi-Fi; confirm configuration). Select one configuration; availability must be confirmed. |
| Communication | Tuya Wi-Fi version (confirm network configuration). Select one version. |
| Optional functions | Camera and indoor display configuration (confirm selected version) |
| App versions | Tuya |
|---|---|
| Catalogue versions | Basic configuration, Camera configuration, Tuya (Wi-Fi; confirm configuration) |
| Passwords | 100 |
|---|---|
| Cards | 100 |
| Power supply | Alkaline dry batteries (size and quantity to be confirmed) |
|---|---|
| Material | Aluminum alloy |
| Finish | Red antique brass / black (confirm selected finish) |
| Working temperature | −20 to 60 °C |
| Door type | Wooden and security doors; confirm door preparation |
|---|---|
| Door thickness | 40–120 mm |
| Panel dimensions | Overall: 390 × 75 mm (height × width) |
| Lock body / mortise | Confirm selected version |
| Display | Indoor HD display (camera configuration; confirm selected version) |
|---|---|
| Camera | Wide-angle camera (camera configuration; confirm selected version) |
| Voice guidance | Confirm selected version |
|---|---|
| Fingerprint sensor | Semiconductor fingerprint collector; capacity is not specified |
| Emergency power | USB emergency power |
| Relative humidity | 20–90% RH (catalogue-listed operating range) |
| Emergency cylinder | Catalogue 'Class C' Chinese cylinder classification; confirm documentation for the selected cylinder |
| Box dimensions | Confirm selected version |
|---|---|
| Box weight | Confirm selected version |
| Carton dimensions | Confirm selected version |
| Units per carton | Confirm selected version |
| Carton weight | Confirm selected version |
| Certification | CE / FCC / RoHS available depending on selected model. |
|---|---|
| MOQ | Varies by model and customization |
| Lead time | Sample and bulk lead time confirmed by order details |
OEM/ODM Support
Build this model for your brand or project channel
GwayLock can discuss logo, packaging, app option, function selection and sample approval based on your sales channel and target market.
FAQ
Which H-05 configuration should I request?
The source lists Basic configuration, Camera configuration, Tuya (Wi-Fi; confirm configuration). These are version choices; confirm the exact access, app and network configuration for the sample.
What should I confirm before ordering H-05?
Confirm door construction, thickness, handing, lock body, mounting preparation, finish and packing. The source door specification is 40–120 mm; evaluate a sample on the intended door before a bulk order.
